Automated shades can reduce HVAC energy use by up to 39%, making them a smart way to save on heating and cooling costs. These systems block solar heat in summer, trap warmth in winter, and adjust in real-time based on sunlight, temperature, and occupancy. A study at Chicago’s Willis Tower showed energy savings of 25% year-round, with users preferring automated systems over manual blinds.
Here’s why they work:
- Energy Savings: Cut cooling needs by up to 35% in summer and heating demands by 25% in winter.
- Smart Integration: Sync with HVAC systems and thermostats for better energy management.
- Comfort: Maintain stable indoor temperatures, reduce glare, and protect interiors from UV damage.
Automated Shades Save Energy Costs
sbb-itb-034f8e1
How Automated Shades Work
Automated shading systems rely on three key components: sensors, motors, and a control hub. Sensors measure factors like exterior solar irradiance (in W/m²), indoor temperature, occupancy, and daylight levels. When solar irradiance exceeds 400 W/m², the sensors notify the control hub to take action.
The control hub – whether it’s a Building Management System (BMS) or a Matter-enabled smart home platform – analyzes this data using algorithms such as "sun-tracking control." This allows it to monitor the sun’s angle throughout the day. Commands are then sent to motorized actuators via communication protocols like Thread, Zigbee, or Z-Wave. These motors adjust the shades by raising, lowering, or tilting them, all while providing feedback on their position, such as how open or closed they are.
Main Components of Automated Shading Systems
| Component Type | Specific Examples | Primary Function |
|---|---|---|
| Sensors | Solar Irradiance, PIR Occupancy, Interior Temp | Gathers environmental and usage data |
| Actuators | Motorized Rollers, Venetian Tilters | Adjusts shade position or slat angle |
| Controllers | Smart Hubs, BMS, Matter-enabled Thermostats | Processes data and integrates with HVAC |
| Connectivity | Thread, Zigbee, Z-Wave, Wi-Fi | Enables communication between system components |
These components work together to respond to environmental changes in real time. To avoid excessive motor wear from constant adjustments, modern systems use hysteresis – a buffer that requires a notable change in conditions before triggering movement. For instance, the system might wait until the temperature rises 1–2°F above a set threshold and stays there for 15–20 minutes before adjusting the shades. This reduces unnecessary movements caused by small fluctuations in light or temperature, extending the lifespan of the motors.
How Shades Adjust to Environmental Conditions
Using input from multiple sensors, these systems fine-tune shade positions to maintain comfort and efficiency. Imagine a sunny but chilly winter morning: the system uses solar irradiance and indoor temperature data to keep shades open, allowing beneficial solar heat to warm the room. On the other hand, during a hot summer afternoon, if the room temperature exceeds 78°F and occupancy sensors detect people, the shades lower automatically to block heat, helping the HVAC system work less.
Light sensors also play a role. On overcast days, shades may open to maximize natural daylight, cutting down on artificial lighting costs. If occupancy sensors detect an empty room, the shades close to shield furniture from UV damage and signal the thermostat to adjust temperature settings. This coordinated approach balances energy savings with comfort, protecting interiors from extreme sunlight while improving HVAC efficiency by syncing with climate controls.
Connecting Automated Shades to HVAC Systems
Integration Steps
Once you understand how automated shades work, the next step is connecting them to HVAC systems to boost energy efficiency. This integration typically involves three components: sensors, actuators, and an integration hub [3].
Start by installing solar irradiance sensors outside, about 1–3 feet from the window, to measure incoming sunlight (in W/m²). Pair these with indoor temperature sensors placed at head height for accurate readings of the room’s conditioned space. Add occupancy sensors to prevent unnecessary adjustments when rooms are empty [3].
Next, choose a central integration platform. For larger commercial spaces, a Building Management System (BMS) is ideal. For smaller setups, consider smart home hubs like Home Assistant, Samsung SmartThings, or Apple HomeKit [3]. Modern systems often rely on communication standards like Matter, Thread, Zigbee, or Z-Wave for consistent, low-latency performance. In commercial buildings, hardwired solutions such as the Somfy Digital Network (SDN) use CAT5 cables to create a reliable network that connects motors and controllers over long distances [8].
When programming the system, use a "shade-first" approach to block solar heat before it impacts indoor temperatures. Coordinate inputs from multiple sensors to avoid false triggers, and include a 1–2°F hysteresis along with minimum timers (15 minutes) to prevent frequent adjustments [3]. This setup not only improves system performance but also leads to measurable energy savings.
Energy Savings from System Integration
When automated shades and HVAC systems work together, the results are impressive. Take, for instance, a 2,500 ft² home with 20 feet of south-facing windows. A sensor-driven system closed the shades to 70% when solar irradiance hit 350 W/m² and adjusted the cooling setpoint by 2°F. Over a 90-day period, this setup cut cooling-related energy use by 12% during peak summer months [3].
In another case, a residential project monitored from June to September saw daily HVAC runtime drop from 8.1 hours to 5.3 hours – a 34% reduction. This translated into monthly cooling savings of around $65 [5].
The secret lies in coordinated setpoint adjustments. When shades are fully engaged, raising the thermostat’s cooling target by 1–2°F can significantly enhance efficiency without compromising comfort. Research from the Lawrence Berkeley National Laboratory shows that integrating automated shades with lighting controls can yield annual energy savings of up to 30% in managed zones [6]. For sunny areas like Texas, these savings mean lower utility bills and less wear on HVAC systems. This makes integration a smart choice for schools, hospitals, and municipal buildings served by E3 Design-Build Contractor.
Seasonal HVAC Efficiency Improvements

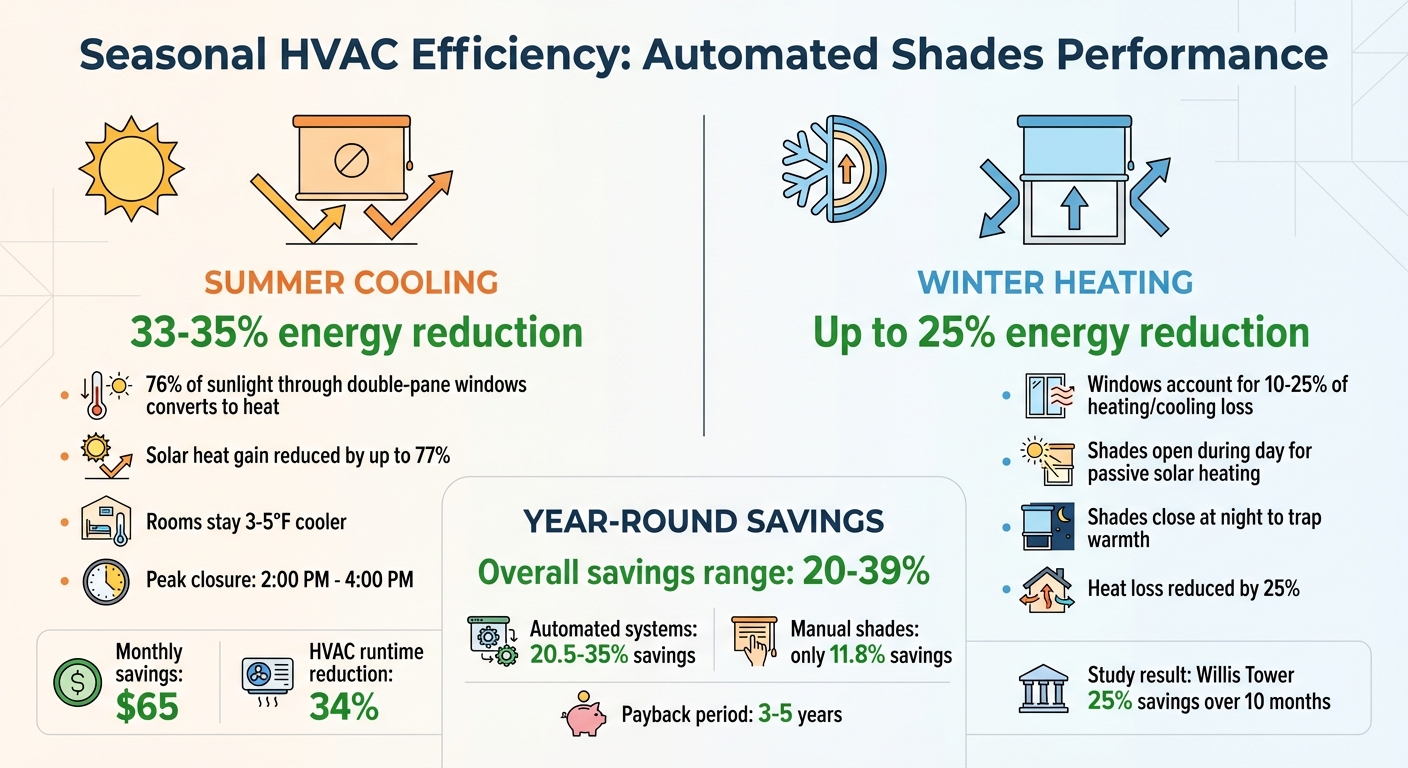

Automated Shades HVAC Energy Savings: Summer vs Winter Performance Comparison
Automated shades can adjust throughout the year to help reduce HVAC loads and maintain indoor comfort. Let’s take a closer look at how these systems work during summer and winter.
Summer: Reducing Cooling Loads
During the summer, automated shades are programmed to block solar radiation before it turns into heat. Did you know that about 76% of sunlight hitting double-pane windows is converted into heat [10]? By using shades strategically, solar heat gain can be cut by as much as 77% [4].
These systems often close the shades during peak sunlight hours – typically between 2:00 PM and 4:00 PM – or based on the direction of the windows. For example, shades on east-facing windows might close in the morning, while west-facing ones are prioritized in the afternoon [9]. This creates a thermal barrier, keeping indoor spaces 3°F to 5°F cooler than rooms without window treatments [9].
A real-world example comes from a residential project monitored by SenseBlinds between June and September 2026. The data showed a drop in HVAC energy use by 33% in June, 34% in July, and 35% in August. On average, daily HVAC runtime decreased by 34%, saving homeowners about $65 per month on cooling costs [5]. Shades with reflective or white-plastic backings also reflect sunlight back outside, further improving efficiency [12].
Winter: Preventing Heat Loss
In the winter, automated shades act as an extra layer of insulation, trapping warm air and reducing heat loss. Since windows can account for 10% to 25% of a building’s total heating and cooling energy loss [13], this added insulation makes a big difference.
Smart systems adjust shades to open during the day when sunlight is detected, allowing passive solar heating to warm the space. As temperatures drop in the evening, the shades close automatically to create a thermal barrier, cutting heat loss by up to 25% [7].
Research backs up these benefits. In May 2023, a team led by Assistant Professor Mohammad Heidarinejad at the Illinois Institute of Technology studied Parata‘s automated insulating shades at Chicago’s Willis Tower. Over 10 months, the shades reduced energy use by 25% during both heating and cooling seasons [11]. Heidarinejad explained:
"Automated insulating window shades can cut energy consumption by approximately one-quarter and may recoup the cost of installation within three to five years." [11]
The table below highlights these seasonal HVAC savings:
Seasonal HVAC Savings Comparison
| Season | How It Works | Savings Percentage | HVAC Impact |
|---|---|---|---|
| Summer | Blocks solar heat gain during peak hours [5]. | 33%–35% [5] | Reduces cooling loads and AC runtime [5]. |
| Winter | Adds insulation by harvesting passive solar heat during the day and limiting overnight heat loss [7]. | Up to 25% [7] | Lowers heating demand and HVAC cycling [7]. |
| Year-Round | Dynamically adjusts based on weather and sun position [1]. | 20%–39% [1] | Optimizes HVAC operation and reduces wear [1]. |
These savings showcase the power of automation. While manually operated shades can cut energy use by 11.8%, automated systems deliver savings of 20.5% to 35%, depending on the building type and season [1]. When paired with HVAC controls, these strategies maximize energy efficiency.
For large public facilities like schools, hospitals, and municipal buildings in Texas, these savings can lead to lower utility bills and longer HVAC equipment life. E3 Design-Build Contractor, a Texas-based company specializing in energy-efficient solutions, integrates automated shading with advanced HVAC technologies to help clients achieve these benefits.
Advanced Automation Features for Better Efficiency
Advanced automation takes HVAC efficiency to the next level by fine-tuning how shades respond to changing conditions.
Time-Based Scheduling
Programming shades based on time can significantly reduce HVAC energy use. For example, during summer, closing shades during peak solar hours – typically between 1:00 PM and 4:00 PM – helps block heat from entering. In winter, opening shades after sunrise allows for passive solar heating, while closing them at sunset helps retain warmth [7][13]. Adjusting schedules based on window orientation adds another layer of efficiency: west-facing windows benefit from earlier closures to combat intense afternoon sun, while south-facing windows maximize winter sunlight [5][7].
A four-month study by SenseBlinds demonstrated the impact of these techniques, showing a 34% reduction in daily HVAC runtime, which translated to savings of about $65 per month [5]. Beyond energy savings, automated schedules improve comfort by cutting drowsiness by 56%, reducing eyestrain by 51%, and preventing overheating or screen glare in rooms [2][7]. This foundation of scheduled operations is further enhanced by advanced sun-tracking technology.
Sun-Tracking Technology
Sun-tracking systems take automation a step further by using sun-position algorithms to predict when sunlight will hit windows. Shades are pre-positioned 10 to 20 minutes before peak sunlight exposure to block heat gain [13]. These systems rely on illuminance sensors (measured in lux) and indoor temperature sensors to monitor conditions, with a buffer range of 200–500 lux to prevent frequent adjustments during cloudy periods [13].
For instance, a homeowner with a 2,400 sq. ft. modern house and 420 sq. ft. of south-facing glass installed motorized shades integrated with a Home Assistant hub using sun-tracking logic. Over a year, this setup cut winter heating consumption by 18% and reduced summer peak AC runtime by 22%, allowing the homeowner to delay a $6,000 HVAC upgrade [13]. These dynamic systems set the stage for seamless integration with smart thermostats.
Smart Thermostat Integration
Combining automated shades with smart thermostats creates a powerful energy management system. Thermostats can trigger shades to lower during extended cooling cycles, reducing solar heat gain and lightening the HVAC system’s workload [13]. In colder months, shades can be programmed to close when the thermostat reaches its night setback temperature, minimizing heat loss overnight [13].
Thanks to modern standards like Matter and Thread, shades can now communicate with thermostats from various manufacturers without compatibility issues [13][14]. Motionblinds emphasizes the benefits:
"Properly automated, [shades] improve a building’s energy profile… they support lower HVAC loads, reduce peak demand, and enable more responsive building operation" [14].
For facilities in Texas, where cooling demands can be extreme, these integrations offer noticeable energy savings and extend HVAC system life. Partnering with experts like E3 Design-Build Contractor, a Texas-based firm specializing in energy-efficient solutions, can help maximize these benefits (https://e3es.com).
Measuring Energy Savings and Comfort Improvements
Calculating HVAC Energy Reductions
To measure HVAC energy reductions, start by gathering baseline data. Record details like kWh usage, peak indoor temperatures during high-demand hours, and the amount of sunlight entering through windows. Then, compare this data between rooms equipped with automated shades and those without. Smart thermostats can also help by tracking hourly HVAC usage, making it easier to spot patterns and identify runtime reductions [5].
A practical approach is to focus on "test" rooms with automated shades alongside "control" rooms that lack them. Pay close attention to south- and west-facing windows, as these areas typically experience the most heat gain [5]. For reliable results, collect data over at least four months and use weather-normalized techniques to account for seasonal changes [1]. These metrics not only demonstrate energy savings but also provide insights into how these systems improve overall comfort.
Improving Indoor Comfort
Automated shades do more than cut energy costs – they also enhance the comfort of indoor spaces. For instance, smart day-night shades can lower peak room temperatures by over 3°C, compared to just 1.5°C achieved with traditional manual blinds. This helps reduce uncomfortable temperature fluctuations and eases the load on HVAC systems [5].
In addition, automated shades are designed to maintain an optimal balance between reducing glare and preserving natural light. Research from Lawrence Berkeley National Laboratory shows that combining shading systems with lighting controls can result in up to 30% annual energy savings in managed zones, all while ensuring consistent workplane lighting [6]. To get a comprehensive view of indoor comfort, facility managers should incorporate sensor data and occupant feedback into a centralized Building Management System. This data – covering shading positions, HVAC usage, temperature, and lighting levels – can help optimize energy usage while maintaining a comfortable environment [4]. Integrating these systems highlights their role in creating energy-efficient and comfortable buildings.
Conclusion
Automated shades can lower HVAC energy usage by 25% to 39% while maintaining a comfortable indoor environment. For instance, a study conducted in May 2023 at Chicago’s Willis Tower revealed that automated shades reduced energy consumption by 25% during both heating and cooling seasons. Notably, 80% of building occupants expressed a preference for the automated system over traditional blinds [15]. These systems, when integrated with Building Management Systems and thermostats, adjust in real-time to environmental conditions.
By working in tandem with HVAC systems, automated shades optimize energy use – capturing solar warmth on cold winter days and blocking excessive heat on hot summer afternoons – all without requiring manual operation. This synergy not only saves energy but also enhances comfort and minimizes maintenance demands.
The benefits extend beyond energy savings. Automated shades eliminate the need for manual adjustments, reduce upkeep, and promote occupant well-being. Studies have shown that exposure to natural light can lead to improved student performance, increased workplace productivity, and quicker recovery times for patients [4].
As Assistant Professor Mohammad Heidarinejad from the Illinois Institute of Technology explains:
"If you’re designing a new building, you have a lot of freedom to look at new technologies that save on energy consumption, but for existing buildings, you have limited options" [15].
Automated shades address this challenge by delivering meaningful energy savings without requiring extensive structural changes. In commercial applications, they typically offer a payback period of 3 to 5 years [15].
These systems lower costs, enhance comfort, and lessen environmental impact, making them an essential component of any energy-efficient facility strategy. For organizations aiming to integrate automated shades with high-efficiency HVAC systems, consulting experts like E3 Design-Build Contractor (https://e3es.com) can provide customized solutions tailored to specific needs.
FAQs
Will automated shades work with my existing HVAC controls?
Automated shades can seamlessly work with your current HVAC system when linked to a building management system or set up with remote controls. This integration allows for better energy efficiency and ensures occupant comfort by balancing shading and temperature control effectively.
What sensors do automated shades need to save energy?
Automated shades rely on sensors such as occupancy sensors (which use passive infrared or ultrasonic technology) and environmental sensors (for light and temperature). These sensors work together to adjust the shades based on factors like whether someone is in the room, the amount of light, and the temperature. This setup helps improve energy efficiency while maintaining a comfortable indoor environment.
How do automated shades avoid constant moving?
Automated shades reduce the need for constant manual adjustments by relying on smart scheduling and advanced control systems. They automatically shift positions based on factors like weather changes and the sun’s movement throughout the day. This setup not only enhances energy efficiency but also keeps indoor spaces comfortable, all without requiring ongoing input from users.
