Building Automation Systems (BAS) help identify unusual energy usage patterns, such as spikes, drops, or deviations, by using real-time data from HVAC, lighting, and electrical systems. These anomalies often result from equipment failures, incorrect settings, or human error. BAS works through three main steps:
- Data Collection: Sensors monitor energy use every 5–15 minutes or when thresholds are crossed. Data is refined to highlight key patterns and account for factors like weather and occupancy.
- Detection: Statistical thresholds, machine learning models, and ensemble methods flag anomalies. For instance, deviations from predicted energy use are identified with high accuracy.
- Scoring and Alerts: Anomalies are prioritized based on severity using scoring systems. Alerts are then generated with clear, actionable insights for maintenance teams.
BAS can reduce energy waste by 8–12% and prevent up to 30% of energy loss from system inefficiencies. Proper setup, monitoring, and regular adjustments are key to maximizing its benefits.

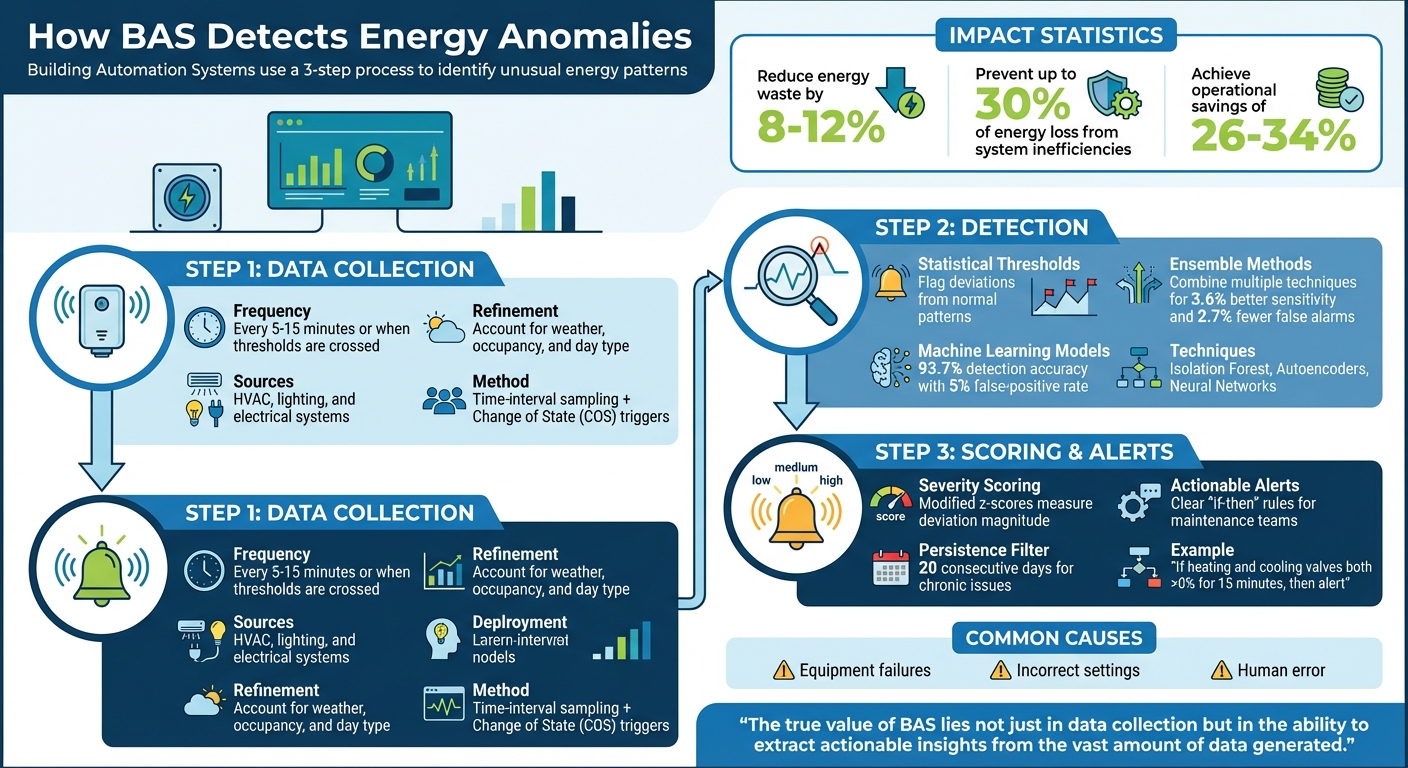

How Building Automation Systems Detect Energy Anomalies in 3 Steps
SBA 479: Role of AI and Machine Learning in HVAC Energy Optimization
sbb-itb-034f8e1
Main Components of BAS for Energy Monitoring
Building Automation System (BAS) architecture consists of four layers – Input/Output, Field Controller, Supervisory, and Server/Application. Together, these layers monitor and manage energy use, achieving operational savings of 26–34% [13]. By working in harmony, these components allow for precise detection of energy anomalies.
Sensors and IoT Devices
Sensors are the backbone of BAS, collecting real-time data about a building’s environment. Analog sensors track variables like temperature, humidity, and pressure, while digital sensors handle simpler tasks such as identifying on/off states of equipment [15].
The shift from older pneumatic systems to modern Direct Digital Control (DDC) sensors has significantly improved accuracy. Instead of grappling with calibration errors common in legacy systems, operators can now use straightforward software "offsets" to maintain precision [11]. For example, occupancy sensors can cut energy use by up to 40% by fine-tuning ventilation and lighting based on actual usage [15]. When connected to a Building Management System, these systems typically account for 40% of a building’s energy consumption – or 70% when lighting is included [15]. This level of integration is essential for real-time anomaly detection.
Energy Management Software
Energy management software processes sensor data across four levels of analysis.
- Descriptive analytics provide visualizations of historical trends and typical patterns.
- Diagnostic tools uncover the reasons behind energy spikes by finding correlations between variables.
- Predictive analytics use machine learning to anticipate future energy demands based on factors like historical data and weather conditions.
- Prescriptive features suggest specific actions, such as adjusting schedules or replacing components proactively [17].
"The true value of BAS lies not just in data collection but in the ability to extract actionable insights from the vast amount of data generated." – Intelligent Power Today [16]
Fault Detection and Diagnostics (FDD) tools enhance this process by identifying subtle irregularities – like small pressure changes or vibrations – that might go unnoticed with standard monitoring [13][14]. The move from "thick-client" software, which required local installation, to "thin-client" web-based platforms has made these tools more accessible through browsers and mobile devices [11][13]. This accessibility is crucial for real-time anomaly detection and actionable decision-making.
Communication Networks
Reliable communication networks ensure seamless data transfer between sensors, controllers, and software platforms. Protocols such as BACnet, Modbus, and LonWorks enable devices from different vendors to communicate effectively across the system [12][13]. Standard technologies like Ethernet and RS-485, along with wireless options, provide dependable data pathways [11][13].
Adopting open protocols like BACnet or Modbus prevents vendor lock-in and allows systems to scale in the future [13]. Additionally, low-power wireless technologies like Zigbee, Bluetooth Low Energy (BLE), and LoRa are gaining traction for connecting sensors without the need for extensive wiring [15]. This wireless integration not only cuts installation costs but also ensures the high-quality data required for effective anomaly detection. These advancements are pivotal for maintaining reliable, real-time energy monitoring.
How BAS Detects Energy Anomalies
Once sensors and communication systems are set up, the real challenge begins. Building Automation Systems (BAS) follow a structured three-step process to pinpoint unusual energy patterns: data collection and preparation, detection methods, and anomaly scoring and alerts. These steps work together to provide facility managers with precise and actionable insights.
Data Collection and Preparation
BAS gathers energy data using two main techniques. The first is time-interval sampling, which logs measurements every 5–15 minutes to track energy usage. The second, Change of State (COS) triggers, records data only when a specific threshold is crossed or when equipment switches states, like turning on or off [8]. By combining these methods, BAS ensures thorough monitoring without overloading data storage.
Raw sensor data can be overwhelming and repetitive. To streamline this, BAS uses a method called aSAX, which transforms numerical time series data into symbolic strings. This preserves critical patterns while reducing the computational burden [1]. Key features such as mean, variance, trend angles, and entropy are extracted to summarize energy usage patterns [1][10].
Context is crucial for accurate anomaly detection. For example, a spike in heating energy on a cold Monday morning might be normal, but the same spike on a warm Saturday afternoon could signal a problem. BAS integrates external factors like outside air temperature, day type (weekday versus weekend), and occupancy patterns to differentiate between expected variations and genuine issues [2][5]. Even holidays are treated uniquely, modeled as an "eighth day of the week", to avoid false alarms during irregular periods [2].
With this refined dataset, the system moves on to the detection phase.
Detection Methods
Detection methods in BAS translate clean data into meaningful insights. One foundational approach is statistical thresholding, where the system flags anomalies when energy consumption exceeds both an absolute value (e.g., >5 kW) and a relative percentage (e.g., >20%) at the same time [2]. To avoid unnecessary alerts, a minimum duration filter – often set at 15 minutes – is applied [2][8].
Prediction-based methods rely on historical data to forecast expected energy use. Anomalies are flagged when actual consumption deviates significantly from these forecasts [2][3]. For example, a model combining Artificial Neural Networks and Regression Trees achieved a 93.7% success rate in detecting anomalies, with only a 5% false-positive rate [9]. Meanwhile, unsupervised machine learning techniques like Isolation Forest and Autoencoders are particularly useful for identifying new, previously unrecognized patterns [3][18].
"Anomaly detection is a cornerstone of energy efficiency, enabling proactive management and substantial cost savings." – Jana Zazvorkova, Energy Twin [2]
Modern systems often employ ensemble learning, which combines multiple detection methods and uses majority voting to confirm anomalies. This approach has been shown to boost detection sensitivity by 3.6% while reducing false alarms by 2.7%, making it more reliable than single-method systems [3].
Anomaly Scoring and Alerts
Once anomalies are detected, the next step is to assess their severity. Not all anomalies require immediate action, so BAS uses modified z-scores to measure how far an outlier deviates from typical observations [4]. This scoring system helps prioritize responses, ensuring maintenance efforts are focused where they’re most needed.
To filter out short-term noise, persistence-based prioritization is applied. For instance, deviations might need to last for 20 consecutive days before being classified as a chronic issue [5][8]. Systems also use Receiver Operating Characteristics (ROC) curves to fine-tune thresholds, balancing sensitivity with the need to minimize false alarms [3].
Finally, BAS transforms technical data into clear, actionable alerts. Using "if-then" decision rules derived from classification trees, the system generates notifications that are easy for maintenance teams to interpret. For example: "If heating and cooling valves are both >0% for 15 minutes, then alert." [1][8] This straightforward logic allows staff to quickly understand the issue and take corrective action without sifting through raw data trends.
Step-by-Step Guide to Setting Up Anomaly Detection in BAS
Setting up anomaly detection in Building Automation Systems (BAS) involves a structured approach of evaluation, installation, and ongoing monitoring to ensure optimal performance.
Evaluate Your Current Systems
Start by defining clear energy-saving objectives. For example, you might aim to cut utility costs by a specific percentage or improve the efficiency of HVAC and lighting systems. Considering that commercial buildings use nearly 20% of the energy consumed in the United States, even small efficiency gains can lead to noticeable savings [20].
Next, take stock of your current mechanical, electrical, and plumbing (MEP) systems. Review historical data from the past two years to understand trends like system downtime, error rates, and how equipment responds to environmental changes. This baseline data is essential – effective trend analysis and anomaly detection can lower utility consumption by 8% to 12% [8].
Ensure your system supports the necessary BAS protocols (e.g., BACnet, Modbus, LonWorks). Without proper compatibility, sensors won’t communicate effectively with your central software. Check your BACnet object lists to confirm that meters are correctly mapped and that all required data points are available for tracking.
"Regular evaluation of your Building Automation System is crucial for maintaining optimal performance, enhancing energy efficiency, and ensuring the overall comfort of building occupants." – Bret Heyer, BAS Business Development Manager, ColonialWebb [19]
Break down your electrical loads into categories like mechanical, plug, UPS, and lighting, as outlined in standards such as ASHRAE 90.1. This level of sub-metering helps pinpoint areas of energy waste. Additionally, identify "day types" (e.g., weekdays versus weekends) to account for normal operational differences in your anomaly detection setup.
Once you have a clear baseline and defined goals, move on to installing and configuring the necessary BAS components.
Install and Set Up BAS Components
Start by establishing consistent naming standards for all points and systems. Without them, troubleshooting and analyzing data become far more complicated [21].
Next, configure sensor ranges to ensure accurate readings. For instance, map a 0–10 VDC signal to represent 0–100% relative humidity [22]. Set up trends using either time intervals (e.g., recording zone temperature every 5–15 minutes) or Change of Value (COV), which logs data only when a specific threshold is exceeded [21][8]. COV trending is particularly helpful for saving memory while still capturing detailed data during rapid changes.
When programming your system, include deadbands – small buffers that prevent systems from rapidly switching states due to minor fluctuations [22]. Assign severity levels (e.g., Critical, Urgent, Warning) to BAS alarms and link them to maintenance workflows. This ensures anomalies are addressed before they escalate into equipment failures [21][23].
One example of successful integration comes from a 200,000-square-foot office campus. By connecting their Tridium Niagara BAS with their maintenance management system, they cut their average alarm-to-response time from 6.5 hours to just 23 minutes. This proactive approach reduced emergency HVAC calls by 45%, as issues were resolved before occupants noticed them [23]. Allow 2–5 weeks of fine-tuning after initial setup to adjust alarm thresholds and minimize false positives [24].
Monitor and Adjust Performance
Once your system is up and running, continuous monitoring is key to maintaining energy efficiency. Use a combination of absolute value deviations (fixed thresholds) and relative value deviations (percentage-based thresholds) to reduce false positives, especially in buildings of varying sizes [2]. Apply a minimum duration filter, such as "TrueForDuration" logic, to ensure anomalies are flagged only if they persist beyond a set time [2][24].
Set up daily override reports to catch manual settings that haven’t been reset. Studies show that within two years of occupancy, energy usage in a building can increase to 140% of its design intent, often due to forgotten overrides [21]. Automate these reports to help facility managers resolve issues quickly.
Perform regular "reset to zero" checks by commanding heating and cooling valves to 0% and monitoring discharge air temperature. If the discharge air doesn’t align with return air within a few degrees after 15 minutes, there might be a scaling or leakage problem [8]. When comparing current performance with past data, limit your analysis to the previous 30 days of the same "day type" to keep insights relevant to the current season [4].
For instance, a university campus added real-time BAS data to their maintenance work orders, allowing technicians to check zone temperatures and damper positions on mobile devices before arriving on-site. This reduced the time spent investigating comfort complaints from 12 minutes to just 4 minutes per instance. Such adjustments can turn your BAS into an active energy management tool rather than just a passive monitoring system [23].
Conclusion
Key Takeaways
Building Automation Systems (BAS) empower facility managers to tackle energy waste before it impacts operating budgets. By leveraging real-time data from HVAC, lighting, and electrical systems, these platforms can pinpoint anomalies that signal equipment issues, control inconsistencies, or inefficiencies. The result? Smarter energy use. Trend analysis and anomaly detection through BAS can reduce utility consumption by 8% to 12% [8]. On the flip side, poorly performing systems can waste 20% to 30% of a facility’s energy [6].
Taking action starts with evaluating your current systems and establishing baselines. From there, set alarm thresholds that make sense for your facility and ensure alerts are tied into maintenance workflows. Ongoing monitoring is key to maintaining these efficiency improvements over time.
BAS also plays a critical role in predictive maintenance by identifying problems early [25][26]. It can even validate utility bills against actual consumption data, catching errors or discrepancies. For example, BAS data has been used to uncover metering mistakes, ensuring energy baselines are accurate [7].
When used effectively, a BAS evolves from being just a monitoring tool to becoming a proactive energy management system.
E3 Design-Build Contractor: A Trusted Partner
Achieving these benefits requires proper implementation. For public entities across Texas – such as school districts, healthcare systems, universities, and municipalities – the challenge lies in adopting a BAS that aligns with their specific operational needs. That’s where E3 Design-Build Contractor comes in. They specialize in creating energy-efficient solutions, integrating advanced HVAC systems, LED lighting, and BAS tailored to each organization.
With a team boasting 100 years of combined experience, E3 delivers design-build services that address pressing energy concerns while supporting long-term goals. Whether your focus is cutting utility costs, improving indoor air quality, or upgrading outdated systems, E3 has the expertise to deliver results. Learn more about how E3 can help your facility achieve efficient, cost-effective operations by visiting e3es.com.
FAQs
How do I choose the right data interval (5–15 minutes) for my BAS trends?
When choosing a data interval for your BAS trends – typically between 5 and 15 minutes – it’s important to match it to your analysis needs and the level of detail required.
- Shorter intervals (5 minutes) are great for capturing rapid changes or spotting anomalies in system performance.
- Longer intervals (15 minutes) work better for general monitoring or identifying broader patterns.
Make sure the interval aligns with your specific goals, whether you’re troubleshooting issues or conducting an energy analysis. Also, consider your BAS’s ability to manage the data load without slowing down or causing performance problems.
What’s the best way to reduce false alarms without missing real issues?
To strike the right balance between catching real issues and avoiding false alarms, it’s crucial to set alarm thresholds thoughtfully and apply smart logic. Techniques like delay timers, escalation logic, and tweaking thresholds based on hands-on operational insights can make a big difference. Tackling nuisance alarms means digging into their root causes and applying specific fixes that improve system reliability while cutting down on unnecessary notifications.
Which BAS data points should I trend first to catch the biggest energy waste?
To pinpoint energy waste effectively, focus on these critical Building Automation System (BAS) data points:
- Electrical demand: This indicates the total power consumption at any given time, helping identify peak usage periods and potential overuse.
- Energy use by load type: Break down energy consumption across mechanical systems, lighting, and plug loads to see where inefficiencies might be hiding.
- Utility meter data: Regularly reviewing meter readings can reveal anomalies, inefficiencies, or even metering errors.
Tracking these metrics not only helps establish energy baselines but also makes it easier to spot unusual patterns and address problems early. This proactive approach leads to better energy management and lower costs.
