Case Study: Load Balancing in School HVAC Systems

test :

Schools in Texas are facing major HVAC challenges due to outdated systems, high energy costs, and inconsistent indoor temperatures. Many districts are struggling to maintain comfortable learning environments while balancing tight budgets. Here’s what this case study reveals:

Aging Equipment: Many HVAC systems exceed their 15-year lifespan, leading to frequent breakdowns and inefficiencies.
High Energy Costs: Inefficient systems significantly increase utility bills, diverting funds from educational priorities.
Lack of Control Systems: Without centralized automation, managing temperature and humidity becomes a logistical burden.
Dynamic Load Balancing: Upgrades like Building Automation Systems (BAS) and zoning controls are helping schools optimize energy use and improve comfort.

Key results include annual savings of up to $763,908 in districts like Bryan ISD and improved classroom conditions through better temperature and humidity control. These upgrades show how modern HVAC strategies can save money and create better environments for students and staff.

Initial Assessment: Finding the HVAC Problems

A detailed energy audit revealed persistent HVAC problems – outdated equipment, missing controls, and mechanical breakdowns – that were straining budgets and causing discomfort in classrooms.

Energy Audit Findings

The audit uncovered a troubling pattern of failing systems and inadequate controls in several districts. At West Hardin CCISD, the audit identified 35 HVAC units that had surpassed their 15-year lifespan, recurring condensate problems in the library, and an inefficient air return system in the Band Hall ^[1].

Rio Hondo ISD faced similar challenges. At their High School and Elementary campuses, 16 rooftop Air Handling Units (AHUs) and 11 elementary AHUs were found with damaged dampers and coils. Additionally, 169 Variable Air Volume (VAV) boxes were outdated, leaving them unable to effectively regulate temperature and humidity ^[5].

One of the most critical findings across multiple districts was the lack of centralized control systems. Many schools operated without Building Automation Systems (BAS) or even basic programmable thermostats, making it nearly impossible for staff to schedule equipment or monitor conditions effectively ^[1]^[5]. For instance, Greenville ISD required a major overhaul, including replacing rooftop units, upgrading heat pumps, and retubing deteriorating boilers ^[8].

Zoning issues also came to light. At White Oak ISD, the auditorium lacked separate controls for the stage and seating areas, leading to energy waste and inconsistent comfort levels ^[6]. In some facilities, storage areas were left unconditioned, which increased the strain on nearby spaces ^[1].

These inefficiencies didn’t just compromise performance – they also had a ripple effect on both financial and operational stability.

Impact on Energy Costs and Comfort

The audit findings directly tied these inefficiencies to higher energy bills and inconsistent indoor conditions. Outdated equipment and the absence of proper controls forced districts to overspend on utilities without achieving stable temperatures.

The financial toll varied by district size, but the costs were consistently high. For example, West Hardin CCISD identified potential annual savings of $67,000 by addressing their HVAC and control issues ^[1]. Beyond the financial burden, these problems created uncomfortable learning environments. Classrooms often swung between extremes – some were unbearably hot, while others were too cold to concentrate.

West Hardin CCISD faced additional challenges in funding the necessary upgrades, all while dealing with frequent equipment failures ^[1].

On a positive note, the audit revealed opportunities for utility rebates that could help offset upgrade costs. West Hardin CCISD qualified for a one-time rebate of $20,364 by replacing outdated units and repairing controls ^[1]. These findings underscored the urgency of addressing these issues. Without action, districts would continue to face escalating costs and worsening conditions, emphasizing the need for comprehensive solutions like dynamic load balancing upgrades.

Dynamic Load Balancing Implementation

After conducting HVAC audits, districts moved forward with system upgrades designed to dynamically balance heating and cooling loads. The approach focused on two main strategies: introducing advanced Building Automation Systems (BAS) and updating aging mechanical components, such as Variable Air Volume (VAV) boxes. These upgrades enabled precise, real-time energy management.

Building Automation System Upgrades

Building Automation Systems were installed to centralize HVAC control and optimize scheduling, ensuring systems operated only when necessary ^[5].

Rio Hondo ISD invested $2,230,070 in an Automated Logic Corporation BAS for its high school and elementary school. This system allowed real-time monitoring of temperature and humidity, along with remote adjustments ^[5]. Similarly, Greenville ISD undertook a $2,700,000 turn-key energy initiative, upgrading its energy management system with Direct Digital Control (DDC) and web connectivity. This allowed staff at the high school, middle school, and administrative offices to monitor HVAC performance from any district-connected computer ^[8].

"The expanded control system utilizes web connectivity, allowing facilities personnel at each district building to monitor systems from a local computer with district intranet access." – Greenville ISD ^[8]

Donna ISD implemented BAS across six campuses and completed mechanical retrofits at nine campuses, covering over 2.2 million square feet. This project, completed without any change orders, is expected to save the district $716,984 annually ^[2]. Bryan ISD also optimized its Energy Management Systems across 19 campuses, achieving projected annual savings of $763,908 ^[4].

Zoning Controls Upgrades

To complement the BAS improvements, districts made physical upgrades to ensure better temperature control. Outdated VAV boxes were replaced to enhance zoning and load balancing ^[5].

Kountze ISD faced the challenge of upgrading infrastructure without disrupting classes. The district managed a $2,587,922 energy program that included HVAC retrofits, BAS installations, and LED upgrades. Contractors worked nights and weekends to avoid interfering with daily learning ^[3].

"They came in on nights and weekends so we never disrupted any classes." – Rudy Rodriguez, Director of Maintenance ^[3]

This project was funded through a Qualified Zone Academy Bond (QZAB) provided by the Texas Education Agency. The district plans to repay the loan using $83,000 in annual energy savings generated by the upgrades ^[7]. For facilities with some existing automation, retro-commissioning was used to fine-tune controls instead of replacing them completely. This ensured all components worked together efficiently and communicated properly ^[5]^[7].

Results: Energy Savings and Better Comfort

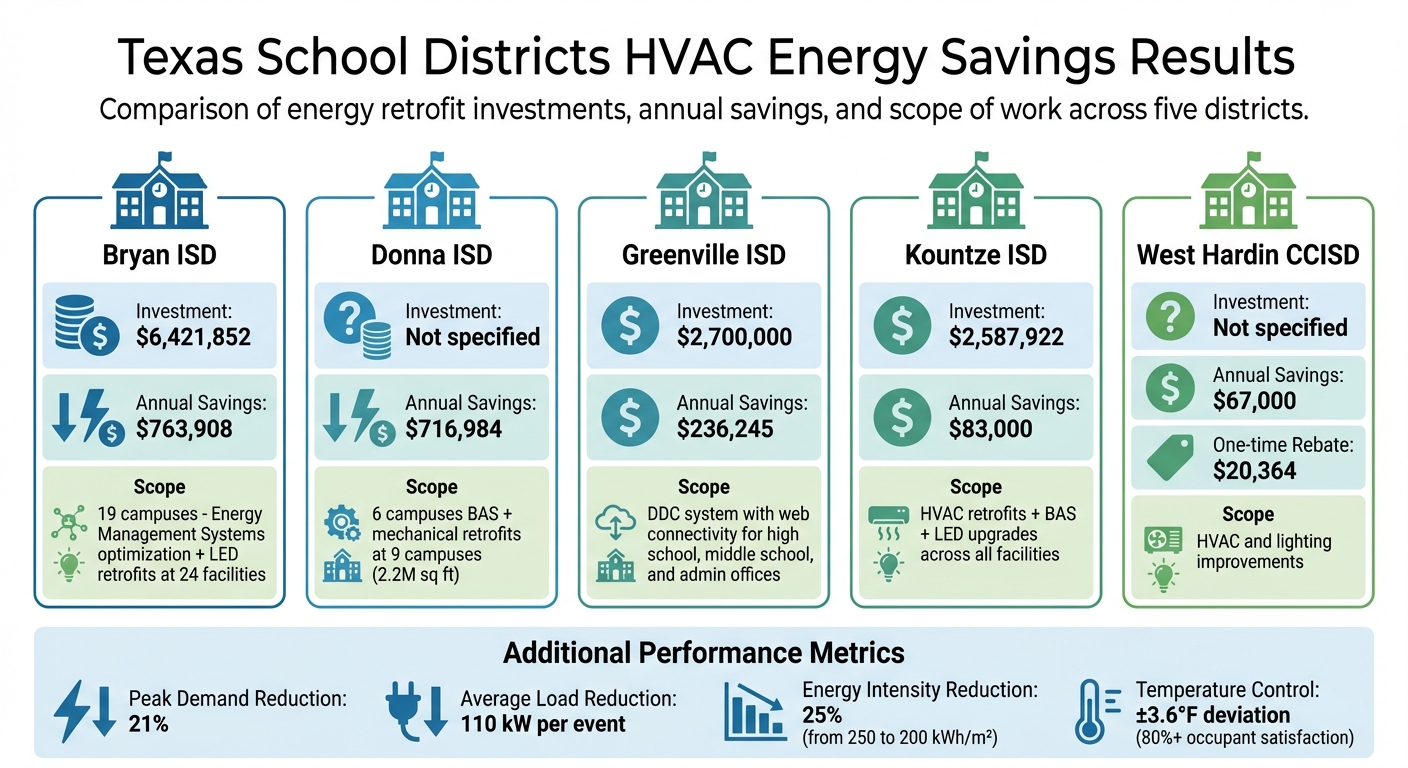

Texas School Districts HVAC Energy Savings and Investment Results

Performance Metrics Comparison

The dynamic load balancing upgrades brought noticeable improvements to several Texas school districts. For instance, Bryan ISD reported verified annual savings of $763,908 after investing $6,421,852 in facility upgrades. These upgrades included optimizing Energy Management Systems across 19 campuses and retrofitting LED lighting at 24 facilities ^[4]. Similarly, West Hardin CCISD saved $67,000 annually through HVAC and lighting improvements and received a one-time utility rebate of $20,364 ^[1]. Over at Kountze ISD, the district avoided $83,000 annually thanks to its $2,587,922 energy program, which featured HVAC retrofits, LED lighting, and advanced energy management controls across all facilities ^[7].

Kountze ISD worked with E3 Design-Build Contractor to optimize HVAC systems, demonstrating the benefits of reducing short cycling – a common issue where systems turn on and off too frequently. This not only keeps the equipment running efficiently but also ensures better moisture control in the air ^[9].

"We realized our annual savings estimate in just over eight months of tracking." – Dr. Daniel Trevino, Jr., Superintendent ^[3]

Temperature control also saw significant improvements. By preventing short cycling, systems provided superior dehumidification and maintained consistent temperatures. Deviations stayed within ±3.6°F, satisfying over 80% of building occupants ^[10]. Moreover, right-sized systems eliminated the "cold and clammy" effect caused by oversized equipment that cools spaces too quickly without addressing humidity ^[9]. These upgrades not only improved comfort but also laid the groundwork for substantial energy cost reductions.

Energy Cost Savings and Reinvestment

The energy savings achieved by these districts opened doors for reinvesting in further facility improvements. Bryan ISD, for example, used its $763,908 in annual savings to repay its SECO LoanSTAR loan, enabling the upgrades to essentially fund themselves over the project’s payback period ^[4]. Similarly, Kountze ISD leveraged its $83,000 yearly savings to repay a Qualified Zone Academy Bond (QZAB), ensuring the financial sustainability of its energy efficiency measures ^[7].

White Oak ISD secured guaranteed savings exceeding $4.4 million over the lifespan of its Energy Savings Performance Contract. These efforts are projected to cut over 2 million kilowatt-hours of electricity and 32,000 centum cubic feet of natural gas ^[6]. The savings directly funded $2.5 million in Phase II capital improvements, including chilled water plant upgrades and the installation of 22 new HVAC units, all without straining the district’s operating budget ^[6].

Success Factors and Lessons Learned

Staff Training and System Monitoring

The effectiveness of dynamic load balancing relies heavily on proper system monitoring and well-prepared staff. Web-based monitoring tools offer real-time control over HVAC operations, making oversight more efficient. Many districts have adopted advanced DDC (Direct Digital Control) and BAS (Building Automation System) solutions, which not only improve real-time monitoring but also simplify system scheduling and staff training. This centralized setup reduces the need for frequent on-site checks and automates tasks like scheduling chillers, air handling units, and exhaust fans. It also keeps a close eye on space temperature and humidity levels in real time^[5]^[8].

Using a design-build approach has further streamlined both implementation and training processes. For instance, E3 Design-Build Contractor worked closely with in-house engineers and contractors on projects like Bryan ISD’s $6,421,852 energy program. This collaboration ensured proper system installation and trained staff to manage operations effectively. Impressively, Bryan ISD managed this as an "occupied retrofit", carrying out work during nights and weekends to avoid interrupting classroom activities during the school year^[3]. These efforts not only improved system control but also laid the groundwork for seamless integration with demand response programs.

Integration with Demand Response Programs

Districts have built upon system upgrades and staff training to tap into demand response programs, reaping both financial and operational rewards. By integrating upgraded HVAC systems with utility-driven initiatives, schools enhanced energy efficiency while enabling precise load management during peak usage periods. Zone-specific controls played a key role in achieving these targeted energy reductions^[1]^[6].

Maintaining system efficiency is equally important. For example, ILTexas charter schools achieved a 95% reduction in maintenance labor hours by implementing Variable Frequency Drives and high-performance filtration systems^[11]. These labor savings allowed staff to concentrate on essential preventative tasks, like cleaning HVAC coils and replacing belts, ensuring systems remained efficient and reliable during demand response events^[11].

Conclusion: Benefits of Dynamic Load Balancing in Schools

Dynamic load balancing offers schools a way to cut energy costs while maintaining a comfortable environment. Schools using these systems have reported a 21% reduction in peak demand, with an average load reduction of 110 kW per event – all without compromising occupant comfort during load-shifting events^[12].

The financial benefits are just as impressive. For example, Bryan ISD’s investment of $6,421,852 resulted in annual savings of $763,908, while Greenville ISD’s $2,700,000 project delivered $236,245 in yearly savings^[4]^[8]. On top of this, advanced control strategies, such as reinforcement learning, have reduced energy intensity by 25%, lowering annual consumption from 250 to 200 kWh/m²^[14].

Beyond energy savings, this technology is helping schools tackle ventilation challenges in the post-pandemic era. Efficient system designs balance air quality with energy efficiency. For instance, retrofits with demand control ventilation have cut energy use by 5% to 38%, whereas systems without these upgrades have seen increases of up to 59%^[13]. This underscores the importance of thoughtful system design.

Schools participating in utility demand response programs not only support grid stability but may also earn extra revenue. Automated optimization systems pre-condition buildings two hours before peak events, ensuring comfort even when energy use is reduced^[12].

Additionally, modernizing with right-sized equipment, variable frequency drives, and advanced building automation systems delivers long-term efficiency. These updates prevent "short cycling" and premature wear common with oversized systems, giving districts more precise control over energy use across campuses^[9]. Together, these enhancements help schools meet operational demands, plan for the future, and maintain comfortable spaces for learning.

FAQs

How does dynamic load balancing work in a school HVAC system?

Dynamic load balancing in a school HVAC system works by constantly fine-tuning heating, ventilation, and air conditioning loads across different zones and components. It relies on real-time data from sensors and building management systems to adjust energy use and airflow. Factors like indoor temperature and occupancy levels play a key role in these adjustments. The result? A system that maintains comfort, avoids overloading, and minimizes energy waste – keeping operations efficient and responsive to current needs.

What upgrades usually deliver the fastest payback for schools?

When it comes to upgrades that quickly pay for themselves in schools, HVAC system replacements and upgrades lead the pack. High-efficiency units and energy management systems can dramatically cut energy costs while improving overall performance. Another smart move? Switching to LED lighting. This simple change not only slashes energy bills – potentially saving schools tens of thousands of dollars each year – but also boosts comfort and operational efficiency.

How can a district fund HVAC upgrades without raising its operating budget?

Districts have options to upgrade HVAC systems without stretching their operating budgets. One way is by using low-interest loans and energy efficiency programs. For instance, the SECO LoanSTAR program provides fixed-rate loans that are repaid using the savings generated from reduced energy costs. This approach allows districts to improve their infrastructure without adding financial pressure.
