Continuous insulation (CI) is a game-changer when it comes to improving building energy efficiency. Unlike traditional insulation placed between studs, CI creates an uninterrupted thermal barrier, minimizing energy loss caused by thermal bridging – a phenomenon where heat escapes through conductive materials like steel or concrete.
Key takeaways:
- Thermal bridging can reduce insulation effectiveness by up to 50%. For example, R-19 insulation in steel-framed walls may only function as R-9 or R-10 in practice.
- CI combats this by covering the entire building envelope, blocking heat flow through structural elements.
- Benefits include lower energy costs, better HVAC performance, and reduced risks of condensation, mold, and structural damage.
- Modern energy codes like ASHRAE 90.1 and IECC 2024 now require CI in many climate zones to meet efficiency standards.
EXPERT TIPS| Continuous Insulation
sbb-itb-034f8e1
The Impacts of Thermal Bridging

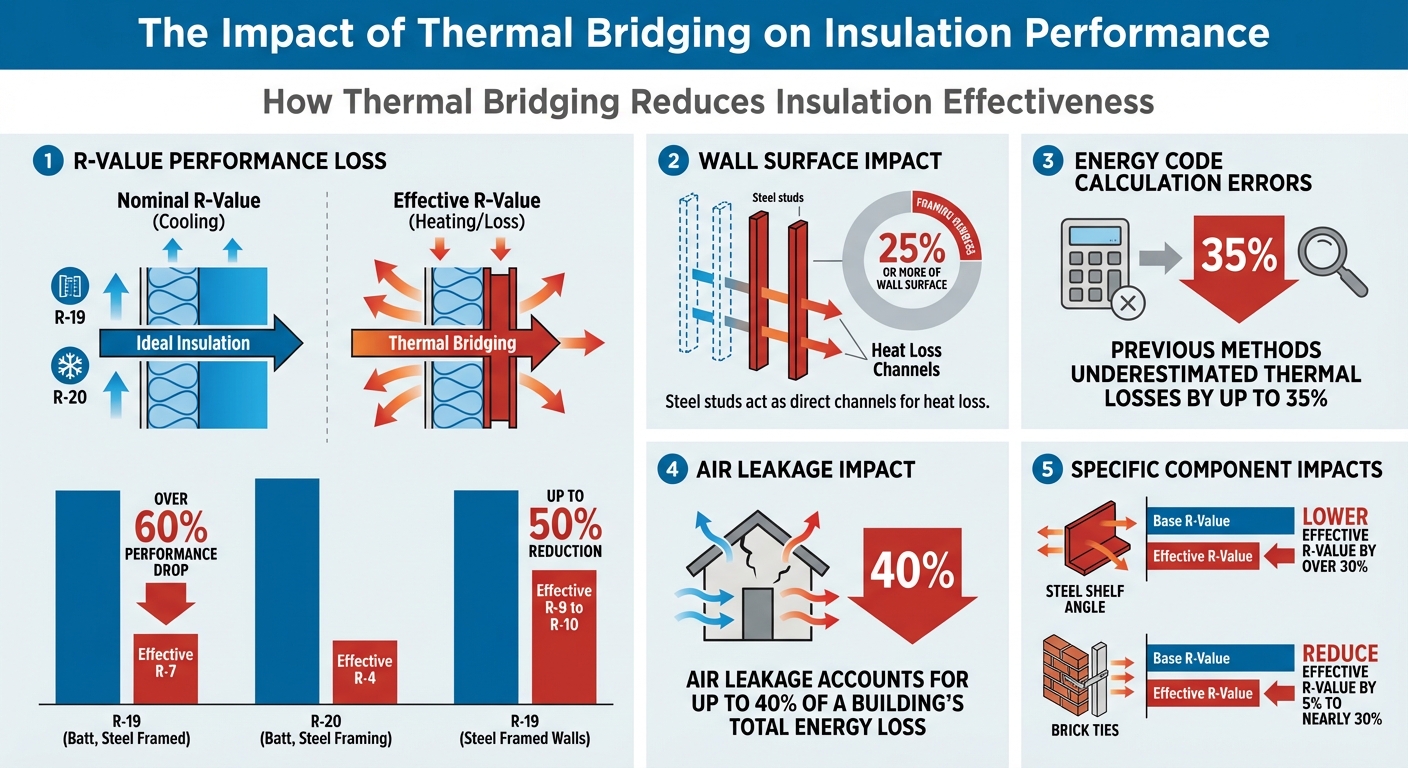

Impact of Thermal Bridging on Insulation Performance and R-Value Reduction
Thermal bridging isn’t just a minor inconvenience – it can lead to a chain reaction of issues that affect energy efficiency, monthly costs, and even the structural health of a building. By addressing thermal bridging with continuous insulation, many of these problems can be mitigated.
Energy Loss and Higher Costs
Thermal bridging puts extra strain on HVAC systems. Materials like steel studs act as "radiator fins," allowing heat to escape and reducing the effectiveness of insulation. This means HVAC systems must work harder and run longer, driving up utility bills.
The impact is striking. For example, a 2×6 steel stud wall with R-19 batt insulation can have an effective R-value as low as R-7, representing a performance drop of over 60% [6]. In some cases, even R-20 batt insulation in steel framing can perform at just R-4 [7]. These numbers highlight how thermal bridging undermines insulation’s effectiveness. Daniel Overbey, Director of Sustainability at Browning Day, emphasizes this point:
"The effective R-value is a better indicator of a building assembly’s actual thermal performance – not the insulation’s nominal rating" [6].
But energy inefficiency isn’t the only concern – thermal bridging can also compromise the building’s durability.
Moisture and Structural Damage
Thermal bridges create cold spots where temperatures drop below the dew point, leading to condensation inside walls. This trapped moisture fosters mold growth, which can harm indoor air quality and pose health risks to occupants. Over time, moisture can lead to wood rot and weaken the building’s structural integrity.
Steel components face their own challenges. When thermal bridging cools metal fasteners, condensation can form at their tips, causing rapid corrosion. This not only damages the fasteners but also affects surrounding structural materials. Nolan Woody, Operating Partner at Curbed Construction, shares a real-world example:
"Steel is unforgiving with moisture. On one job we had a few unsealed penetrations around mechanical lines and it led to condensation inside the wall cavity. Within months fasteners were corroding" [4].
Energy Code Compliance Issues
Modern energy codes like ASHRAE 90.1-2022 and the IECC 2024 now require explicit consideration of thermal bridging. These updated standards demand effective R-values, not just nominal insulation thickness. Previous calculation methods for steel-framed assemblies underestimated thermal losses by up to 35% [6]. As a result, buildings designed with outdated methods may fail to meet current compliance requirements. Without continuous insulation to address thermal bridging, meeting these standards – especially in many climate zones – is nearly impossible with cavity insulation alone.
How Continuous Insulation Reduces Thermal Bridging
Continuous insulation (CI) reshapes how building envelopes handle energy efficiency by addressing thermal bridging and creating a more effective thermal barrier. Unlike cavity insulation, which is placed between framing members, CI provides an uninterrupted thermal layer across structural elements like steel studs, wood joists, and masonry walls. This approach ensures that heat transfer through these components is significantly reduced.
Creating a Thermal Break
The primary role of continuous insulation is to establish a thermal break between the inside and outside of a building. By using high R-value materials such as rigid foam, mineral wool, or closed-cell spray foam, CI prevents heat from passing through structural components [2][8].
How CI is installed plays a major role in its effectiveness. For instance, using adhesives to secure insulation panels eliminates metal-to-metal contact, which could otherwise create new thermal bridges [2]. Another method involves non-conductive girts made from polyurethane, which support cladding without disrupting the insulation layer with conductive pathways.
The impact of CI becomes clear when you consider that framing members typically make up 25% or more of a wall’s surface area [8]. Without CI, these studs act as direct channels for heat loss. A wall with R-20 cavity insulation combined with R-5 continuous insulation performs better than a wall with just R-25 cavity insulation. Why? The exterior R-5 layer breaks the thermal bridge caused by the framing, reducing heat loss and minimizing localized bridging at critical junctions [1].
Reducing Linear and Point Bridges
CI is effective against both linear thermal bridges – which occur at areas like window perimeters, door frames, and floor-to-wall connections – and point thermal bridges, caused by penetrations such as fasteners and brick ties. For example, steel shelf angles can lower effective R-values by over 30% [9]. By repositioning shelf angles away from the wall and allowing insulation to run behind them, builders can reduce thermal bridging to about 15% [9].
Brick ties are another common source of thermal bridging. Depending on their material and placement, they can reduce the effective R-value of exterior insulation by anywhere from 5% to nearly 30% [9]. Using non-conductive materials for ties or optimizing their design and positioning helps minimize this issue. As Joseph Lstiburek, Ph.D., P.Eng, points out:
"It is pretty dumb to add continuous exterior insulation with the same type of thermal bridging that the continuous exterior insulation is intended to address" [1].
By addressing these details, CI not only reduces heat loss but also improves the overall performance of the building envelope.
Improving Airtightness and Preventing Condensation
Continuous insulation also enhances airtightness by sealing gaps around outlets, openings, and transitions [3][10]. Some CI materials, like closed-cell spray foam and taped, foil-faced polyiso boards, double as air, water, and vapor barriers [10][12].
By keeping sheathing temperatures above the dew point and sealing air leaks, CI prevents condensation within wall assemblies [3][11]. This eliminates cold spots where moisture typically gathers – key areas where thermal bridging occurs. As ROCKWOOL explains:
"By keeping the temperature of the sheathing above the dew point and reducing the risk for condensation… [continuous insulation] can reduce the growth of mold" [11].
For rigid foam boards, sealing all joints with approved tape creates an effective air and water-resistive barrier [12]. Builders should pay close attention to areas around windows, doors, and transitions, as these are the most vulnerable points for air barrier continuity [11]. Together, these measures lead to reduced energy costs and a longer-lasting building structure.
Installation Best Practices for Continuous Insulation
Choosing the Right Insulation Material
When selecting continuous insulation, it’s essential to consider factors like thermal performance, moisture resistance, fire safety, and compatibility with the building’s structure. Different materials excel under certain conditions, so understanding their properties can guide your choice.
Polyisocyanurate (Polyiso) stands out with an R-value of about 6.0 per inch [16]. It also forms a protective char layer when exposed to fire, meeting NFPA 285 requirements [15][16]. Extruded Polystyrene (XPS) offers an R-value of approximately 5.0 per inch, along with excellent moisture resistance and compressive strength, making it ideal for below-grade applications and protected membrane roofs [16]. For a more budget-friendly option, Expanded Polystyrene (EPS) delivers an R-value of around 4.0 per inch and works well in many residential and commercial projects [16]. Mineral wool, with an R-value ranging from 3.7 to 4.2 per inch, is non-combustible and provides effective sound-dampening, making it a solid choice for fire-rated assemblies or noisy environments [8][13].
Climate zones also play a significant role in material selection. For example, steel-framed buildings in colder regions (Zones 6–8) require higher R-values due to steel’s high thermal conductivity compared to wood [14][8]. In Climate Zone 7, meeting IECC 2012 requirements might involve combining R-13 cavity insulation with R-15 continuous insulation for steel-framed walls [15][16].
Once you’ve chosen the right material, precise installation techniques are critical to ensuring optimal performance.
Proper Detailing Techniques
The benefits of continuous insulation depend heavily on proper installation. Attention to detail is key to maintaining thermal continuity and maximizing performance.
- Stagger insulation joints to reduce thermal bridging [13].
- Seal seams using approved tapes or sealants to create an effective air and water-resistive barrier [2][13].
Fasteners also require careful selection. Using adhesives or non-conductive girts can help avoid thermal bridges when attaching cladding [2]. If fasteners must penetrate the insulation, thermal clips or composite furring systems can minimize heat transfer while supporting cladding loads [17].
Alignment is another critical factor. The insulation plane should match up with the air barrier, water-resistive barrier, and flashing at transitions like floors, parapets, and window openings [14]. Extending insulation into window and door jambs helps maintain thermal continuity in these areas [17].
As Matt Lee from Rmax highlights:
"Exterior insulation improves moisture control most reliably when the wall sheds water outward through a clear flashing and drainage plane and holds air movement at the primary air barrier" [14].
Finally, ensure all penetrations, such as vents, pipes, and outlets, are sealed before cladding installation to prevent air leakage and thermal bridging [13]. Tools like blower door tests and infrared thermal imaging during construction can help identify and address hidden air leaks before they become permanent [17].
Maximizing Benefits with E3 Design-Build Contractor
Combining Continuous Insulation with Other Energy Solutions
E3 Design-Build Contractor takes energy efficiency to the next level by combining continuous insulation with systems like efficient HVAC, LED lighting, and building automation. Why does this matter? Because thermal bridging – heat transfer through framing – can slash insulation performance by 30% to 50%, and air leakage can account for as much as 40% of a building’s total energy loss [11][18]. Tackling these issues head-on, E3’s integrated solutions amplify the advantages of continuous insulation.
By minimizing thermal bridging, energy demand drops, HVAC systems can be smaller, and operating costs go down. Pair that with building automation systems, and you’ve got a setup that optimizes temperature control while cutting waste. This comprehensive strategy lays the groundwork for energy-efficient designs tailored to public facilities.
Custom Solutions for Public Entities
E3 doesn’t just stop at energy savings – they create solutions specifically for public entities. Serving Texas school districts, healthcare systems, municipalities, and higher education, E3 focuses on energy efficiency that saves taxpayer dollars while maintaining occupant comfort. For example, in schools with light-gauge steel framing, E3 addresses the 40% to 65% reduction in effective R-value caused by metal studs by designing continuous insulation systems to compensate for the loss. Meanwhile, in healthcare facilities and aquatic centers, where managing moisture is critical, E3 integrates vapor-permeable insulation with sealed joints to prevent condensation and maintain indoor air quality [4][18].
What sets E3 apart is their design-build approach. They incorporate continuous insulation from the very beginning of a project rather than tacking it on later. As Nolan Woody, Operating Partner at Curbed Construction, explains:
"Continuous insulation isn’t just about meeting code. It pays back in comfort and durability. If you skip it, you’re basically building in a problem that will cost more over the life of the building" [4].
E3’s team tailors each design to meet the specific needs of a facility. Whether it’s managing high humidity levels in an aquatic center or reducing noise pollution for urban schools near busy streets, they deliver solutions that address unique challenges head-on.
Conclusion
Thermal bridging wastes energy and, ultimately, taxpayer dollars. Steel studs can slash a wall’s effective R-value by as much as 50%, with framing accounting for over 25% of the wall’s surface – creating prime pathways for heat loss [4][8]. Adding an uninterrupted insulation layer, like continuous insulation (CI), ensures the wall retains its rated R-value, leading to noticeable energy savings and better overall performance.
CI does more than just save energy. It also safeguards buildings by preventing condensation and structural damage. By keeping wall temperatures above the dew point, it stops condensation, mold, and corrosion – issues that can result in expensive repairs [5][4]. For facilities like schools and healthcare centers, which serve vulnerable populations, this added protection is especially important.
Modern energy codes, including ASHRAE 90.1 and the IECC, now require continuous insulation in most climate zones [5][3]. This makes CI less of an upgrade and more of a standard feature. Its ability to comply with these codes while integrating with other energy-efficient solutions makes it a key component for facilities aiming to stay ahead of the curve. As Francis (JR) Babineau, P.E., Research Manager and Principal Building Scientist at Johns Manville, explains:
"Continuous insulation has become a mainstream concept and code-required feature that should be considered when determining a cost-effective and long-term solution for eliminating thermal bridges" [8].
In short, continuous insulation is about more than just meeting code – it’s about smarter building practices. When properly designed and installed, CI delivers real improvements in energy efficiency, occupant comfort, and building durability. For public organizations looking to cut costs and prioritize sustainability, CI offers a reliable path to smarter, more resilient construction.
