Energy Recovery Ventilation (ERV) systems are a smart solution for Texas facilities facing high energy costs and poor indoor air quality. These systems reduce the strain on HVAC systems by preconditioning outdoor air using energy from exhaust air. This process improves air quality, lowers energy usage, and helps maintain comfortable indoor environments in Texas’s extreme climate.
Key Points:
- ERVs recover 40%-80% of energy from exhaust air, cutting cooling costs by up to 80%.
- They balance indoor air quality and humidity, crucial for Texas’s hot, humid summers and cooler winters.
- Public facilities like schools, hospitals, and municipal buildings benefit significantly from lower energy bills and healthier air.
- Rebates and financing options, like Austin Energy’s $420/kW rebate and Texas PACE financing, make ERVs more affordable.
- Proper installation and compliance with Texas energy codes ensure optimal performance and cost savings.
ERVs offer a cost-effective way to improve air quality and energy efficiency while meeting ventilation requirements in Texas facilities.

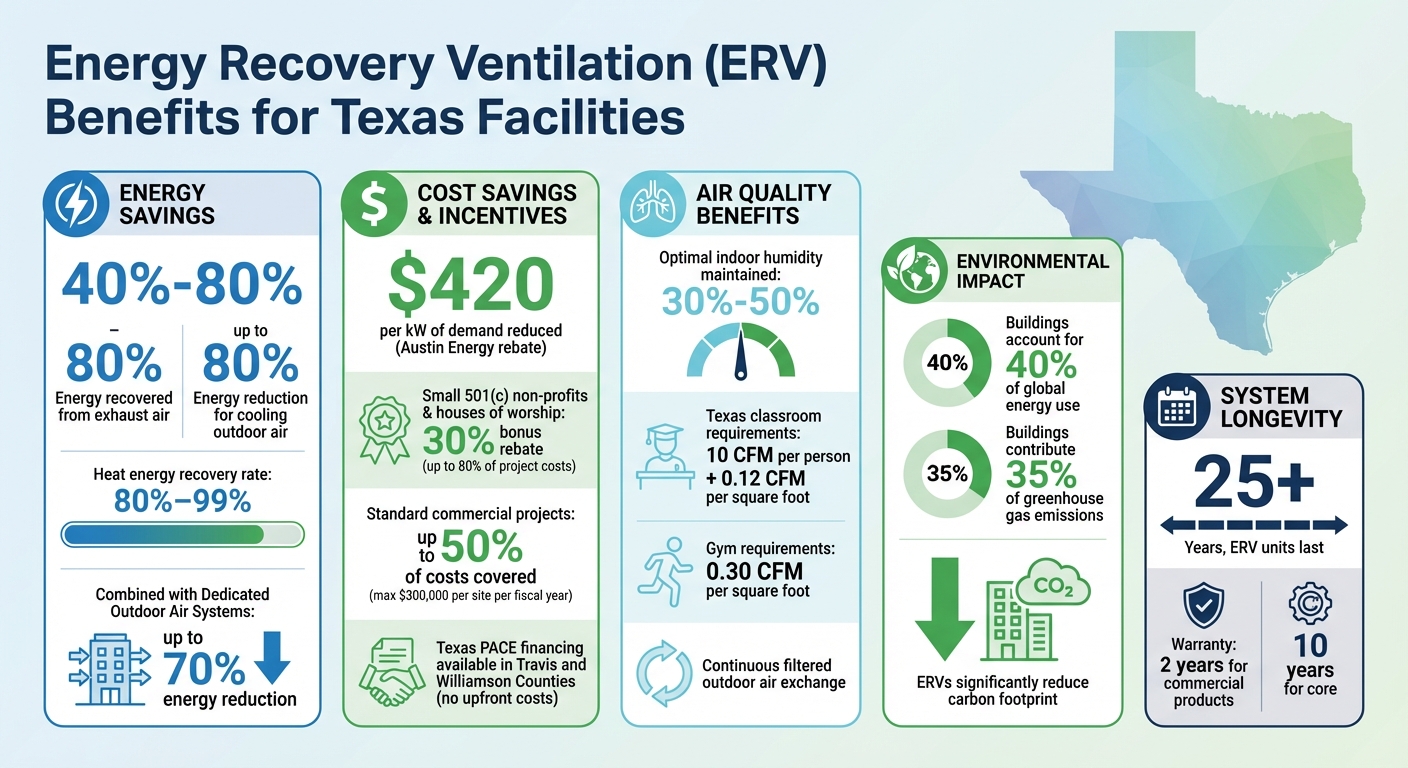

Energy Recovery Ventilation Benefits and Savings for Texas Facilities
Commercial Energy Recovery Ventilators (ERV) – Webinar 5/20/13
sbb-itb-034f8e1
How ERV Systems Work
Let’s dive into how ERV systems function and why they perform well in Texas’s unique climate.
An ERV system works by preconditioning fresh outdoor air through a heat exchanger. This exchanger transfers energy – both heat and moisture – between incoming and outgoing air streams without mixing them.
Two separate fans keep the airflows balanced: one pulls in fresh air while the other expels stale indoor air. Along the way, a filtration system cleans the incoming air, and condensate drains remove excess moisture – a critical feature for Texas’s humid conditions.
At the core of an ERV’s efficiency is its ability to transfer energy, a process explained below.
Heat and Moisture Exchange Process
ERVs are designed to recover both heat and moisture from the outgoing air, making them much more efficient than standard ventilation fans that simply vent conditioned air to the outside.
"Energy recovery ventilators (ERVs) can reduce the energy needed to cool outdoor air by up to 80%."
– Austin Energy [1]
Inside the heat exchanger, balanced airflows move in opposite directions, allowing the system to recover up to 80%–99% of the heat energy from the exhaust air [3] [4]. By preconditioning the incoming air, ERVs lighten the workload on your HVAC system, which can save energy and reduce wear and tear on your equipment.
ERV Operation in Texas Weather Conditions
Texas’s climate requires a ventilation system that can handle both sweltering summers and cooler winters, and ERVs are up to the task.
During the summer, ERVs use the cooler, drier exhaust air to pre-cool and dehumidify the hot, humid outdoor air. This reduces the strain on your air conditioning system.
"In the summertime, the warm incoming air is pre-cooled and dehumidified by the cool, exiting exhaust air."
– RenewAire [2]
In the winter, the process flips. Warm, moist indoor air pre-heats and humidifies the cold, dry outdoor air. This helps maintain a comfortable indoor environment and prevents the discomfort of overly dry air, which is common in colder months. These seasonal adjustments are especially important for Texas, where weather can swing dramatically.
To maximize efficiency and take advantage of rebates in cities like Austin, program your ERV system to run during peak summer hours – typically from 3:00 p.m. to 6:00 p.m. – when energy demand is at its highest.
Benefits of ERV Systems for Texas Public Facilities
ERV systems offer a range of advantages for public facilities in Texas. These systems go beyond basic ventilation by cutting utility costs, improving indoor comfort, and addressing environmental concerns.
Energy Efficiency and Cost Reduction
ERV systems help cut down on energy use by preconditioning outdoor air before it reaches your primary heating and cooling equipment. This reduces the strain on HVAC systems, lowers utility costs, and extends the lifespan of the equipment. These savings align with long-term energy goals.
What makes ERVs particularly effective is their ability to recover up to 80% of the energy from exhaust air, easing the HVAC system’s workload during peak demand periods. For example, Austin Energy provides commercial rebates of $420 per kW of demand reduced, with an additional 30% bonus rebate for small 501(c) non-profits and houses of worship in Austin. Public facilities can also explore Texas PACE financing in Travis and Williamson Counties, which offers low-cost, long-term financing with no upfront costs. The energy savings from ERVs can offset the initial investment, but rebate applications must be submitted before installation or certificate issuance [1].
Better Indoor Air Quality
ERV systems do more than save energy – they improve the quality of indoor environments. Modern Texas buildings are designed to be airtight for energy efficiency, but this can trap allergens, odors, and other pollutants. ERV systems continuously exchange stale indoor air with filtered outdoor air, meeting mechanical code airflow requirements while maintaining efficiency. For instance, Texas classrooms require 10 CFM per person plus 0.12 CFM per square foot, while gyms typically need 0.30 CFM per square foot [5].
Additionally, ERVs help regulate humidity levels, which is especially important in Texas’s climate. They reduce moisture during humid summers and add it back during drier periods, creating a more comfortable indoor environment while diluting airborne contaminants.
Environmental Benefits and Lower Carbon Emissions
ERV systems also contribute to sustainability by reducing the energy demands of ventilation. Considering buildings account for roughly 40% of energy use and 35% of global greenhouse gas emissions [6], lowering HVAC loads can significantly cut a facility’s carbon footprint. Unlike standard heat recovery ventilators, ERVs transfer both temperature (sensible heat) and moisture (latent heat). In humid climates like Texas, this moisture removal reduces the workload on HVAC compressors, leading to even lower carbon emissions.
For public entities aiming for net-zero carbon goals or green building certifications, ERVs offer a practical solution. They reduce reliance on fossil fuels for electricity generation, making them an essential tool for sustainable facility management.
Installing ERV Systems in Texas Facilities
Setting up an ERV (Energy Recovery Ventilation) system in Texas public facilities involves careful planning, whether for existing structures or new constructions. The process must account for permits, energy codes, and installation logistics to minimize disruptions.
Retrofit vs. New Construction
The installation approach varies depending on whether the project involves an existing facility or a new build. Retrofit projects need to comply with Austin Municipal Code chapters 25-12-133 (mechanical) and 25-12-113 (electrical) [1]. These projects often require the ERV system to integrate with existing ductwork. On the other hand, new construction projects allow the ERV system to be seamlessly incorporated during the design phase. This enables better placement, greater design flexibility, and often results in extended warranty coverage and improved system performance since the HVAC and ERV systems are built to work together.
| Requirement | Retrofit | New Construction |
|---|---|---|
| Pre-approval Needed | Submit rebate application before installation [1] | Submit rebate application before Certificate of Occupancy [1] |
| Operating Hours | Weekdays 3–6 p.m., June–Sept (unless exempt) [1] | Integrated into design to meet energy codes and peak demand [1] |
| Warranty Minimum | Minimum 1-year warranty required for rebate eligibility [1] | 2 years for commercial products; 10 years for core [2] |
Placement of outdoor air intakes is critical. They must be at least 10 feet away from lot lines, buildings, or potential contaminant sources like parking lots. If positioned above streets or parking areas, the intakes need to be at least 25 feet higher than those locations [5].
These strategies help streamline the installation process, ensuring efficiency and compliance.
Design-Build Approach for ERV Installation
E3 Design-Build Contractor simplifies ERV installations by managing both the engineering and construction aspects of the project. Their team works collaboratively from the initial design phase to the final commissioning, ensuring the system is both well-designed and properly installed. This integrated approach avoids the common miscommunication issues that arise when separate teams handle design and installation.
"We only build what we design. Our in-house engineers and contractors work hand-in-hand to develop and complete the most efficiently designed and most effectively installed projects." – E3 Design-Build Contractor [7]
For Texas public facilities, this method offers a single point of contact throughout the project. E3 takes care of everything – from managing rebates and permits to balancing and verifying the system. Facilities such as schools and houses of worship often qualify for exemptions from specific operating hour requirements [1].
"Our commitment spans every project phase." – Don Meek, VP of Operations, E3 [7]
After integrating the design, strict compliance with Texas permits and energy codes is essential.
Texas Permits and Energy Code Requirements
Once the design and installation are aligned, meeting Texas’s permitting and energy code standards is the next step. ERV systems must adhere to the 2021 International Energy Conservation Code (IECC), which includes state-specific amendments [8]. Section C403 of the IECC outlines the minimum efficiency requirements for ventilation systems in commercial and institutional buildings. Contractors must also hold a valid Texas Department of Licensing and Regulation (TDLR) license to pull permits [8].
For facilities in Austin that exceed 10,000 square feet, compliance with the Energy Conservation Audit and Disclosure (ECAD) ordinance is necessary before applying for energy incentives [1]. Rebate applications must be submitted prior to installation for retrofits or before receiving a certificate of occupancy for new builds. Incentives like Austin Energy’s $420 per kW rebate are only available if these steps are followed [1].
After installation, the system must be balanced using approved methods to ensure it meets airflow requirements. For example, Texas classrooms require 10 CFM per person plus 0.12 CFM per square foot [5]. Financing options, such as Texas PACE, are available in Travis and Williamson Counties, providing low-cost, long-term funding with no upfront costs for eligible non-profits and commercial properties [1]. Austin also offers rebates covering up to 50% of project costs for standard commercial installations, while small 501(c) non-profits and houses of worship can qualify for rebates covering up to 80% [1].
Getting the Most from Your ERV System
To fully capitalize on the benefits of an Energy Recovery Ventilation (ERV) system, it’s essential to pair it with complementary building systems and take advantage of financial programs. In Texas, facilities can significantly cut energy use and operating expenses by combining ERV technology with other upgrades and tapping into state-specific incentives. Let’s explore how integrating ERV with other solutions can amplify energy savings.
Combining ERV with Other Energy-Saving Solutions
ERV systems deliver the best results when combined with other energy-efficient technologies. For instance, integrating ERV systems with building automation tools enables facility managers to monitor performance in real time and adjust settings based on factors like occupancy and weather conditions [9]. This ensures the system operates at peak efficiency.
Upgrading to high-efficiency HVAC systems alongside ERV technology further boosts savings. By preconditioning incoming outdoor air – transferring heat and moisture from exhaust air – the ERV reduces the HVAC system’s workload and extends its lifespan.
"ERV systems are especially beneficial in areas with extreme temperatures, as they help to maintain a consistent indoor temperature while bringing in fresh air from the outside." – Mike Cham, CTO of Encentiv Energy [10]
Adding solutions like LED lighting retrofits and smart thermostats can qualify for separate rebates, cutting energy consumption further [9]. Companies like E3 Design-Build Contractor specialize in bundling these upgrades into cohesive plans, addressing multiple systems at once. This approach not only maximizes energy and cost savings but also minimizes disruptions during installation.
Available Rebates and Incentives in Texas
Financial incentives in Texas make ERV installations even more affordable. The Texas LoanSTAR Revolving Loan Program offers low-interest financing for public institutions such as K–12 schools, local governments, and state agencies. Applications are open until August 31, 2026 [11][12].
Austin Energy provides commercial rebates of $420 per kW saved for ERV installations [13]. Small businesses and 501(c) non-profits can receive a 30% bonus rebate, covering up to 80% of project costs [1]. Standard commercial projects are eligible for rebates covering up to 50% of costs, with a cap of $300,000 per site per fiscal year [1].
For eligible commercial properties and non-profits in Travis and Williamson Counties, Texas PACE financing offers long-term, low-cost funding with no upfront costs [1]. Since this financing transfers with the property upon sale, it’s an appealing option for facilities planning future transitions.
"By taking advantage of utility rebates, building owners can make these systems more affordable and achieve a faster return on investment." – Mike Cham [10]
To find additional utility-specific rebates, tools like ENERGY STAR Rebate Finder and Utility Genius can help [9][10]. Currently, 188 utilities across 15 states, including Texas, offer ERV-specific incentives. Rebates are often calculated based on metrics like kW reduction, kWh savings, airflow volume (CFM), or tons of recovered energy [10].
Texas ERV Implementation Examples
While detailed case studies from Texas facilities are still forthcoming, the financial benefits are clear. Combining ERV systems with Dedicated Outdoor Air Systems can reduce energy consumption by up to 70% in commercial spaces [2]. When paired with rebates and financing options, the economics become even more compelling. ERV units typically last over 25 years, providing long-term savings well beyond the initial investment [2]. Public facilities should act quickly to submit LoanSTAR applications before the August 31, 2026 deadline to secure low-interest financing [11].
These examples highlight how careful planning and leveraging financial incentives can maximize the advantages of ERV systems for Texas facilities.
Conclusion
Energy Recovery Ventilation (ERV) systems provide an effective way for Texas public facilities to tackle the challenges of the state’s extreme climate while managing costs and improving occupant comfort. By preconditioning outdoor air, ERVs lighten the load on HVAC systems, which leads to lower utility bills and extends the lifespan of expensive equipment – key advantages for facilities with tight budgets.
But the benefits don’t stop there. ERVs also enhance indoor air quality by continuously replacing stale indoor air with fresh, filtered outdoor air. Maintaining indoor humidity between 30% and 50% not only helps prevent mold but also reduces the time airborne viruses can linger [14]. This creates a healthier environment for everyone, from students and patients to employees and visitors.
There’s also a broader environmental benefit. Buildings are responsible for around 40% of global energy use and contribute 35% of greenhouse gas emissions [6]. ERVs help reduce energy demands for ventilation, cutting operating costs and shrinking the carbon footprint of Texas facilities – an important step toward meeting decarbonization goals.
"We understand energy management means more than simply addressing maintenance issues. It means creating the most sustainable and comfortable environments to free resources for your real mission." – E3 Design-Build Contractor [7]
Key Takeaways
ERV systems offer Texas facilities a range of measurable benefits, including lower energy costs, better air quality, improved humidity control, and reduced environmental impact. These advantages are even more compelling when paired with financial incentives like Austin Energy’s $420 per kW rebate [1].
Partnering with a local expert, such as E3 Design-Build Contractor, ensures a seamless design and installation process. With experience consulting over 350 Texas clients – including school districts and county governments – and backing from the Texas Association of School Boards (TASB), E3 brings proven expertise [7]. For instance, one Texas school district saw its annual energy savings materialize in just over eight months following facility upgrades, showcasing how quickly these investments can pay off when executed effectively.
FAQs
Is an ERV or HRV better for Texas humidity?
In Texas, where humidity tends to be high, an Energy Recovery Ventilation (ERV) system is typically the better option. ERVs are designed to transfer both heat and moisture between the incoming fresh air and the outgoing stale air. This dual function helps manage indoor humidity levels effectively, which is crucial for comfort and air quality in such a climate.
On the other hand, Heat Recovery Ventilation (HRV) systems only transfer heat, making them more suitable for dry climates. Since HRVs don’t address moisture, they aren’t as effective in humid regions like Texas. If you’re aiming to maintain a comfortable indoor environment in a humid area, an ERV system is usually the smarter choice.
How do I know what size ERV my facility needs?
To choose the right-sized energy recovery ventilator (ERV) for your facility, you’ll need to evaluate a few key factors: ventilation needs, building size, and energy efficiency goals. The process involves calculating the required airflow based on both the number of occupants and the size of the space. Standards like the Texas Mechanical Code can serve as a helpful guide during this step. For the best results, it’s a good idea to consult a professional who can perform accurate load calculations. This ensures your ERV is tailored to meet your facility’s air quality demands while supporting energy efficiency.
What maintenance does an ERV require in Texas?
An ERV system in Texas requires consistent maintenance to stay efficient and support good indoor air quality. Some of the essential upkeep tasks include:
- Cleaning or replacing filters to keep airflow unobstructed.
- Inspecting and cleaning the heat exchange core to ensure optimal energy recovery.
- Checking fans and dampers to confirm they’re functioning as they should.
Regular attention to these areas helps the system handle the demands of Texas’s climate effectively.
