HVAC zoning can reduce energy use by up to 33%, as shown in a Texas school district’s $2.5M project. By dividing buildings into zones with individual temperature controls, energy is only used where needed, cutting waste and improving comfort. Key results include:
- Energy savings: Daily energy use dropped from 19.3 kWh to 12.9 kWh.
- Cost efficiency: Savings exceeded projections in just 8 months.
- System longevity: Reduced strain on HVAC equipment.
- Custom solutions: Zones tailored for occupancy patterns, like classrooms and auditoriums.
This approach works for schools, offices, and healthcare facilities by focusing on occupied areas and leveraging smart controls to manage airflow and energy use efficiently.
Facility Profile and Pre-Project Challenges
Facility Overview
The White Oak Independent School District (ISD), located in White Oak, Texas, is the centerpiece of this case study. The district oversees ten facilities, including schools, a band hall, and an auditorium. Each building presented unique heating, ventilation, and air conditioning (HVAC) needs. For instance, classrooms required flexible scheduling, while the auditorium demanded separate temperature settings for the stage and seating areas, especially during performances.
"We strive to create a comfortable and safe environment where our students can learn and grow, and that becomes increasingly challenging as our facilities age" [2].
These challenges highlighted the need for creative HVAC zoning solutions tailored to the district’s diverse requirements.
Existing HVAC Setup and Issues
White Oak ISD’s middle and high schools were grappling with outdated HVAC systems. These single-zone systems forced all areas to maintain the same temperature, regardless of individual room usage. This inefficiency not only wasted energy but also made it difficult to maintain comfort in active spaces.
The district struggled with rising utility bills and inconsistent temperatures across its buildings. Upper floors often became uncomfortably hot, while lower levels stayed too cold. On top of that, equipment failures at the middle school’s chilled water plant and aging units at the high school and band hall added to the growing list of problems. Facing these challenges, the district launched a $2.5 million energy efficiency project, which promised guaranteed savings of more than $4.4 million over the contract’s lifetime [2].
These mounting issues underscored the urgency for an HVAC zoning overhaul to improve comfort and energy efficiency district-wide.
sbb-itb-034f8e1
HVAC Zoning Implementation by E3 Design-Build Contractor
Design and Planning Process
To tackle the challenges presented, E3 kicked off their process with a detailed facility assessment. Their engineers worked closely with district leadership to identify specific issues, such as fluctuating occupancy patterns and unique temperature needs.
"We want to know you, your facilities, your problems, your aches, and your pains." – E3 Team [4]
The team carefully analyzed the existing infrastructure to explore how high-efficiency HVAC systems and Building Automation Systems (BAS) could be incorporated to address inefficiencies. During this evaluation, they pinpointed critical zoning boundaries. For instance, they focused on spaces with large windows, multi-level areas prone to temperature differences, and rooms with unpredictable occupancy, like gymnasiums and band halls [5]. This thorough assessment allowed E3 to craft a zoning plan that tackled comfort concerns, improved indoor air quality, and addressed deferred maintenance issues [4].
Once the customized plan was in place, E3 moved quickly to bring it to life.
Installation and Technology Used
E3 installed motorized dampers within the ductwork, each controlled by individual thermostats dedicated to specific zones [3]. These dampers efficiently managed airflow, ensuring conditioned air reached only the areas that required it. The system was further enhanced by integrating smart Building Automation Systems, which adjusted airflow dynamically based on occupancy schedules. This setup prioritized active zones during peak usage times [1] [3].
To minimize disruptions, all installations were carried out exclusively at night and on weekends. As Rudy Rodriguez, Director of Maintenance, explained:
"They came in on nights and weekends so we never disrupted any classes" [4]
E3’s design-build approach, where engineering and installation teams work seamlessly together, ensured the final system met the original efficiency goals [4]. This collaborative effort set the stage for improved energy efficiency and system performance.
Energy Savings and Results

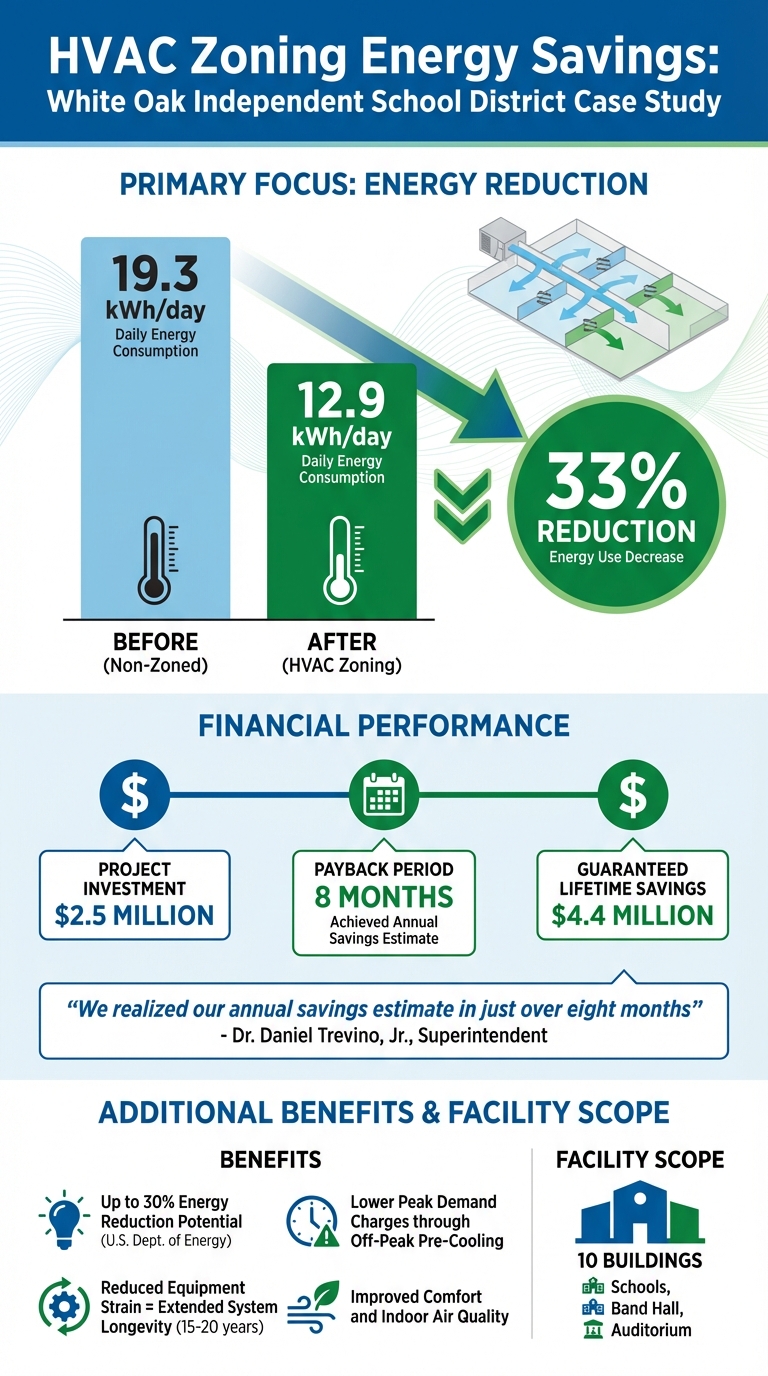

HVAC Zoning Energy Savings Results – White Oak ISD Case Study
Energy Savings Metrics
Once E3 completed the HVAC zoning installation, the facility saw a noticeable drop in energy consumption. As Dr. Daniel Trevino, Jr., Superintendent, put it:
"We realized our annual savings estimate in just over eight months of tracking." [4]
Daily energy usage at the facility decreased from 19.3 kWh/day to 12.9 kWh/day – a 33% reduction. This result aligns closely with research from Ontario’s Independent Electricity System Operator, which highlights the effectiveness of zoning systems in improving energy efficiency [1]. The savings come from channeling conditioned air exclusively to occupied areas, cutting out the waste of heating or cooling empty spaces. According to the U.S. Department of Energy, zoned heating and cooling systems can reduce energy use by up to 30%, depending on the size and usage of the facility [3].
The system also shifts energy usage to off-peak hours. By pre-cooling specific zones during times with lower energy rates, the facility was able to further cut peak demand charges, which helped reduce overall energy costs even more.
Payback Period and ROI
The facility achieved its annual savings target in just over eight months, which significantly shortened the payback period. This quick turnaround not only offset the initial investment in the upgraded system but also brought long-term financial benefits. By reducing equipment strain and lowering maintenance needs, the system promises to deliver cost savings over its 15- to 20-year lifespan. These results highlight how the upgrades improved both energy efficiency and operational performance.
Key Success Factors and Lessons Learned
Optimized System Performance
The project’s success can be traced back to a combination of advanced control systems and seamless engineering coordination. By focusing on precise load management and targeted airflow control, the system ensured energy was used efficiently, conditioning only the spaces that were occupied. A Building Automation System (BAS) played a key role by automating temperature setbacks and shifting energy usage to off-peak hours, pushing performance beyond just the technical design.
E3’s approach to integrating design and installation was another critical factor in achieving these results. As E3 explains:
"We only build what we design. Our in-house engineers and contractors work hand-in-hand to develop and complete the most efficiently designed and most effectively installed projects" [4].
This hands-on collaboration ensured that the original design goals translated seamlessly into real-world performance. However, the project wasn’t without its hurdles, requiring quick thinking and adaptability to address early-stage challenges.
Overcoming Initial Challenges
While the system ultimately delivered optimized performance, the early stages of calibration and balancing presented some obstacles. The team had to address airflow imbalances across different zones and fine-tune temperature settings to ensure both efficiency and comfort. Instead of passing the buck, E3 took ownership of the situation. Don Meek, VP of Operations, underscored this commitment:
"You’ll never hear us say, ‘It’s not our problem’" [4].
To minimize disruptions, the installation was carefully scheduled during nights and weekends, allowing day-to-day operations to continue uninterrupted. This meticulous planning and proactive problem-solving were key to overcoming the initial challenges and ensuring the project’s overall success.
Scalability and Applicability to Other Public Facilities
Tailored Solutions for Variable Occupancy
This energy-saving approach adapts well to facilities of all sizes, making it especially effective for public spaces with changing occupancy levels. Take schools, for instance: classrooms are packed during teaching hours, while gyms and cafeterias experience their busiest times at different points in the day. Similarly, municipal offices often sit empty during evenings and weekends, yet traditional HVAC systems still operate unnecessarily in these areas.
By combining HVAC zoning with Building Automation, only occupied spaces are conditioned, cutting down on energy waste. E3 has already worked with over 350 clients in Texas, including school districts like Caldwell ISD, Carrizo Springs CISD, Donna ISD, Bryan ISD, and municipal entities such as Cooke County. These examples highlight how scalable HVAC zoning can be when tailored to specific needs [4].
In healthcare facilities, this zoning strategy not only reduces energy consumption but also improves indoor air quality – an essential factor in patient care. This aligns with E3’s expertise in creating customized, large-scale upgrades that meet the unique demands of different public facilities.
E3’s Expertise in Public Facility Upgrades
E3’s design-build approach ensures HVAC zoning solutions are effectively scaled for a variety of facilities. Their process integrates high-efficiency HVAC systems with LED lighting and building automation, ensuring peak operational performance while staying true to original design specifications.
The Texas Association of School Boards has praised this flexibility, stating:
"TASB found a company to endorse, E3, that would serve districts regardless of size, location, wealth or needs."
- Texas Association of School Boards
With a century of combined experience among its founders and a solid history of working with diverse public entities – from small rural schools to large municipal buildings – E3 consistently showcases how HVAC zoning can adapt to meet the operational demands of any facility [4].
Conclusion
The findings highlight how HVAC zoning effectively reduces energy waste while boosting system performance in public facilities. Research from Ontario’s Independent Electricity System Operator demonstrates these energy savings in action, underscoring the value of this approach [1].
The financial advantages are equally compelling. For example, one E3 client saw a payback period of just over eight months. Beyond cost savings, zoning reduces HVAC equipment wear and enhances indoor comfort, making it a smart choice for public entities mindful of their budgets. E3’s design-build model ensures each system is custom-tailored, with in-house engineers and contractors collaborating seamlessly from planning to installation – all while minimizing disruptions to daily operations [4].
This method not only addresses operational inefficiencies but also optimizes energy usage in facilities dealing with fluctuating occupancy or deferred maintenance. With a client base exceeding 350 across Texas and support from the Texas Association of School Boards, E3 has demonstrated that HVAC zoning works across a wide range of settings. From small rural schools to large municipal buildings, the integration of smart controls, thoughtful zone planning, and expert execution creates efficient environments that allow organizations to focus on their primary missions, like education and public service [4].
