Public buildings often waste 15%–30% of energy due to hidden HVAC system faults – issues like sensor errors, stuck valves, and poor scheduling. These inefficiencies quietly increase utility bills and shorten equipment lifespan. Automated Fault Detection and Diagnostics (AFDD) offers a solution by continuously monitoring systems, identifying problems early, and prioritizing fixes based on energy impact.

Key takeaways:

• Energy savings: AFDD can reduce utility costs by 8%–9%, saving $0.17–$0.24 per square foot annually.
• Cost-effective: Implementation costs average $0.12 per square foot, with a payback period under two years.
• Real-world results: The University of Iowa saved $2.5 million annually, while Yale University cut $580,000 in energy costs in one year.

AFDD is especially useful for schools, hospitals, and other public facilities with tight budgets. It turns reactive maintenance into a proactive approach, preventing costly breakdowns and maintaining system efficiency over time.

Fault Detection and Diagnostics (FDD) 101

sbb-itb-034f8e1

HVAC Faults That Waste Energy

HVAC systems in public buildings often consume more energy than necessary, quietly inflating costs while going unnoticed. Faults can persist for months – or even years – because the building may still feel comfortable, even as utility bills steadily climb. These hidden issues not only waste energy but also compromise system performance, highlighting the importance of automated fault diagnostics.

Common HVAC Fault Examples

HVAC faults come in many forms, and each one chips away at efficiency. Sensor and control issues are among the most common. Over time, sensors can drift, and manual overrides may remain in place, leading to inaccurate readings and extended equipment operation. Poorly tuned control loops can cause actuators to "hunt", constantly adjusting in a way that wastes energy ^[3].

Mechanical failures are another major source of inefficiency. Stuck valves, leaking dampers, fouled coils, and dirty filters force fans to work harder, reducing overall performance. For instance, a single stuck-open VAV box damper can increase cooling energy consumption by up to 36% ^[7]. Field tests reveal that nearly 40% of systems have incorrect refrigerant charges – either too much or too little – causing compressors to operate inefficiently ^[5].

System logic and scheduling problems also play a significant role. Faulty schedules can cause HVAC systems to run during off-hours or even lead to simultaneous heating and cooling, wasting energy. "Rogue zones" can emerge when a single problematic area forces the entire system to work harder, conditioning spaces that don’t need it ^[3]. These inefficiencies directly translate into higher operational costs.

The Cost of Ignoring Faults

Overlooking HVAC faults can have a significant financial impact, particularly in the public sector. Faults and operational errors account for 15%–30% of energy waste in commercial buildings ^[3]. For K–12 school districts, which collectively spend over $8 billion annually on energy – second only to personnel costs – this waste is a heavy burden. In fact, over 30% of energy use in schools is wasted, with 10% recoverable through low-cost operational improvements ^[6].

Take, for example, a single faulty rooftop unit on a school gymnasium. It can add $3,000–$5,000 annually to energy costs before anyone notices the issue ^[6]. Equipment degradation, such as worn bearings or failing belts, can cause efficiency losses of 15%–30% long before the equipment fails completely ^[6]. The progression is clear: a $15 dirty filter (Stage 1) can escalate to frozen coils ($150–$400), then to component failure ($400–$1,200), and eventually to a complete system failure requiring emergency replacement ($1,500–$4,000+) ^[8].

Riley Quinn from Oxmaint describes this challenge perfectly:

"HVAC problems… don’t announce themselves with alarms and flashing lights. They whisper through slightly higher energy bills, rooms that feel a degree or two off, and sounds you train yourself to ignore" ^[8].

David Yuill, a professor at the University of Nebraska–Lincoln, adds:

"The most serious thing about HVAC faults, from a homeowner’s perspective, is that they reduce the life of equipment" ^[5].

For public organizations operating on tight budgets, the combination of wasted energy and premature equipment replacement makes automated fault diagnostics an essential tool for cutting energy costs.

How Automated Fault Detection and Diagnostics (AFDD) Reduces Energy Waste

How AFDD Works

AFDD operates by continuously monitoring building systems through a structured process. It starts by gathering data from the Building Automation System (BAS) using standard protocols like BACnet or Modbus. This data includes key metrics such as temperatures, pressures, valve positions, damper settings, and fan statuses, typically collected every 5–30 minutes ^[10].

Next, the system compares this real-time data to performance models to identify deviations. These models can be white-box (based on physics), black-box (AI-driven), or a mix of both, known as gray-box [15,17]. Unlike traditional BAS alarms that rely on fixed thresholds – like triggering an alert only when a temperature exceeds 90°F – AFDD identifies more subtle issues, often referred to as "soft faults." These include problems like sensor drift, simultaneous heating and cooling, or poorly calibrated control loops, all of which can waste energy without triggering standard alarms [4,17].

Once a fault is spotted, AFDD systems diagnose the root cause and prioritize it based on its potential impact on energy costs, equipment health, and occupant comfort [4,17,18]. Advanced AFDD systems can even "write back" to the BAS to fix simple issues automatically, such as correcting schedules or resetting setpoint overrides [16,19]. Michael Finn from OxMaint highlights the core advantage of AFDD:

"That’s the fundamental value of FDD: it looks at everything, all the time, and finds the problems that humans don’t have time to look for" ^[9].

This constant monitoring and proactive detection lead to measurable energy savings and reduced operational costs.

Benefits of AFDD

The proactive approach of AFDD delivers a range of benefits. Organizations typically see median energy savings of 8–9%, translating to about $0.17–$0.24 per square foot annually. With first-year costs averaging $0.12 per square foot and a payback period of under two years, the financial case for AFDD is compelling. For example, a 100,000-square-foot school building could save roughly $17,000–$24,000 annually [16,18].

But the advantages go beyond cost savings. AFDD addresses a staffing challenge by focusing on operational and control-related HVAC faults, which account for 60%–80% of issues, rather than mechanical failures ^[9]. For instance, a faulty $50 outdoor air temperature sensor could waste thousands of dollars annually by disrupting economizer operations. AFDD allows maintenance teams to prioritize the top 15% of faults responsible for 75%–80% of total energy waste ^[9].

Another major benefit is preventing "performance drift." Over time, as building settings change and overrides accumulate, efficiency tends to decline. AFDD ensures that systems continue operating as designed, maintaining optimal performance year after year [18,5].

Energy Savings and Return on Investment (ROI) from AFDD

Energy Savings in Public Buildings

Public buildings using AFDD technology have achieved a median 8% energy savings across 550 facilities, covering a total of 97 million square feet ^[11].

At the University of Iowa, AFDD was implemented in 47 buildings spanning 6.9 million square feet. This resulted in $600,000 saved within six months and $2.5 million annually, thanks to 2,100 resolved maintenance issues ^[12]. Katie Rossmann highlighted the impact:

"We saved $780,000 in energy cost in the first year and had 24% of work orders generated by FDD – helping us transition the organization from reactive to proactive mode" ^[12].

Similarly, Yale University reaped $580,000 in savings in FY2022 after deploying AFDD across 650+ air handling units. This equated to 17,700 MMBTU, roughly the energy consumption of 250 households ^[13]. Even smaller-scale projects demonstrate the value of AFDD. For instance, a pilot study at a federal defense contractor revealed that three out of eight air handlers were underperforming, causing $5,000 in monthly energy losses ^[4]. These examples emphasize the financial and operational benefits of AFDD adoption, as captured in the ROI comparison below.

ROI Comparison: Before and After AFDD

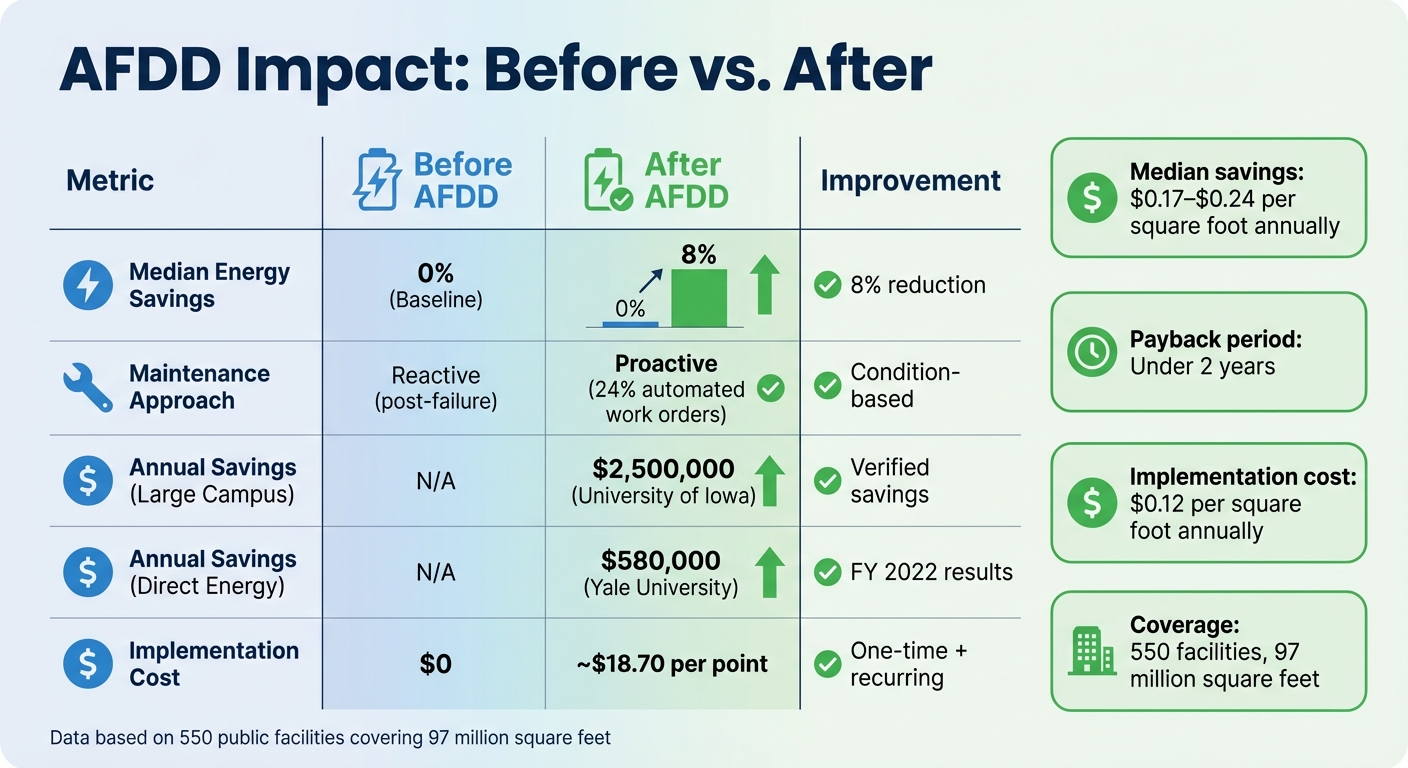

The table below illustrates the performance improvements achieved after introducing AFDD in public facilities:

Julie Paquette, Yale University’s Director of Engineering and Energy Management, explained the importance of maintaining system performance over time:

"Systems degrade over time. So, if you’ve made a real investment in a building or system and you’re expecting a certain level of performance, you need to maintain that. This technology helps us to do that" ^[13].

How to Implement AFDD in Public Sector Buildings

Assess Existing Systems and Prioritize Faults

To get started with AFDD (Automated Fault Detection and Diagnostics) in public sector buildings, the first step is to take stock of existing Building Automation Systems (BAS). Make sure the BAS supports communication protocols like BACnet or Modbus ^[3]. Next, conduct a thorough audit of available data. Check which data points – like temperatures, pressures, and control signals – are accessible, and ensure that trend data is both current and relevant. Reviewing as-built drawings, mechanical records, and historical CMMS (Computerized Maintenance Management System) data can help pinpoint recurring fault patterns ^[10][4]. However, be prepared to address any inconsistencies between documentation and the actual equipment setup, as these mismatches can disrupt diagnostics ^[2][4].

IT and security considerations are equally important. Verify how data will be exported and ensure cybersecurity protocols are in place ^[10]. For high-priority HVAC equipment, such as chillers and boilers, set data collection intervals between 5 and 30 minutes to capture enough detail for effective fault analysis ^[10].

If resources are tight, focus on faults that have the greatest impact. Look at factors like energy waste, repair costs, occupant comfort, and equipment longevity ^[3][2]. Starting small, perhaps with a pilot project on a specific air handling unit, is a smart way to test feasibility and calculate potential ROI before scaling up across an entire campus ^[4]. Modern AFDD tools can even estimate the energy costs of unresolved faults, allowing facility managers to prioritize the most expensive issues first ^[1]. Once the system assessment is complete, bringing in skilled contractors can help ensure smooth integration and effective implementation.

Work with Experienced Contractors

After completing a detailed system assessment, experienced contractors can bring the expertise needed to resolve any discrepancies in documentation and streamline the process ^[4]. For instance, in a pilot project for a major federal defense contractor, Burns & McDonnell used SkySpark software to monitor 54 assets. They identified inconsistencies between the BAS and the as-built documentation. By analyzing eight air handlers, they discovered three units performing poorly, costing the facility $5,000 each month. This pilot project served as a blueprint for campus-wide expansion and monitoring-based commissioning ^[4].

Specialized contractors, such as E3 Design-Build Contractor (https://e3es.com), can take integration even further. They combine AFDD implementation with broader upgrades like high-efficiency HVAC systems, advanced building automation, and energy-efficient retrofits. This comprehensive approach not only improves diagnostics but also supports long-term operational efficiency. These contractors also help public facilities address cybersecurity needs, standardize data from older systems, and develop strategies that may even exempt buildings from mandatory periodic retro-commissioning requirements ^[4]. By embedding AFDD into a proactive maintenance culture, public sector buildings can reduce energy costs and achieve sustainable operational improvements, rather than treating AFDD as a one-off tool.

Conclusion

AFDD offers a practical solution for public facilities grappling with rising energy costs and aging infrastructure. By continuously monitoring building automation systems, it helps reduce wasted energy and delivers median savings of 8%–9%. Facilities can also expect annual cost reductions of $0.17–$0.24 per square foot, with a median total cost of $0.12 per square foot annually ^[10][3]. Beyond energy savings, AFDD extends the lifespan of equipment through predictive maintenance while aiding compliance with federal mandates like the Energy Act of 2020 ^[4].

For public entities in Texas, this technology provides a path to improving efficiency without requiring large capital investments. It delivers measurable financial returns while easing the burden on maintenance teams, allowing them to focus on more pressing issues ^[10].

However, implementing AFDD successfully takes more than just installing software. Facilities need experienced partners who can handle complex tasks like data integration, documentation reconciliation, and optimizing workflows. E3 Design-Build Contractor (https://e3es.com) offers a comprehensive approach by combining AFDD deployment with facility upgrades, such as high-efficiency HVAC systems and advanced building automation. These integrated solutions address immediate inefficiencies while supporting long-term operational goals.

Switching from reactive maintenance to proactive diagnostics fundamentally changes how public buildings operate. Instead of waiting for equipment to fail or relying on sporadic manual inspections, AFDD provides continuous monitoring that identifies issues early and quantifies their financial impact. This approach not only reduces energy waste but also ensures more comfortable and reliable environments for the communities these facilities serve.

FAQs

What data points does AFDD need from my BAS?

AFDD works by gathering key data points from your Building Automation System (BAS). This includes control setpoints, sensor readings (while accounting for any possible biases), and operational variables. These inputs are crucial for identifying and diagnosing faults, which can significantly enhance your facility’s energy efficiency.

Will AFDD work with older HVAC controls and sensors?

Automated fault detection and diagnosis (AFDD) systems can work with older HVAC controls and sensors, but their compatibility largely depends on the technology and condition of the existing setup. In some cases, older systems might require extra equipment or upgrades to enable full AFDD functionality.

How do we start an AFDD pilot in one building?

To kick off an AFDD (Automated Fault Detection and Diagnostics) pilot, here’s what you need to do:

• Check Data Readiness: Make sure your Building Automation System (BAS) is gathering accurate and reliable data. Without good data, the system won’t perform as expected.
• Set Goals: Clearly define what you want to achieve. Are you aiming to reduce energy use, improve operational efficiency, or both? Having clear objectives will guide your efforts.
• Integrate and Monitor: Connect the AFDD system to your BAS, then keep an eye on operations. Regularly review the fault reports it generates to understand how the system is performing.

Once you’ve reviewed the pilot’s results, make adjustments as needed before rolling it out to additional buildings. This step ensures the system is ready for broader implementation.
