HVAC commissioning troubleshooting ensures your system operates efficiently and avoids costly issues. Skipping this step can lead to higher energy bills, inconsistent temperatures, and reduced equipment lifespan. Here’s what you need to know:
- Why It Matters: Proper commissioning can boost efficiency by 15–25% and resolve up to 70% of first-year problems. For example, Parkway West High School saved $98,600 annually by addressing performance issues.
- Key Steps:
- Safety First: Turn off power, verify grounding, and wear proper PPE.
- Inspect Components: Check for leaks, loose connections, and misaligned parts.
- Test Performance: Measure airflow, refrigerant levels, and system pressures.
- Document Everything: Log issues, take photos, and secure sign-offs.
- Real Impact: Effective troubleshooting ensures consistent temperatures (±2°F) and extends equipment life by reducing wear.
This process not only saves money but also ensures compliance and reliability. Follow these steps to maintain comfort, efficiency, and long-term performance.

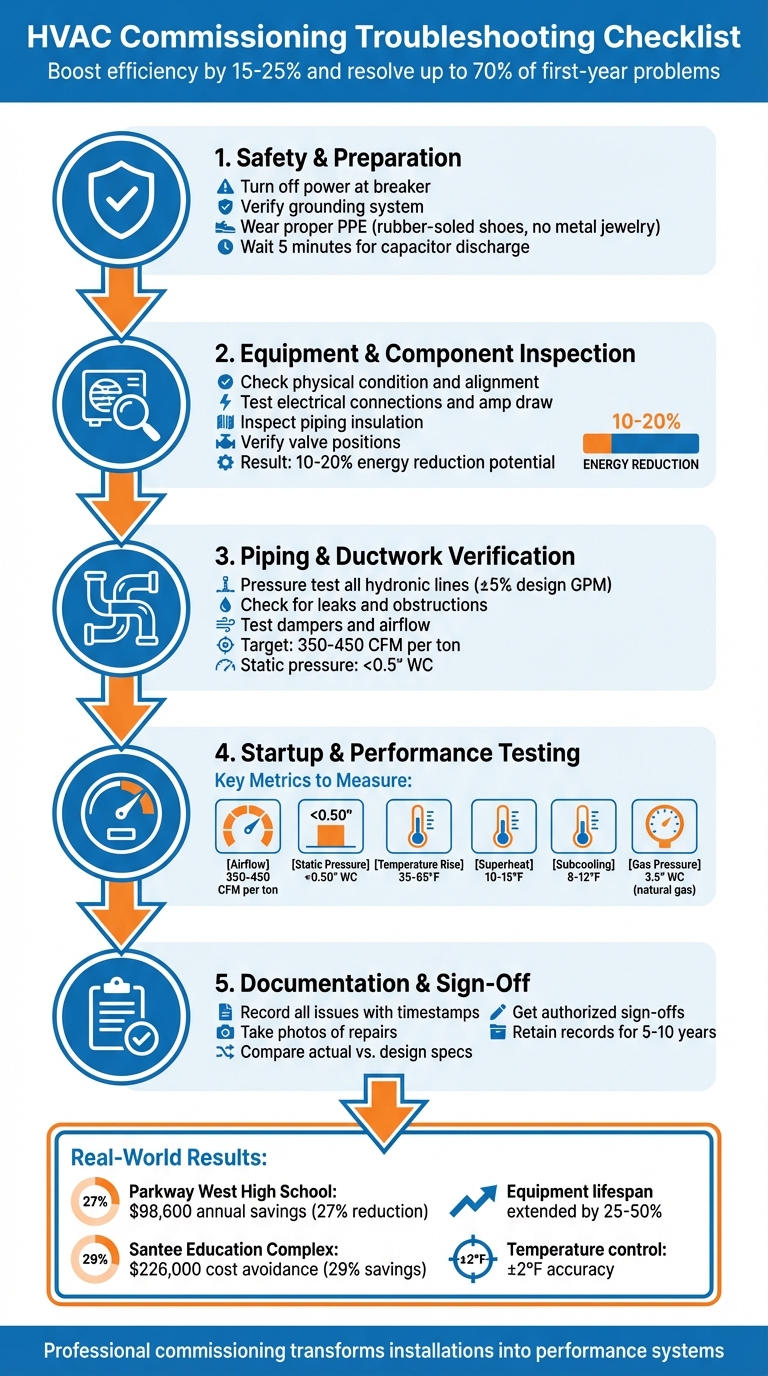

HVAC Commissioning Troubleshooting Process: 5 Essential Steps for System Efficiency
Start up and Commissioning of HVAC Rooftop Units & Troubleshooting Factory Issues
sbb-itb-034f8e1
Safety and Preparation Checks
Before diving into any work on HVAC systems, it’s critical to prioritize safety and ensure the equipment is ready for servicing. Gary Musaraj, Owner & EPA-Certified HVAC Professional at Jupitair HVAC, emphasizes:
"Electricity in HVAC systems can kill you instantly. Always turn off power at the breaker and verify it’s off with proper testing equipment." – Gary Musaraj [8]
The steps below outline how to confirm electrical safety, check thermostat functions, and ensure proper personal protective equipment (PPE) is in place before starting.
Check Power Supply and Electrical Safety
Start by turning off the power at the circuit breaker. Use a non-contact voltage tester at the equipment disconnect to confirm there’s no electricity flowing. Always test the voltage tester on a live circuit first to ensure it’s working correctly [8]. Once the power is off, wait at least five minutes to allow any capacitors to discharge. Capacitors can store dangerous amounts of energy even after the system is turned off. To prevent accidental reactivation, secure the breaker using lockout/tagout procedures or electrical tape.
Next, measure the supply voltage to confirm it falls within 10% of the equipment’s nameplate rating. Also, verify that the grounding system is intact and that Ground Fault Circuit Interrupter (GFCI) protection is functioning properly. If you’re working on outdoor or rooftop units, inspect the area for potential hazards like bee, wasp, or hornet nests near electrical access panels [1].
Once the power is safely secured and grounding confirmed, you can move on to thermostat checks.
Test Thermostat Settings and Basic Functions
The thermostat acts as the brain of the HVAC system, initiating the "Sequence of Operations" that controls heating and cooling [10]. Before troubleshooting any mechanical issues, make sure the thermostat is programmed correctly and set to the proper mode. It’s easy for simple errors – like accidentally setting the system to "Heat" during warm weather – to lead to unnecessary diagnostics [11].
Test the thermostat’s ability to switch between heating, cooling, and emergency heat modes. Ensure the fan setting (whether "Auto" or "Continuous") responds accurately to thermostat commands. Additionally, verify that the thermostat’s displayed temperature matches the actual room temperature. Any discrepancies here could point to calibration issues or sensor malfunctions.
Confirm PPE and Safety Protocols
Proper PPE is non-negotiable when working on HVAC systems. Always wear dry, rubber-soled shoes to reduce the risk of electric shock, and remove any metal jewelry like rings, watches, or bracelets that could conduct electricity [8]. If you’re handling refrigerants or chemicals, confirm that an eye wash station is nearby in case of accidental exposure [1].
For rooftop equipment, assess potential hazards such as building edges or sloped surfaces. Make sure emergency shutdown procedures are clearly understood, fire alarms are integrated properly, and pressure relief valves are operational [2][7]. Taking these precautions ensures a safer working environment and minimizes risks during troubleshooting or commissioning.
Equipment and Component Inspection
Once safety is confirmed, the next step is to assess the physical condition and wiring of all components. The aim here is to identify any obvious problems – like misaligned parts, loose connections, or missing accessories – that could impact the system’s performance.
Check Physical Condition and Compliance
Start by inspecting chillers, air handlers, and compressors to ensure they are securely mounted and properly aligned. Misaligned ductwork or piping can strain connections and reduce airflow efficiency [2]. Look for visible signs of wear, corrosion, or damage, and check for leaks in both ductwork and piping. Even minor air or water leaks can impact efficiency [2].
Confirm that the fan rotates in the correct direction relative to the discharge ducts. A fan spinning the wrong way increases air resistance and affects system performance [1]. Additionally, ensure water coils are piped for counterflow – with the supply pipe connected at the downstream airflow side – to meet design requirements [1]. Make sure the equipment has sufficient ventilation, proper lighting, and safe clearance for future maintenance [1].
Check Electrical Connections and Control Wiring
Electrical issues are one of the most common causes of HVAC system failures. Test the amp draw on compressor, blower, and fan motors, as deviations from manufacturer specs could signal motor issues or electrical imbalances.
Inspect all electrical connections to confirm they are tight and correctly terminated. Loose connections can generate heat, leading to component failure. Use a thermal imaging camera to spot hotspots that may indicate loose or failing connections [3]. For three-phase equipment, measure phase balance to prevent motor overheating [3]. Check that capacitor values align with specifications and that contactors and relays are functioning correctly. Also, test all safety controls, including high- and low-pressure cutouts, thermal limits, and emergency shutdown systems [3].
Afterward, move on to evaluate piping insulation and related accessories.
Inspect Piping Insulation and Accessories
Examine piping insulation for complete coverage and any damage that could lead to energy loss or condensation. Check that inlet strainers have working water pressure gauges, as these gauges help monitor pressure drops that might indicate a clogged or worn strainer screen [1]. Proper insulation and valve functionality are essential for identifying potential issues that could lead to inefficiencies.
Verify that valves are in the correct position and confirm that the Net Positive Suction Head (NPSH) meets the required specifications to avoid cavitation. For refrigerant-based systems, use appropriate gauges to ensure levels meet manufacturer guidelines and inspect for leaks. Thorough commissioning during this phase can lead to a 10-20% reduction in energy use and extend equipment life by 25-50% [9].
At E3 Design-Build Contractor, these detailed inspection steps are part of their approach to ensuring HVAC systems run efficiently and safely for years to come.
Piping and Ductwork Verification
After inspecting equipment, the next step is to ensure the distribution systems are functioning properly. These systems, which circulate air and water throughout the facility, play a critical role in maintaining performance. Verifying the condition of piping and ductwork helps avoid leaks, pressure issues, and airflow restrictions that could compromise the system’s efficiency.
Pressure Test Piping Systems
Start by pressure testing all hydronic lines, including chilled water, hot water, and refrigerant lines, to identify any leaks. Use a hydronic test kit to check flow rates, pressures, and temperatures. The water flow should stay within ±5% of the design GPM [9]. For air systems, static pressure testing requires installing test ports. Use a 3/8" drill bit with a sheath that exposes only the last ½", and seal the ports with 3/8" plugs after testing [12]. A manometer is essential for these tests – residential systems typically need a range of 0" to 5", while commercial systems may require up to 10". Ensure the manometer has a minimum accuracy of ±3% and a resolution of 0.01" water column [12]. Analog manometers must be zeroed and leveled before use. If the supply duct pressure exceeds 20% of the fan-rated pressure, it may indicate that the duct is undersized or improperly installed [12].
Check Ductwork for Leaks and Obstructions
Inspect ductwork for leaks, loose connections, or obstructions that could restrict airflow. Confirm that ducts are properly sized, securely mounted, and aligned with fan discharges to minimize air resistance. The total system airflow should typically fall within –5% to +10% of the design specifications, while individual air outlets should operate within ±10% of their design airflow [9]. If you notice low airflow or uneven distribution, address the issue by sealing leaks and rebalancing the system. Also, check for upblast connections or misaligned fan-to-duct interfaces that could disrupt airflow.
Test Dampers and Airflow Components
Verify that all zone dampers move freely and seal tightly to ensure proper zone control and bypass protection [3]. Measure static pressure throughout the system, which should generally stay below 0.5" water column (WC) [3]. Confirm that the total system CFM matches the design target, usually 350–450 CFM per ton [3]. Before performing airflow tests, make sure all supply registers and return grilles are fully open and unobstructed [3]. Additionally, inspect fire and smoke dampers following NFPA guidelines to ensure they are functional and compliant [1]. For systems with reheat coils, check that the piping is correctly oriented and that water flow rates are adequate for efficient heat transfer. These checks wrap up the verification phase, setting the stage for startup and performance testing.
Startup and Performance Testing
After verifying the piping and ductwork, the next step is to start up the system and test its performance. This phase is critical for confirming that everything operates as intended and for identifying any hidden issues. In many ways, the true success of an installation is determined after startup. Begin by addressing any physical obstructions and then proceed with system startup tests to ensure everything is functioning properly.
Clear Debris and Check Filters
Before starting the system, make sure all intake and exhaust vents are free of obstructions. This includes clearing away debris, snow, or even construction materials like glued screens that might block airflow [13]. Outdoor units often collect leaves, dirt, or leftover packaging that can immediately hinder performance. Indoors, check that filters are installed correctly and meet the system’s specifications. For instance, high-MERV filters can cause a pressure drop exceeding 0.20" WC if the return duct is undersized, leading to reduced airflow and additional strain on the blower motor [13]. Ensuring vents and filters are clear is a crucial step before startup.
Run System in Test Modes
Once the system is cleared, start it up and carefully observe the ignition sequence. Look for smooth inducer operation without any rattling or gurgling sounds [13]. The flame should establish quickly (within 4–6 seconds) and remain stable, with a steady blue color. Flames that lift, roll, or have yellow tips often indicate issues with fuel or venting. Manually test safety switches, such as high-limit, rollout, and condensate float switches, to confirm they are functioning as intended [13].
Pay attention to unusual noises like whistling, which could signal an undersized return or a restrictive filter. As Samantha Reyes of The Furnace Outlet advises:
"One breaker trip can be a fluke. Two is a pattern. Three means stop" [14].
Once the system demonstrates proper ignition and safety operations, move on to measuring its performance.
Measure Performance Metrics
Using calibrated instruments, record the system’s performance and compare it to its design specifications. Key measurements include:
- Airflow: Measure total airflow with a flow hood or anemometer, aiming for 350–450 CFM per ton.
- Static Pressure: Use a manometer to check total external static pressure, which should stay below 0.50" WC for most high-efficiency furnaces [3][13].
- Temperature Rise: Calculate this by subtracting the return air temperature from the supply air temperature. The typical range is 35–65°F [13].
- Refrigerant Metrics: For refrigerant systems, verify superheat (10–15°F) and subcooling (8–12°F) using a digital manifold [3].
- Gas Pressure: Check manifold pressure with a manometer – 3.5" WC for natural gas and 10–11" WC for propane [13].
- Gas Input: Use the gas meter to confirm the input matches the system’s nameplate BTU rating [13].
Document all these readings on performance data sheets. These records will serve as a baseline for future maintenance and troubleshooting, ensuring the system continues to operate efficiently.
Documentation and Resolution Logging
Once testing and performance evaluations are complete, the next essential step is to document all findings and fixes. This process isn’t just about keeping records – it plays a key role in ensuring long-term system reliability, meeting regulatory requirements, and cutting down on future maintenance expenses. Well-documented systems often experience a 25–50% boost in equipment lifespan and can lower maintenance costs by 15–30% [9]. Without detailed records, recurring problems are more likely to slip through the cracks. By thoroughly documenting everything after performance validation, you create a clear, traceable record of every corrective action taken.
Record Issues Using a Checklist
For every issue, log details like equipment tags, serial numbers, and timestamps [6]. Include the problem’s description, its impact, root cause, and the corrective action taken. Using a consistent process – Identify → Root Cause → Solution → Implement → Verify → Document – helps ensure no critical steps are skipped. Digital commissioning tools make this even easier by allowing real-time data entry with automatic timestamps, reducing errors caused by delayed recording. Always compare actual performance metrics with design specifications (e.g., actual CFM versus design CFM) to establish benchmarks [6]. These records form the backbone of visual verifications and final approvals.
Take Photos of Issues and Repairs
High-quality photos are a must for documenting issues and their resolutions. They provide clear visual evidence of compliance and help convey details that written descriptions might miss [6]. For example, photos can highlight safety hazards, like equipment placed too close to roof edges, or show the orientation of components such as piping and coil connections. Environmental factors, like the spacing between exhaust vents and air intakes, should also be captured [1]. These images not only help identify hidden problems but also serve as valuable reference material for future training [2]. Combined with written logs, photos significantly enhance the overall quality of your documentation.
Get Sign-Offs for Each Section
Securing signatures – whether digital or physical – from authorized personnel for each completed checklist section adds a layer of formal verification [4]. This step confirms that all deficiencies have been addressed according to the design specifications and establishes clear accountability. Centralize issue logs with unique IDs, responsible parties, corrective actions, and sign-off dates [4]. Importantly, functional testing should only proceed once all component checklists are officially signed off. Involving an impartial Commissioning Authority (CxA) to review and sign off on these checklists ensures the system aligns with the owner’s goals [4]. Keep these signed-off records for 5–10 years, particularly in industries with strict regulations, like healthcare [6].
Conclusion
A well-structured HVAC commissioning checklist safeguards your investment while ensuring your system operates at peak performance. Professional commissioning can boost efficiency by 15–25% and help avoid up to 70% of first-year issues, keeping energy costs predictable. On the flip side, skipping this systematic approach could lead to energy bills overshooting projections by as much as 45% [3].
Beyond just saving money, detailed inspections uncover root causes of potential issues and ensure all system components work together seamlessly. Safety checks confirm that essential features – like pressure relief valves, fire dampers, and electrical grounding – are functioning properly, protecting both occupants and equipment. Plus, thorough documentation establishes a performance benchmark that simplifies maintenance and supports warranty claims. This combination of safety, inspections, and documentation forms the backbone of system reliability highlighted throughout this article.
Gary Musaraj, Owner & EPA-Certified HVAC Professional at Jupitair HVAC, sums it up perfectly:
"Professional commissioning transforms installations into performance systems" [3].
This transformation delivers consistent temperature control within ±2°F of setpoints, extends equipment life by minimizing wear, and ensures the operational dependability critical for facilities like schools and healthcare centers.
The results speak for themselves. Parkway West High School in Chesterfield, Missouri, achieved 27% annual energy savings, translating to $98,600 in cost reductions [5]. Similarly, the Santee Education Complex in Los Angeles reported 29% energy savings, avoiding $226,000 in costs [5]. These examples highlight the tangible benefits of following a thorough commissioning process, from initial safety checks to final performance evaluations.
A detailed, step-by-step checklist is the key to long-term system reliability and efficiency. Whether you’re overseeing a new installation or troubleshooting an existing setup, this structured approach ensures energy efficiency, operational reliability, and occupant comfort – while keeping costs under control.
For expert help in optimizing your HVAC system, consider reaching out to E3 Design-Build Contractor for customized, energy-efficient solutions.
FAQs
What should I check first if my HVAC system won’t start during commissioning?
Before anything else, conduct a pre-start safety check. This brief inspection, which usually takes about 30–60 seconds, is designed to confirm that essential safety measures are in place. It also helps spot any potential hazards that could interfere with the system starting up or operating safely during commissioning. Skipping this step could lead to avoidable problems, so it’s a must for ensuring everything runs smoothly.
Which tools do I need to measure airflow, static pressure, and refrigerant charge correctly?
To get precise measurements, you’ll need the following tools:
- Airflow: Use dual temperature thermometers and thermocouples for Delta T tests.
- Static pressure: Rely on manometers or pressure gauges.
- Refrigerant charge: Equip yourself with manifold gauges, temperature probes, and pressure gauges.
These instruments are key for accurate HVAC diagnostics and troubleshooting.
When should I stop troubleshooting and bring in a commissioning professional like E3 Design-Build Contractor?
If you’ve gone through the diagnostic checklist, double-checked components, and tackled common problems but your HVAC system is still falling short, it’s time to bring in a professional like E3 Design-Build Contractor. Persistent issues with refrigerant levels, airflow, controls, or safety devices – even after detailed inspections – call for the expertise of a qualified commissioning specialist. They can ensure your system operates correctly and meets all required standards.
