Smart LED systems are revolutionizing facility management by integrating lighting with building automation systems like HVAC and security. This interoperability improves energy efficiency, lowers costs, and enhances occupant comfort. For facility managers, the key lies in understanding how communication protocols like Zigbee, Thread, Bluetooth Mesh, BACnet, and DMX512 enable seamless connections between devices and systems.
Key Takeaways:
- Energy Savings: Smart LEDs can cut energy use by up to 50% through features like occupancy sensors and daylight adjustments.
- Open Standards: Using protocols like DALI-2, BACnet, and Thread ensures flexibility and avoids vendor lock-in.
- Integration Challenges: Legacy systems, proprietary technologies, and cybersecurity risks require careful planning.
- Phased Rollouts: Start with small-scale pilots to test integration with existing infrastructure.
- Security: Encrypt data, segment networks, and perform regular audits to protect against cyber threats.
By focusing on open standards, conducting system audits, and leveraging gateways for protocol translation, facility managers can build efficient, future-ready lighting systems. Partnering with experienced contractors ensures smooth integration and long-term success.
Can Standards Unify Data Streams for Smart Lighting Solutions
sbb-itb-034f8e1
Communication Protocols for Smart LED Systems
For facility managers looking to create interconnected smart LED systems, understanding communication protocols is key. These protocols dictate how devices exchange information within a lighting network and integrate with larger building automation systems. They influence everything from installation costs to long-term adaptability. Here’s a breakdown of the wireless and wired protocols driving these systems.
Zigbee, Thread, and Bluetooth Mesh
Wireless mesh protocols play a critical role in enabling communication for smart LED systems. Zigbee, operating on the 2.4 GHz band, is based on the IEEE 802.15.4 specification and overseen by the Connectivity Standards Alliance (CSA) [5]. Its mesh network design allows devices to relay signals via intermediate nodes, enhancing network reliability. Impressively, a single Zigbee network can support up to 65,000 nodes [5].
Thread, on the other hand, is built on IPv6, offering native IP compatibility [6]. This makes it easy to integrate with other IP-based networks while ensuring secure communication through end-to-end encryption. Thread networks can support millions of devices [6] and boast a wireless range of up to 250 meters, which is significantly greater than Zigbee’s 100-meter range [6]. Additionally, Thread forms the backbone of the Matter standard, simplifying device discovery and integration [5].
Bluetooth Mesh presents another wireless option, ideal for smart LED communication. However, it requires careful radio frequency (RF) planning and compliance with FCC Part 15 regulations [5].
BACnet and DMX512
While wireless protocols provide flexibility, wired solutions like BACnet and DMX512 are essential for integrating smart LEDs into broader building automation systems. BACnet, widely used in the United States, is defined by ASHRAE Standard 135 and recognized internationally as ISO 16484-5 [7]. It facilitates communication between devices from various manufacturers, enabling unified management of HVAC, lighting, and security systems. This interoperability is crucial for facilities aiming to optimize energy use and streamline operations.
"BACnet, defined in ASHRAE Standard 135 and adopted as ISO 16484-5, provides interoperability across manufacturers." – Smart Building Authority [7]
BACnet operates across three layers: the Field Layer (sensors and actuators), the Automation Layer (direct digital controllers), and the Management Layer (operator dashboards) [7]. For smart LED systems without native BACnet support, protocol translation middleware or gateways can bridge the gap [7]. When selecting devices, facility managers should review the Protocol Implementation Conformance Statement (PICS) to verify supported BACnet objects and services [7]. Devices tested for interoperability carry the BACnet Testing Laboratories (BTL) mark, ensuring compatibility at a specific profile level [7].
DMX512, standardized under ANSI E1.11, is another wired protocol tailored for high-speed lighting control and automation [5]. It requires dedicated wiring and structured circuit design, making it ideal for installations that demand precise, dynamic lighting programs within a unified system [5].
Benefits of Interoperable Smart LED Systems

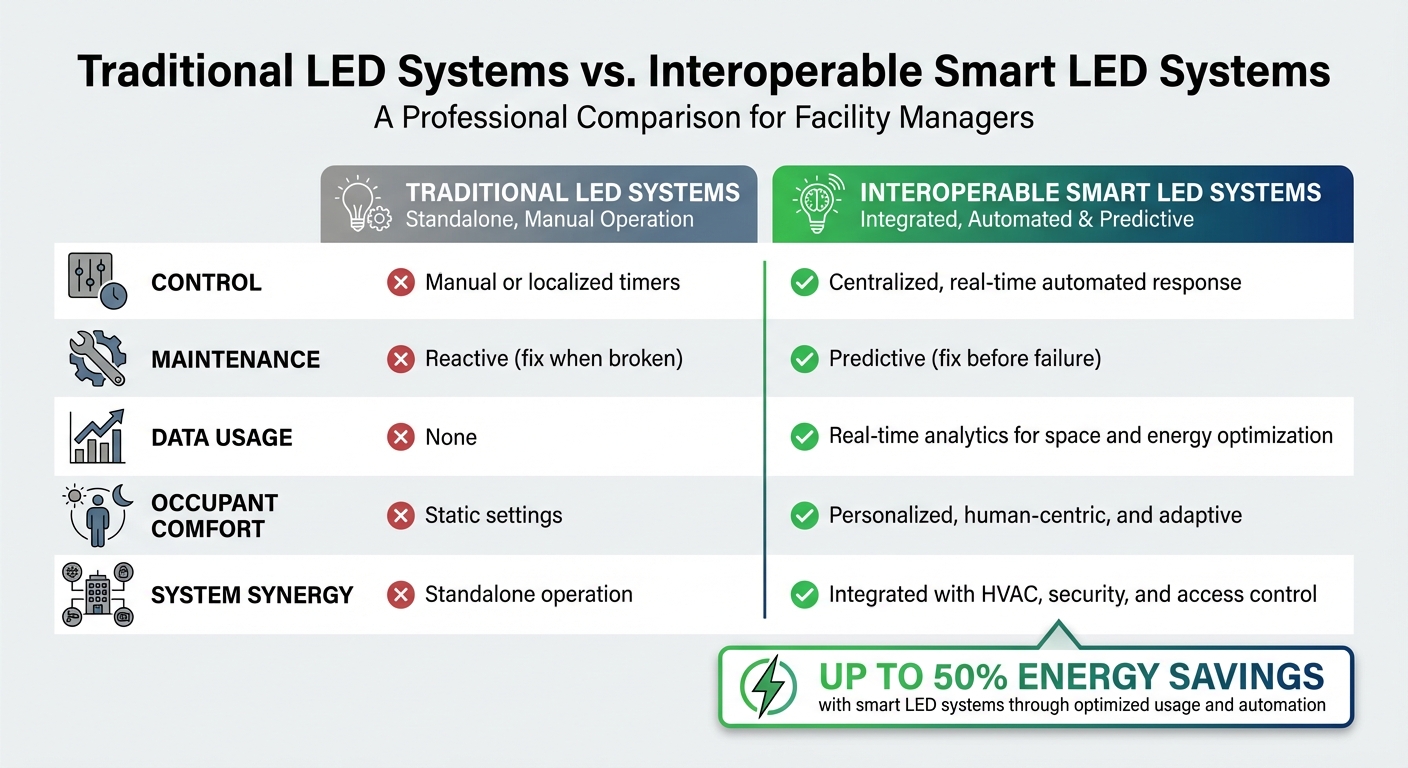

Traditional vs Smart LED Systems Comparison for Facility Managers
Smart LED systems, built on robust communication protocols, offer both operational efficiency and financial advantages.
Energy Savings and Lower Operating Costs
These systems integrate features like occupancy sensors, daylight harvesting, and environmental monitoring into a single network. This ensures lights are only used when necessary, cutting down on wasted energy and lowering utility costs [4]. Plus, existing lighting infrastructure doubles as a platform for collecting real-time data on space usage and system performance [4].
"Lighting infrastructure already exists in virtually every building… When connected to centralized software platforms, connected lighting systems can function as a distributed data-collection network." – Arati Sakhalkar, Project Manager, Affiliated Engineers, Inc. [4]
Power over Ethernet (PoE) technology further reduces costs by combining power and data delivery into one cable. The IEEE 802.3bt (PoE++) standard supports up to 90 watts of power, enough to run multiple light fixtures from a single switch [2]. This eliminates the need for separate electrical wiring, cutting down on installation time and materials [2]. Additionally, real-time sensor data enables predictive maintenance, helping identify potential issues before they escalate, which minimizes emergency repairs and labor expenses [4].
These measures not only save money but also contribute to creating more responsive and comfortable spaces.
Centralized Control and Improved Occupant Comfort
Centralized control systems go beyond saving energy – they enhance both operational efficiency and occupant experience. By integrating lighting, HVAC, and security into one platform, these systems simplify management [10][12]. For instance, if occupancy sensors detect an empty conference room, the system can automatically dim the lights and adjust HVAC settings, preventing unnecessary energy use without requiring manual input [8][9].
Occupant comfort also benefits significantly. Human-centric lighting (HCL) technology, which uses tunable white light to mimic natural daylight patterns, supports circadian rhythms. Research suggests this can boost mood, productivity, and overall well-being [3]. Facility managers can further enhance the experience by offering mobile apps or portals where users can provide feedback or request services, fostering a more responsive environment [9][10]. Additionally, sensor data provides insights into usage patterns, enabling better space planning [8][11].
| Feature | Traditional LED Systems | Interoperable Smart LED Systems |
|---|---|---|
| Control | Manual or localized timers | Centralized, real-time automated response |
| Maintenance | Reactive (fix when broken) | Predictive (fix before failure) |
| Data Usage | None | Real-time analytics for space and energy optimization |
| Occupant Comfort | Static settings | Personalized, human-centric, and adaptive |
| System Synergy | Standalone operation | Integrated with HVAC, security, and access control |
Common Challenges in Implementing Interoperable Systems
Facility managers encounter several hurdles when integrating smart LED technologies into existing buildings. Being aware of these challenges early on can help prevent costly errors and system breakdowns.
Legacy System Compatibility
One of the biggest obstacles is merging modern smart LEDs with outdated infrastructure. Many buildings still rely on Building Automation Systems (BAS) from the 1980s and 1990s, which often lack cloud connectivity or modern APIs [14][15]. Older electrical panels and controllers may not meet the power demands or communication speeds required by smart LED drivers. Additionally, data silos can block lighting systems from syncing with maintenance management software (CMMS), meaning sensor alerts fail to trigger work orders or update asset health records automatically [14][15]. This disjointed setup often results in "technology fatigue", where managing multiple dashboards and vendor-specific support becomes overwhelming [14].
"Smarter tech isn’t the only goal anymore. Now, teams want tech that feels invisible – simple, reliable, and tightly aligned with core operations." – National Facility Contractors [14]
To avoid these issues, conduct a thorough audit of every legacy asset and its existing protocol (e.g., BACnet, Modbus) before retrofitting. This step helps identify necessary gateways and allows for a more accurate integration budget [15].
Proprietary systems add another layer of complexity to these technical challenges.
Vendor Lock-In and Protocol Fragmentation
Proprietary systems can create significant risks. For example, in early 2023, Minnechaug Regional High School in Massachusetts faced a year-long struggle to control 7,000 smart lights after their lighting vendor went out of business. They had to invest in custom replacement equipment just to regain basic functionality [17]. This case underscores why 34.43% of business leaders cite interoperability with legacy systems as the biggest barrier to adopting smart building technology [10].
The lighting industry is fragmented, with various protocols like DALI-2, Zigbee, Thread, Bluetooth Mesh, and BACnet, alongside proprietary standards. Without careful planning, you could end up with "smart" components that don’t communicate effectively. For instance, while older systems like DALI-1 had limited compatibility, newer standards like DALI-2 require rigorous third-party testing to ensure cross-vendor functionality [17].
To mitigate these risks, prioritize open communication standards from the outset. Choose components certified by organizations like Zhaga, NEMA, or DALI D4i to ensure hardware compatibility [1]. Insist on warranties that cover both hardware and software, and confirm that your organization retains administrative control over the system. This ensures you won’t be locked out if a vendor exits the market [17].
Integration issues also bring cybersecurity concerns into focus.
Cybersecurity Risks
The interconnected nature of smart LED systems introduces vulnerabilities that can compromise entire building networks. A single sensor with weak security can expose the system to cyber threats [11]. Alarmingly, over 70% of IoT devices are never updated from their default factory credentials, and 4 in 10 connected commercial buildings have active cybersecurity vulnerabilities in their BAS or IoT infrastructure [15].
"A major hurdle… is the fact that smart technologies are driven by a multitude of IoT devices and sensors, which are potentially susceptible to cyber threats." – Charlie Green, Senior Research Analyst, Comparesoft [13]
When contractors manage individual devices in isolation, they often leave security gaps that are hard to identify across the entire system [9]. With 75.89% of U.S. facility managers ranking health and safety – including cybersecurity – as a top priority [10], addressing these risks is non-negotiable.
To strengthen security, segment networks with firewalls and DMZs to isolate lighting and building controls from corporate IT systems [15]. Encrypt all data exchanged between devices, gateways, and cloud platforms [16]. Implement role-based access control (RBAC) to limit system access based on user roles [16]. Regular security audits are crucial for identifying vulnerabilities, especially as firmware and software updates can introduce new risks [16]. These steps not only enhance security but also tackle the broader challenges of legacy system integration and vendor dependency.
How to Integrate Smart LEDs with Building Automation Systems
Integrating smart LEDs into building automation systems (BAS) requires a well-thought-out technical plan. With the global BAS market expected to hit $112.1 billion by 2026 [18], the push for unified control systems is stronger than ever. However, facility managers often face challenges in bridging "Front-End" protocols (like user interfaces) with "Back-End" protocols (such as 0-10V or DMX512 dimming), while ensuring these systems align with BAS protocols like BACnet or Modbus [19][21].
The complexity arises from differences in protocol logic. BAS protocols are object-oriented, where each device has a unique identifier, while Networked Lighting Controls (NLC) are typically procedure-oriented [19]. To enable seamless communication, integrators must map these distinct structures. Modern smart buildings increasingly rely on unified IP networks, allowing systems like lighting, HVAC, and security to interact through a centralized BAS [18]. Below are practical steps for achieving smooth integration.
Using Gateway Devices and Middleware
Gateways play a key role in translating data between smart LED systems and legacy infrastructure. These devices convert protocol data, such as translating LoRaWAN sensor outputs into BACnet/IP commands, enabling compatibility between modern sensors and older controllers.
"The intelligence of a modern lighting system lies in its controls. Understanding the architecture of DALI, PoE, and wireless mesh networks, and how they integrate with a Building Management System (BMS), is key to unlocking deep energy savings and creating truly responsive, future-proof buildings." – Jason David, LED Learning [3]
A real-world example comes from Trieste, Italy, where a project involving over 100 residential buildings used Milesight UC100 Controllers and UG56 LoRaWAN Gateways. These devices were integrated with Niagara controllers via BACnet/IP, enabling real-time energy monitoring without disrupting tenants during installation [21]. The wireless setup avoided costly rewiring while maintaining compatibility with the existing BAS.
To prevent smart lighting traffic from slowing down your corporate LAN, consider setting up a utility network dedicated to IoT devices [2]. Power over Ethernet (PoE) is especially effective here, with the IEEE 802.3bt (PoE++) standard providing up to 90 watts of power – enough to support high-performance smart LED fixtures and their controllers [2].
| Component | Function in Integration | Key Protocols |
|---|---|---|
| Smart Sensors | Collect real-time data (occupancy, light levels) | LoRaWAN, Zigbee, Bluetooth |
| IoT Controllers | Process sensor data and execute logic | BACnet, Modbus, MQTT |
| Gateways | Translate protocols and bridge to the cloud | BACnet/IP, LoRaWAN to Ethernet |
| Software/BMS | Centralized dashboard and data analytics | Niagara Framework, Cloud APIs |
These tools enable a step-by-step integration process that minimizes disruption while ensuring compatibility.
Phased Implementation Approach
A phased rollout strategy is ideal for minimizing operational disruptions and validating system performance at each stage. Start with a pilot area – such as one floor or department – before scaling up. Wireless lighting control systems can be installed 70% faster than traditional wired setups [20], making them a great option for retrofits where downtime must be minimized.
Here’s a six-step framework for integration [19]:
- Plan for native integration: Identify and specify the gateways and controllers you’ll need.
- Map BAS touchpoints: Determine which BAS devices the lighting system must communicate with.
- Document operations: Create a detailed sequence of operations for each device.
- Assign NLC tasks: Clearly define what the lighting control integrator will manage.
- Assign BAS tasks: Specify responsibilities for the building automation integrator.
For example, a 38-story condominium in Montreal, Canada, incorporated over 1,200 LoRaWAN sensors and 140 controllers into the BuildUp! platform. By rolling out in stages, the facility managers achieved real-time, automated control without overwhelming the existing infrastructure [21].
"Networked Lighting Control systems often require rapid, interim programming while a Building Automation System will often require deliberate and specific programming." – C. Webster Marsh, Lighting Controls Association Contributor [19]
This phased approach ensures each stage is carefully tested, reducing risks and ensuring long-term success.
Working with Experienced Contractors
Once you’ve outlined your integration strategy, working with skilled contractors becomes crucial. BAS protocols often require precise, deliberate programming that differs from standard lighting controls [19]. Partnering with experts like E3 Design-Build Contractor ensures you have professionals who understand both lighting systems and BAS architecture.
E3 specializes in energy-efficient solutions for schools, healthcare facilities, and municipalities across Texas. With 100 years of combined experience, their team has the expertise to handle complex integrations, including middleware configuration (like the BACnet Driver for Niagara Framework) [21]. They also help organizations retain administrative control, avoiding vendor lock-in scenarios where access to systems could be lost if a supplier exits the market.
In one project, Milesight deployed 352 sensors and 126 AI cameras that combined LoRaWAN, AI, and 5G to monitor energy, water, HVAC, and lighting. This advanced integration optimized resource use and cut operational costs – an undertaking that required the expertise of seasoned professionals [21].
Best Practices for Facility Managers
Switching to interoperable smart LEDs requires careful planning to ensure technical compatibility and smooth integration. Following these practices can help you achieve lasting energy savings and improved operational efficiency.
Conducting Interoperability Audits
Before investing in smart LED systems, take a close look at your existing setup across three key areas: device-level (physical compatibility and basic functionality), intra-network (how devices communicate within the lighting system), and multi-network (integration with other systems like HVAC). This step-by-step evaluation can save you from expensive compatibility issues later on.
Start by identifying the communication protocols your building already uses. Does your system support technologies like Bluetooth Mesh, Zigbee, or Thread? Can your current cabling handle Power over Ethernet (PoE), which supplies up to 90 watts of power through a single cable? Knowing these details will help you decide if you need additional tools like gateways or middleware to connect older systems with newer technologies.
It’s also essential to ensure your hardware complies with industry standards like Zhaga, NEMA, and DALI D4i. Certifications from organizations such as the DALI Alliance confirm that components from various manufacturers will work together efficiently. For lighting design, tools that calculate the Unified Glare Rating (UGR) can help you optimize workspace lighting – aim for a UGR of ≤19 for tasks like general office work.
For better system performance and security, consider using dedicated IoT networks.
Prioritizing Open Standards
Choosing open standards helps you avoid the risks of vendor lock-in. Proprietary systems can become problematic if a manufacturer discontinues a product line or exits the market. Open protocols like DALI, Zigbee, and Thread allow you to integrate components flexibly and adapt over time.
Research shows that 34.43% of business leaders cite compatibility with older systems as the biggest challenge when adopting smart building technologies. Meanwhile, 87% plan to invest in these technologies, underscoring the need for platforms that integrate seamlessly with existing systems like CMMS, ERPs, and sustainability platforms.
Open standards also make phased implementation easier. For example, you can upgrade one area of your facility at a time instead of overhauling the entire system. Mesh networking protocols like Thread or Zigbee allow you to expand your system gradually, cutting upfront costs and minimizing disruptions – all while delivering energy savings of up to 50%.
When choosing vendors, ask about their system’s compatibility with your current building management systems and whether they offer remote monitoring through cloud-based platforms. Partnering with experts like E3 Design-Build Contractor can simplify the process, ensuring you have the right guidance for integrating both lighting systems and broader building automation technologies.
Conclusion
Interoperable smart LED systems bring lighting and building automation together using standardized protocols like DALI, PoE, and wireless mesh networks. These systems can cut energy use by up to 50%, lower operating costs, and enhance occupant comfort. At the same time, they create a network capable of collecting data for predictive maintenance and space analytics, offering a dual benefit of efficiency and insight [4].
To fully leverage these benefits while addressing potential challenges, open standards and thorough interoperability audits are critical. It’s important to evaluate your current infrastructure, including protocols and cabling, to prevent compatibility issues and avoid being locked into a single vendor. With urban populations projected to reach nearly 70% of the global total by 2050, the need for smart building technology will only grow [2].
"When connected to centralized software platforms, connected lighting systems can function as a distributed data-collection network that supports a wide range of operational and experiential use cases." – EC&M [4]
A phased implementation approach can help you test and refine integrations before committing to a full-scale rollout. This minimizes both disruption and upfront costs. Additionally, setting up separate utility networks for IoT devices can safeguard your corporate LAN, ensuring both security and performance remain intact [2].
For organizations navigating these complexities, expert guidance can make all the difference. E3 Design-Build Contractor (https://e3es.com) specializes in assisting Texas public entities – like school districts, healthcare systems, and municipalities – with these integrations. Their deep experience in LED lighting, building automation, and energy-efficient upgrades equips them to deliver immediate operational improvements while supporting long-term sustainability goals.
FAQs
Which protocol is best for my building – Zigbee, Thread, Bluetooth Mesh, BACnet, or DALI-2?
The right protocol for your building hinges on factors like its size, control requirements, and current infrastructure. DALI-2 works well for wired systems that demand precision and reliability. For retrofits, Zigbee and Thread offer scalable wireless solutions. Bluetooth Mesh is a great fit for smaller networks, while BACnet allows seamless integration of lighting with HVAC and security systems. If flexibility and interoperability are priorities in commercial settings, open standards like DALI-2 are worth considering.
Do I need gateways to connect smart LEDs to my existing BAS and legacy controls?
Gateways are typically necessary when connecting smart LEDs to existing Building Automation Systems (BAS) and legacy controls. They act as a bridge, facilitating smooth communication and ensuring compatibility between IoT-enabled lighting systems and older infrastructure.
How can I secure a connected lighting network without impacting my corporate IT network?
To keep a connected lighting network secure and isolated from your corporate IT network, it’s important to take a few key steps. Start with restricting physical access to the network hardware and ensure that only authorized personnel can interact with it. Use secure communication protocols to protect data as it moves through the system, and implement role-based user management to control who can access and manage the network.
Setting up a dedicated network, like VLANs or subnetworks, is another effective way to maintain separation. This ensures the lighting network operates independently, reducing the risk of cross-network vulnerabilities. For wireless networks, stick to best practices for security, such as managing interference and carefully selecting channels. These measures will help protect the lighting network without causing disruptions to your primary IT infrastructure.
