How to Plan an LED Retrofit for Existing Buildings

test :

Switching to LED lighting can save you 50%–80% on energy costs and cut maintenance expenses by up to 90%. LEDs last 50,000–100,000+ hours, far outliving traditional bulbs, and they improve lighting quality with features like dimming and occupancy sensors. Plus, utility rebates and tax incentives can cover 20%–70% of project costs, with payback periods often under 3–5 years.

Key Steps:

Audit Your Current System: Record fixture types, wattage, and energy usage.
Set Goals and Budget: Aim for energy savings, reduced maintenance, and better lighting quality.
Choose Retrofit Options: Decide between retrofit kits, full fixture replacements, or a hybrid approach.
Select LED Products: Match fixtures to your needs, focusing on efficiency, color temperature, and rebates.
Install Strategically: Plan phased installations to minimize disruptions.
Verify and Adjust: Test performance, fine-tune controls, and document results for long-term success.

With proper planning, an LED retrofit can significantly cut costs, improve lighting, and reduce your carbon footprint.

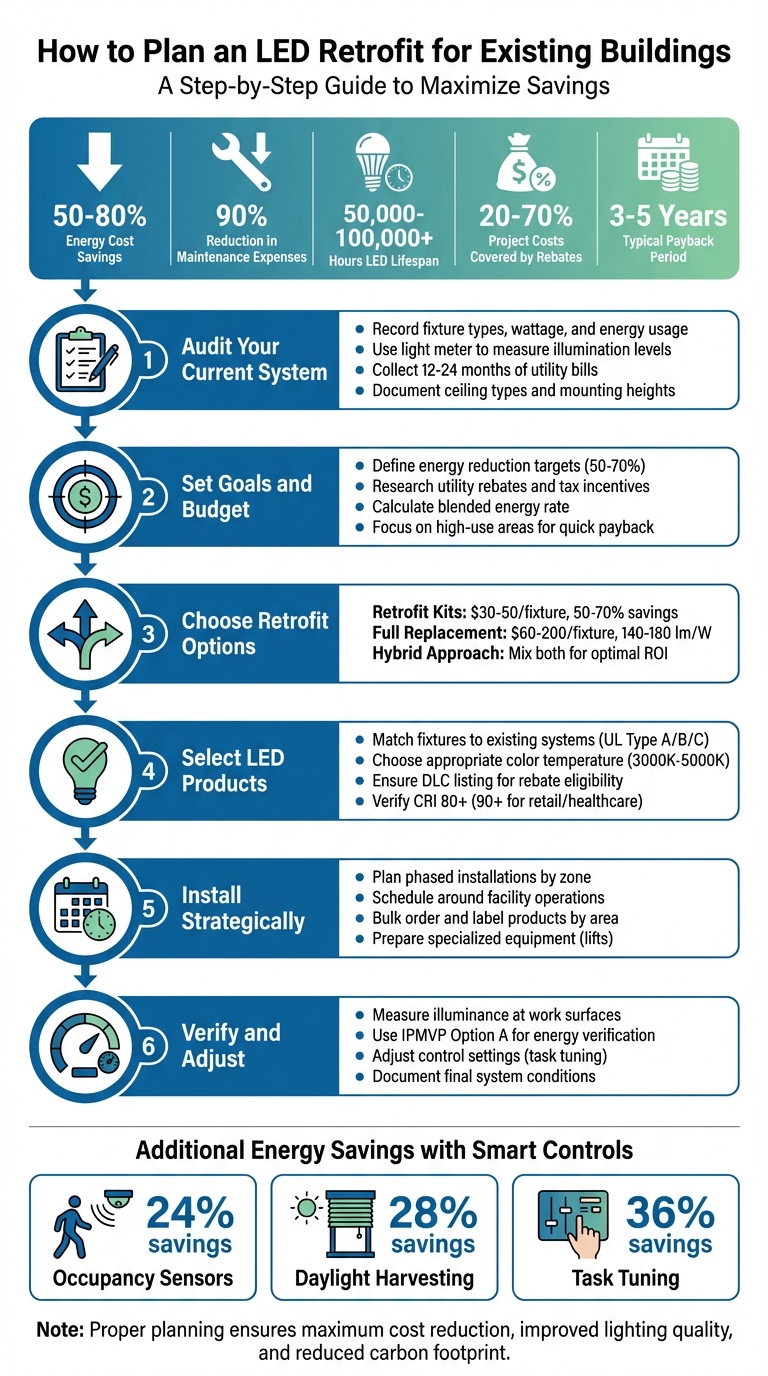

6-Step LED Retrofit Planning Process for Commercial Buildings

How to Retrofit Recessed Lighting | This Old House

Assess Your Current Lighting System

To get the most out of an LED retrofit, you need to start by understanding your current lighting setup. A detailed evaluation will help you pinpoint energy waste, prioritize fixture upgrades, and estimate potential savings.

Conduct a Lighting Audit

Begin by documenting every fixture in your building. Record key details like location, quantity, lamp type (e.g., T12, T8, or HID), wattage, and ballast type. Don’t forget to account for all operating hours, including those used by cleaning crews and exterior lighting that runs from dusk until dawn. Use a light meter to measure illumination levels (in foot-candles) at task height, such as desk level, to identify over-lit areas where you might reduce the number of fixtures.

In June 2023, Christopher Atkins, Co-Founder and CTO of Summa Energy Solutions, led a lighting retrofit at the Utah State Tax Commission office in Salt Lake City. By assessing the existing setup, he cut the total number of fixtures and removed 50% of the lamps in the remaining ones. With the addition of daylight harvesting controls, the project slashed the building’s lighting load by over 70% ^[3].

Collect 12–24 months of utility bills to establish a baseline for energy consumption. It’s also helpful to have floor plans that show HVAC locations, controls, and equipment rooms.

Bobby Graham, Chief Growth Officer at FSG, emphasizes: "With high-level information we can create a budget and ROI, but to actually create a firm price, a lighting contractor will need to walk the space" ^[7].

Inspect Fixtures and Electrical Infrastructure

Check each fixture for dirt, damage, or obstructions that might lower its output. Document the ceiling type (e.g., sheetrock, lay-in, or open), mounting height, and any obstacles like HVAC ducts or furniture that could complicate installation.

Determine whether your fixtures use electronic or magnetic ballasts, as some LED options are only compatible with specific ballast types. Also, note the voltage, number of lamps per fixture, and whether the fixtures are plenum-rated (used in air-handling spaces). Take clear photographs to ensure you have a complete record of the fixture conditions.

Calculate Current Energy Usage

To figure out your building’s energy consumption, use this formula: (Fixture Count × Fixture Wattage × Annual Operating Hours) ÷ 1,000 = Annual kWh ^[9]. Don’t forget to include ballast losses, as older systems often use extra power. Break down your calculations by space type for better accuracy – classrooms, for instance, have different usage patterns than gymnasiums.

In October 2022, PEC performed a lighting audit for a facility with 1,232 fixtures. Their calculations revealed the system consumed 372,510 kWh annually, costing the client $93,498 per year at a $0.251 blended rate ^[9].

When estimating financial savings, calculate the demand rate for kW reduction separately from the kWh rate for consumption for a more precise result.

In February 2025, Holistic Utility Solutions analyzed a warehouse retrofit. Using a blended rate of $0.118/kWh, they initially estimated annual savings at $6,214. However, by separating demand charges ($10.25/kW/month) and consumption costs ($0.05/kWh), the actual savings were only $4,189 – a 48% difference in accuracy ^[8].

Once you’ve established your baseline, you’ll have the foundation needed to set clear goals and outline your retrofit budget.

Set Project Goals and Budget

Once you’ve assessed your current lighting setup, it’s time to figure out what you want to achieve and how much you’re prepared to invest. Clear goals paired with a realistic budget will keep your project focused and help you track progress effectively.

Define Your Project Objectives

Start by identifying your main priorities: reducing energy use, lowering maintenance costs, and improving lighting quality. For most LED retrofits, cutting energy consumption is a key goal – after all, lighting typically makes up about 35% of energy use in commercial buildings ^[10]. Set a specific target, like reducing lighting costs by 50% to 70%, to give your team a clear benchmark ^[2]^[10].

LEDs are a game-changer when it comes to maintenance. They last between 50,000 and 200,000 hours, compared to just 7,000 to 15,000 hours for fluorescent bulbs ^[2]^[10]. This longer lifespan can slash maintenance costs by over 80% by eliminating frequent bulb replacements and reducing the need for ladder work ^[2].

Don’t overlook lighting quality. Better illumination improves comfort, safety, and productivity for building occupants. If your facility needs to comply with regulations – such as laws phasing out mercury-containing fluorescents – make sure to include those requirements in your objectives ^[2]^[10].

"A retrofit doesn’t just check the ‘green building’ box. It boosts your bottom line, lightens your maintenance load, and makes your spaces more comfortable and productive." – Zack Griffin, President & Founder, Evolved Lighting & Energy ^[2]

Once you’ve set your objectives, look into incentive programs to help cut upfront costs.

Research Available Incentive Programs

Utility rebates and federal tax incentives can significantly lower your initial expenses. By 2026, around 77% of U.S. territories will offer active incentive programs for commercial lighting upgrades ^[12]^[14]. Rebates might be prescriptive – providing a fixed amount per fixture (e.g., $40 per high bay) – or based on the total energy savings in kilowatt-hours ^[11]^[12].

The Section 179D tax deduction is another option, offering between $0.54 and $5.65 per square foot depending on energy savings and compliance with wage standards ^[11]. Nonprofits can take advantage of "Direct Pay", which converts tax credits into cash refunds ^[11]. Many organizations combine federal deductions, utility rebates, and state grants – a strategy called "triple-stacking" – to cover up to 60% of their project costs ^[11].

Make sure to get pre-approval for rebates before purchasing materials, as retroactive rebates are rare ^[11]^[13]. Also, check that your fixtures are listed on the DesignLights Consortium (DLC) Qualified Products List or are Energy Star certified, as these certifications are often required for rebate eligibility ^[11]^[12].

Create a Realistic Budget

Your goals will shape your budget, helping you allocate funds to areas with the greatest potential impact. Be sure to account for costs like fixtures, labor, hazardous material disposal, and equipment rentals ^[1]^[6]. To estimate savings accurately, calculate a "blended rate" by dividing your total utility bill by the total kilowatt-hours used over 6–12 months ^[9].

For example, in February 2025, US LED retrofitted 100 metal halide fixtures (400W each) with 100 LED high bays (150W each). With 3,744 operating hours, the project saved 93,600 kWh annually. At $0.13/kWh, this translated to $12,168 in savings. A $12,500 rebate reduced the net investment to $37,500, resulting in a 2.56-year payback period and a 39.1% first-year ROI ^[10].

Focus on high-use areas like warehouses or parking structures that operate 24/7, as these spaces tend to deliver the quickest payback ^[6]. When projecting long-term savings, use a conservative energy escalation rate – around 2.5% to 2.8% annually – to account for rising electricity costs over time ^[9].

With clear goals and a well-thought-out budget, you’re ready to choose the best retrofit strategy for your needs.

Choose Your Retrofit Approach

Once you’ve outlined your goals and budget, the next step is to select a retrofit approach that fits your facility’s specific needs. The three primary options – retrofit kits, complete fixture replacement, and hybrid solutions – each offer distinct benefits depending on your building’s condition, financial limits, and performance expectations.

Retrofit Kits

Retrofit kits allow you to upgrade by replacing internal components like lamps, drivers, and reflectors while keeping the original fixture housing intact. This option is ideal if your fixtures are structurally sound and you want to avoid significant ceiling disruption ^[15]^[21]. Installation is quick, typically taking about 10–15 minutes per fixture, which helps lower labor costs and reduces downtime ^[16]^[19].

These kits can deliver energy savings of 50%–70% and cost around $30–$50 per fixture, including materials and labor ^[15]^[21]. However, they generally provide 110–140 lumens per watt (lm/W), which is slightly less efficient than the 140–180 lm/W achieved by new LED fixtures. Additionally, their lifespan is shorter, lasting approximately 50,000–75,000 hours compared to the 70,000–100,000+ hours typical of new fixtures ^[16].

Retrofit kits work well in back-of-house areas like storage rooms, mechanical spaces, or standard offices where cost efficiency is a priority. They’re also a good choice for spaces with infrastructure challenges, such as asbestos-containing ceilings, where disturbing the existing setup is not advisable. However, make sure the wiring and sockets are in good condition; if not, a full fixture replacement may be necessary ^[18]^[21]. If your facility requires a significant boost in performance, you might want to explore other options.

Complete Fixture Replacement

Replacing fixtures entirely involves removing the old ones and installing brand-new, purpose-built LED luminaires. While the upfront cost is higher – ranging from $60 to $200 per fixture – this approach offers better energy efficiency (140–180 lm/W), modern aesthetics, and compatibility with advanced controls like occupancy sensors and daylight harvesting systems ^[16]^[17]^[21].

"Most facilities benefit from a hybrid approach – retrofitting office spaces and replacing fixtures in key areas like lobbies, warehouses, and exteriors for long-term value." – Scott Moore, Vice President, LightBulbs.com ^[21]

Complete replacement is ideal for client-facing areas such as lobbies, retail spaces, or conference rooms where aesthetics and performance matter most. It’s also necessary when existing fixtures are damaged – rusted, cracked, or with heat-stressed wiring that no longer meets safety standards ^[16]^[19].

For hard-to-reach locations that require lifts or scaffolding, the extended lifespan of 70,000+ hours can significantly reduce future maintenance costs ^[21]. Keep in mind that full replacements come with higher labor costs and disposal fees for old components like ballasts and metal housings ^[18]^[20]. However, utility programs often provide larger rebates for new fixtures, sometimes up to $120 per high-bay unit compared to $60 for retrofit kits, which can help offset the initial expense ^[16]^[22]. If your facility has varying needs, a hybrid approach might be the most effective solution.

Hybrid Solutions

A hybrid approach blends retrofit kits and new fixtures across different areas, allowing you to optimize both costs and performance ^[21]. For instance, you could use retrofit kits in standard offices and break rooms to save money, while opting for complete replacements in high-traffic lobbies, 24/7 warehouses, or outdoor spaces exposed to harsh conditions ^[15]^[21].

This strategy lets you allocate your budget where it will have the greatest impact, ensuring you meet your performance goals without overspending. Before committing to a full-scale rollout, it’s smart to pilot a few fixtures to confirm they fit well, distribute light evenly, and work seamlessly with your existing systems ^[15].

Select LED Products and Controls

Once you’ve decided on your retrofit approach, the next step is selecting the right LED products and control systems. This involves ensuring compatibility with your current setup, meeting performance standards, and choosing features that will help you save energy effectively.

Match LED Fixtures to Your Existing Systems

Start by identifying the types of lamps (like T12, T8, or T5), fixture dimensions (such as 1×4, 2×2, or 2×4), and the age and condition of your existing ballasts ^[15]^[3]. For tubular LED (TLED) replacements, understanding UL classifications is key:

UL Type A: Works with your current ballast but requires verification against the manufacturer’s ballast compatibility list.
UL Type B: Bypasses the ballast and connects directly to line voltage, so you’ll need to ensure your lampholders are suited for direct wiring.
UL Type C: Uses an external driver instead of a ballast, offering better dimming performance and broader compatibility ^[15]^[17].

Check that the LED dimensions and socket sizes align with your existing fixtures ^[15]. Since LEDs are directional, unlike traditional fluorescent bulbs, confirm that the beam angle and aperture provide even light distribution without creating dark spots ^[23]. If your ballast is over 10 years old, consider replacing it or opting for a ballast-bypass solution, as older ballasts often don’t work well with newer LED technology ^[15].

Before committing to a full installation, test your choices in a single room. This allows you to evaluate light color, distribution, and dimmer compatibility ^[15]^[23]. Additionally, review the manufacturer’s IES files to ensure the beam spread meets your requirements ^[23].

Once you’ve confirmed fixture compatibility, shift your focus to achieving the best lighting quality.

Choose the Right Lighting Quality

When selecting LED lighting, focus on delivered lumens, not just wattage. Aim for high efficiency – 120+ lumens per watt (lm/W) is a good benchmark ^[24]. The color temperature should match the purpose of the space:

3,000K (warm): Ideal for hospitality and retail spaces.
4,000K (neutral): Works well in offices and schools.
5,000K (cool white): Suited for warehouses and garages ^[24].

For color accuracy, look at the Color Rendering Index (CRI). A CRI of 80+ is suitable for most commercial spaces, but for areas like retail displays, art galleries, or healthcare facilities, opt for 90+ CRI ^[24]. Also, match the beam angle to your ceiling height – 60° beams are better for high ceilings (over 20 feet), while 120° beams work well for lower spaces ^[24].

Use photometric software like DIALux to determine the optimal fixture count and placement ^[24]. For environments exposed to dust or moisture, check the fixture’s Ingress Protection (IP) rating – IP65, for example, ensures resistance to water jets ^[24]. To qualify for utility rebates, choose DLC-listed (DesignLights Consortium) fixtures. These incentives can range from $0.10 to $0.35 per watt reduced ^[24].

Once you’ve addressed light quality, it’s time to integrate advanced controls for additional energy savings.

Add Advanced Controls

Incorporating advanced controls into your LED retrofit can significantly enhance energy efficiency. For example:

Occupancy sensors: Save around 24% of energy in enclosed rooms and warehouses.
Daylight harvesting: Reduces energy use by 28% in areas with natural light.
Task tuning: Adjusts light output to match actual needs, potentially saving 36% in over-lit spaces ^[17].

Choose a control system based on the size and requirements of your space:

Standalone controls: Best for small spaces with fewer than five occupants.
Room-based systems: Ideal for larger spaces with five or more occupants.
Centrally networked systems: Recommended for buildings requiring integration with HVAC or energy reporting systems ^[17].

For flexibility, consider Luminaire Level Lighting Control (LLLC), which integrates sensors and controllers directly into each fixture. This setup is particularly useful in spaces with variable occupancy or significant daylight ^[17].

If you’re retrofitting, wireless control systems (e.g., Bluetooth or DALI) are often the easiest to install, as they avoid the need for additional wiring. Check that your LED drivers are compatible with the selected control system, and ensure wireless protocols include features like "channel hopping" to prevent interference with other building systems ^[4].

"The next frontier of energy savings lies in bringing the lighting controls revolution to mainstream adoption in existing buildings via best practices." – Craig DiLouie, Education Director, Lighting Controls Association ^[17]

Advanced controls can also extend the lifespan of your LEDs by starting with dimmed settings and gradually increasing brightness to counteract lumen loss over time ^[4]. Finally, review local energy codes to confirm compliance with any required control strategies for lighting upgrades ^[17].

Plan Installation and Minimize Disruption

Once you’ve selected your products, the next step is to install them with as little disruption as possible. A well-thought-out plan ensures your facility continues to function smoothly while achieving the energy savings you’re aiming for. This phase builds directly on the groundwork laid during earlier assessments and planning.

Schedule Phased Installations

Breaking the retrofit into phases helps control costs, reduce downtime, and fine-tune results. Instead of overhauling the entire building at once, divide the project into manageable sections – like the warehouse, office spaces, or exterior lighting.

"To spread out the costs, the warehouse, office and exterior lighting are treated as three separate projects, a strategy that also allows the savings from the initial retrofits to help pay for later ones" ^[4].

This approach also ensures lighting levels are optimized for specific zones. For example, areas like pools or gymnasiums that require temporary closures should be scheduled during times when those spaces can safely shut down. At the Waukesha School District natatorium, Master Electrician Tom Cherone managed a retrofit of 42 1,000W metal halide fixtures with 240W LED high bays, achieving around 70% energy savings.

"The maintenance was also extremely time-consuming. We had to shut the pool down because you can’t have people around when you’re working with an aerial lift" ^[4].

For simpler projects, like tubular LED replacements, Instant Start LED technology can cut installation time significantly. These lamps allow installers to swap them out without removing the existing electronic ballasts ^[3].

Once your phased schedule is in place, shift focus to making sure installation day runs smoothly.

Prepare for Installation Day

Preparation is everything when it comes to a seamless installation. Start by bulk ordering products and labeling them clearly for each area to avoid delays. Juliann Rogers, Director of Energy at CKE Restaurants Holdings Inc., who oversaw a retrofit of 204 Hardee’s and Carl’s Jr. locations, highlighted the importance of this step:

"If you’re rolling out a lot of restaurants, for example, one little hitch like a backorder on something means you have to hold off on that store and it throws your whole schedule off" ^[4].

Conduct a one-to-one mock-up to confirm rewiring and light distribution. Plan for any specialized equipment you might need, such as aerial or scissor lifts, and schedule facility shutdowns if required. Ensure wireless controls are functioning properly and include fixture cleaning in your plans – this small step can improve light output by about 10% ^[4].

Once the installation is complete, it’s time to focus on empowering your team to manage the new system effectively.

Train Staff on the New Systems

To protect your energy savings and ensure a solid return on investment, your team needs to know how to operate and maintain the new systems. Offer thorough training on advanced controls like dimming, zoned control, and occupancy detection. Many modern LED fixtures are sealed units, so staff should understand how to replace entire fixture heads for easier long-term maintenance. Since LED drivers often fail before the light source itself, it’s also important to educate the team on the difference between the lamp and the driver, as well as how to handle driver replacements.

Establish a regular maintenance schedule for cleaning and driver replacements to keep the system performing at its best. Teach staff how to use monitoring systems to track energy savings and troubleshoot wireless connectivity issues, particularly in buildings with dense masonry. Lastly, confirm that any replacement parts meet original safety and performance certifications, such as UL and DLC, and remind staff to clean fixtures at least twice a year to maintain optimal light output ^[4].

For more personalized advice on LED retrofits that minimize disruptions and maximize savings, consider reaching out to E3 Design-Build Contractor.

Verify Performance and Adjust as Needed

After installation, it’s crucial to confirm that your new LED system meets both energy-saving goals and lighting quality expectations. This step is what separates a successful retrofit from one that falls short. It involves precise measurements, thoughtful tweaks, and detailed record-keeping.

Test Lighting Performance

Start by measuring illuminance, either in footcandles or lux, directly at work surfaces. Compare these measurements to the original photometric plans to ensure the lower-wattage fixtures are providing the required light levels ^[6]. Keep in mind that LEDs need about an hour to stabilize before accurate testing can begin ^[25].

To verify energy savings, use IPMVP Option A and measure wattage both before and after the retrofit ^[8]. Install energy loggers with a measurement uncertainty of ±1%, and monitor the system for at least two weeks under normal, non-holiday operating conditions ^[25]. Perform these measurements during times when daylight can be avoided, so you’re isolating the performance of your electric lighting system ^[25]. This ensures your results align with the energy-saving targets set during the planning phase.

If your system uses advanced controls like occupancy sensing or daylight harvesting, test each layer independently for at least two weeks. This helps identify their specific impact on energy savings ^[25]. Use data loggers to capture actual light usage patterns instead of relying on estimated schedules, as runtime accuracy is key. As Ira Nicodemus, Founder and President of Holistic Utility Solutions, explains:

"If the before and/or after runtime is off, the total savings would still be wrong" ^[8].

These verified measurements provide the foundation for adjusting your control settings.

Adjust Control Settings

Once you’ve verified performance, it’s time to fine-tune the system to optimize energy savings and user comfort. Many retrofitted spaces end up overlit, so consider task tuning – also known as high-end trim – to adjust maximum light output to match the specific needs of each area ^[17]^[4]. For example, calibrate sensors by tweaking sensitivity, time-out delays, and dimming thresholds based on real-world usage and the layout of the space ^[25].

"The installation, setup, and calibration of occupancy sensors, daylight sensors, and other lighting controls often involves manufacturer-specific steps and procedures that can significantly affect the control’s function and therefore the energy savings."
– EE Richman, Pacific Northwest National Laboratory ^[25]

If your system includes wireless controls, test signal strength throughout the building, especially in areas with thick walls or heavy masonry. Ensure the communication protocol uses channel hopping to avoid interference with other building systems ^[4]. Also, make sure manual controls are easy to use and logically zoned to prevent confusion among occupants ^[17].

Document Final System Conditions

Once you’ve made all the necessary adjustments, document the final system setup thoroughly. This documentation will be a valuable resource for future maintenance and troubleshooting. Take photos of test setups, measurement points, and panel conditions ^[25]. Record details like instrumentation specifications, final footcandle readings, and circuit power draws to establish a performance baseline ^[25]^[4].

Include manufacturer-specific settings for controls, such as time delays, sensitivity adjustments, and dimming thresholds ^[25]. Verify and record UL logos and DesignLights Consortium (DLC) certifications to confirm compliance with safety and performance standards ^[4]. Additionally, note any manufacturer instructions about clearances and operating temperatures to prevent potential heat damage to LEDs ^[4].

Finally, set up a maintenance schedule based on these documented conditions. For example, cleaning fixtures twice a year can boost light output by as much as 10% ^[4]. This detailed record will help you quickly identify whether future performance issues stem from equipment failure, dirt buildup, or changes in settings.

Conclusion

Undertaking a structured LED retrofit – from the initial audit and budgeting phase to selecting the right products and completing the installation – can deliver long-term savings in energy costs and maintenance. Start with a thorough lighting audit to understand your current setup and identify areas for improvement. From there, align your retrofit strategy with your budget to find the right balance between cost and performance for your specific needs.

Don’t forget about financial incentives. Utility rebates can sometimes cover as much as 50%–70% of the project expenses, significantly cutting down the payback period ^[2]. On average, commercial LED retrofits pay for themselves in three to five years, and with incentives, some facilities see even faster returns ^[5].

The advantages of LED retrofits go beyond just savings. They offer lower energy consumption, reduced maintenance demands, and enhanced comfort for building occupants. For example, LED lighting can reduce your facility’s lighting energy load by up to 80% ^[3]^[1], and LEDs typically last over 50,000 hours, far outlasting the 10,000 hours of fluorescent tubes ^[5]. Maintenance needs can drop by 80% or more, leading to fewer service calls, less downtime, and lower labor costs ^[2]. As Zack Griffin, President and Founder of Evolved Lighting & Energy, explains:

"Energy efficiency… really means – especially when we’re talking lighting – is more money in your pocket, fewer headaches for your maintenance team, and a better experience for the people inside your building" ^[2].

For public organizations like schools, healthcare systems, and municipalities, these savings mean more efficient use of taxpayer dollars and improved environments for students, patients, and staff. With these clear advantages, a well-executed LED retrofit can significantly enhance both operational efficiency and the overall experience for those using the space.

For expert assistance, consider partnering with E3 Design-Build Contractor.

FAQs

Do I need a professional lighting audit before retrofitting?

A professional lighting audit is a smart first step before upgrading your building’s lighting system. It pinpoints inefficiencies, evaluates the current setup, and identifies the most effective retrofit solutions. During the audit, experts review critical aspects like fixture types, wattage, lighting quality, and energy consumption. This ensures the retrofit aligns with energy-saving targets and safety regulations. Bringing in a professional can simplify the process and help you achieve the best possible results.

Should I use retrofit kits or replace the entire fixture?

When deciding, think about your fixtures’ condition, your budget, and what you hope to achieve. Retrofit kits are a budget-friendly and quick option if your existing fixtures are in good condition and compatible. On the other hand, full replacements make sense for fixtures that are outdated, damaged, or if you’re aiming for better aesthetics, enhanced lighting quality, or modern integrated controls. Retrofit kits keep costs and disruptions low, while replacements give you access to the latest technology without compatibility concerns.

How do I know if my project qualifies for rebates or tax incentives?

To determine if your project qualifies for rebates or tax incentives, start by researching programs offered by local utilities and state-specific initiatives. Utilities such as Austin Energy and Oncor often provide rebates for upgrades like LED lighting installations.

Keep detailed records of your energy usage and any planned improvements, as many programs require evidence of energy savings. For added clarity and support, consider working with an energy efficiency professional. They can help verify your eligibility and guide you through the application process.
