Water efficiency retrofits help reduce water usage in buildings by upgrading outdated systems with modern, low-water-use fixtures and technologies. This approach saves money, conserves resources, and aligns with regulatory requirements. Key takeaways include:
- Financial Savings: Water and sewer costs have risen by up to 400% in the last decade. Retrofits can lower operating expenses significantly, with potential savings of $240 million annually for federal agencies.
- Environmental Impact: Reducing water use decreases energy consumption for heating and processing, cutting carbon emissions.
- Compliance and Incentives: Federal laws and local codes encourage water efficiency. Rebates and tax incentives can offset retrofit costs.
- Assessment First: Begin by reviewing utility bills, inspecting systems, and using tools like submeters to identify inefficiencies.
- Indoor Solutions: Replace high-use fixtures (toilets, faucets, showerheads) with water-efficient models, install leak detection systems, and upgrade appliances like dishwashers and washing machines.
- Outdoor Upgrades: Improve irrigation with drip systems, smart controllers, and native landscaping to cut outdoor water use by up to 75%.
- Maintenance: Regular inspections and monitoring ensure long-term efficiency and savings.
This guide outlines the steps to assess, plan, and implement retrofits while maximizing savings and minimizing waste.

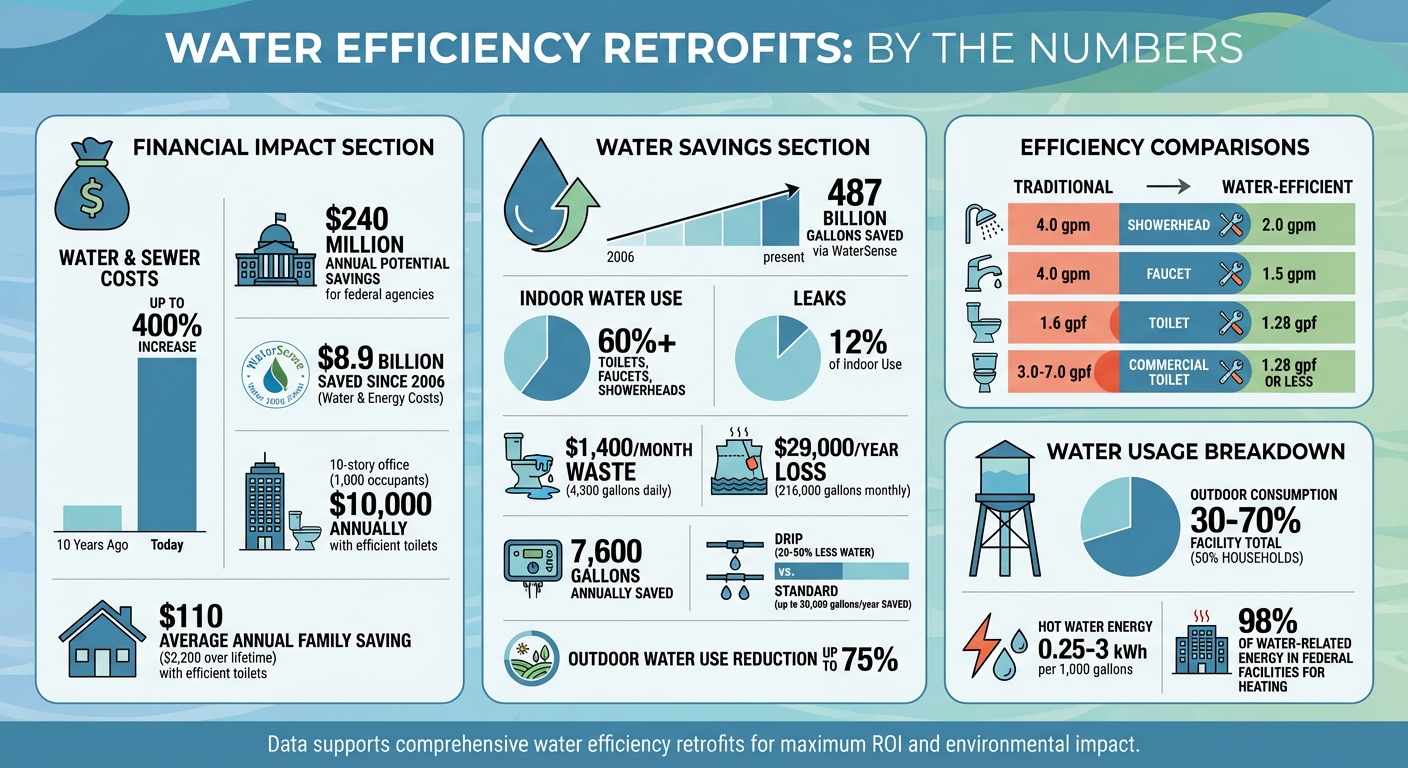

Water Efficiency Retrofit Savings and Impact Statistics
Assessing Current Water Use
Before diving into retrofitting, it’s important to understand how water is currently being used. Start by assembling a water management team – this group should include facility managers, maintenance staff, and finance personnel. Together, they’ll assess current usage, create strategies for improvement, and monitor progress over time [6].
One of the simplest ways to get started is by reviewing utility bills. Gather 12–24 months’ worth of bills to identify usage trends and seasonal fluctuations [7]. Keep an eye out for unusual spikes, which could signal leaks or equipment issues. Pair this data with a site walkthrough to inspect plumbing fixtures, cooling systems, irrigation controllers, and water-intensive equipment [7]. During the walkthrough, look for visible leaks, inefficient practices, or opportunities to collect water from sources like condensate or rainwater [7].
For deeper insights, install meters and submeters to monitor water use in specific areas like cooling towers, commercial kitchens, or irrigation zones. These don’t require separate utility accounts but provide detailed data. Modern Advanced Metering Infrastructure (AMI) can even offer hourly usage data, which is invaluable for real-time leak detection and understanding daily patterns [6]. As WaterSense aptly states:
"You can’t manage what you don’t measure" [6].
From here, evaluate specific usage patterns to identify areas where improvements can be made quickly.
How to Evaluate Water Usage
Start by combining data analysis with on-site inspections. Tools like the ENERGY STAR Portfolio Manager can help track water and energy usage, while the WaterSense Simple Water Assessment Checklist is great for spotting leaks and inefficiencies before committing to advanced technologies [8].
Develop a water balance model by comparing total water inputs (like municipal water, rainwater, or groundwater) against outputs (such as cooling towers, irrigation, or sewer discharge). Any discrepancies often point to hidden leaks [7]. Leaks are no small matter – they typically account for over 6% of total water usage [6]. For example, a large leaking toilet can waste up to 4,300 gallons daily, costing as much as $1,400 per month. Meanwhile, a stuck float valve in a cooling tower could lose 216,000 gallons monthly, adding up to $29,000 annually [6].
Focus on high-consumption areas like cooling towers, irrigation systems, and commercial kitchens. Submetering these zones can reveal inefficiencies. For cooling towers, examine Cycles of Concentration (COC) and blowdown rates to find opportunities for water recovery [7]. For irrigation, check plant types, soil conditions, and controller settings – many systems overwater by 30% to 50% because they rely on timers rather than soil moisture sensors [7]. Encourage building occupants to help by posting signs in kitchens and restrooms with maintenance contact details, urging them to report leaks immediately [6].
These efforts provide a strong foundation for selecting retrofit solutions in the next stages of the project.
Working with Utility Providers for Water Audits
Many water utilities offer audit services or resources to help you conduct assessments. Use the data and observations you’ve already collected to guide the utility audit process. Start by requesting historical billing records and asking about programs like "Fix a Leak Week", held annually in March. These programs often include tools and resources to engage staff and identify inefficiencies [6].
For facilities in areas where utilities use AMI technology, you can access hourly consumption data to spot usage trends and anomalies [6]. Some utilities even provide tools like cooling tower water savings calculators, designed to estimate potential water savings based on system size and water chemistry [7]. As Wahaso highlights:
"A proper audit doesn’t just reveal inefficiencies. It uncovers powerful opportunities for water harvesting retrofits that can reduce dependence on municipal water while saving thousands in utility costs" [7].
When working with a utility provider, share detailed system information. This includes cooling tower specifications, irrigation schedules, a list of plumbing fixtures with their flow rates, and the amount of process water used in specialized applications like labs or data centers [7]. To stay ahead of issues, configure Building Management Systems (BMS) or smart meters to send automated alerts if water flow exceeds set thresholds during off-hours. This can help catch leaks before they escalate into costly problems [6].
| Malfunction | Monthly Water Loss | Estimated Cost Impact |
|---|---|---|
| Leaking Toilet (Large) | 129,000 gallons | Up to $1,400/month |
| Drip Irrigation Malfunction | 43,200 gallons | $5,700/year |
| Stuck Cooling Tower Float Valve | 216,000 gallons | $29,000/year |
| Steam Sterilizer Line (Stuck On) | 86,400 gallons | $11,500/year |
sbb-itb-034f8e1
Indoor Water Efficiency Solutions
After assessing your water usage, it’s time to focus on indoor upgrades that can lead to noticeable water savings. Toilets, faucets, and showerheads alone account for over 60% of indoor water use [9], making them key targets for improvement. Modern low-flow technologies can cut water consumption without compromising performance [4]. These upgrades work hand-in-hand with outdoor retrofits to create a more efficient water management system for your facility.
Replacing Plumbing Fixtures
Start by replacing fixtures that see the most use. In commercial spaces, low-flow urinals often deliver the biggest savings per fixture [4]. Jeffrey Kling, a mechanical engineer at Gibbens Drake Scott, emphasizes:
"Low-flow urinals will provide the largest water savings per fixture" [4].
For toilets, switching to WaterSense-certified models can make a big impact. These models are independently tested to use at least 20% less water than standard ones [4]. For example, a 10-story office building with 1,000 occupants could save 1.2 million gallons of water and around $10,000 annually by upgrading to high-efficiency flushometer-valve toilets [9]. In residential settings, an average family could save 13,000 gallons per year by installing efficient toilets, translating to $110 annually and about $2,200 over the fixture’s lifetime [9].
| Fixture | Traditional Flow Rate | Low-Flow/WaterSense Rate |
|---|---|---|
| Showerhead | 4.0 gallons per minute (gpm) | 2.0 gpm [1] |
| Faucet | 4.0 gpm | 1.5 gpm [1] |
| Toilet | 1.6 gallons per flush (gpf) | 1.28 gpf [1] |
| Commercial Toilet | 3.0 to 7.0 gpf | 1.28 gpf or less [9] |
For sinks, faucet aerators offer a cost-effective way to cut water use without replacing the entire fixture [4]. However, before installing low-flow showerheads or faucets, check your plumbing system. Oversized pipes or long distances from the water heater may cause delays in hot water delivery, leading to wasted water [4]. Additionally, inspect mixing valves to ensure they’re compatible with the new fixtures [4].
Focus on high-traffic areas first to see a quicker return on investment [4]. Many utilities offer rebates, such as $57 for 1.28 gpf models or up to $150 for WaterSense-labeled units. Some areas even provide rebates of up to $128 for ultra-high-efficiency toilets using just 0.88 gpf [9].
Once fixtures are upgraded, protect these investments with an effective leak detection system.
Installing Leak Detection Systems
Efficient fixtures are only part of the solution – leak control is equally important. Around 12% of indoor water use is lost to leaks [9]. Smart leak detection systems and humidity sensors can identify leaks in real time, sending alerts to prevent small issues from escalating into costly problems [2]. As RENEW Energy Partners notes:
"Smart leak detection technology, as well as humidity detectors, can easily detect leaks that need to be addressed in a retrofit. In addition, they send out alerts as soon as a new leak happens, thus preventing more damage from occurring and minimizing maintenance costs" [2].
For more detailed monitoring, consider installing water submeters. These devices provide granular data on water usage, helping to pinpoint waste in areas that might otherwise go unnoticed [2]. Submeters also track real-time consumption and temperature, enabling building occupants to make informed changes to their water habits [2]. Since 2006, the WaterSense program has helped save over 487 billion gallons of water and more than $8.9 billion in water and energy costs [4].
Upgrading Water-Using Appliances
Replacing outdated water-using appliances can further enhance efficiency. High-efficiency washing machines, especially front-loading models, use significantly less water and energy than traditional top-loaders [10][13]. Similarly, ENERGY STAR-rated dishwashers outperform standard models and use less water than hand-washing [11][1].
Switching to tankless water heaters is another smart move. Unlike storage tanks, these systems heat water only when needed, reducing energy waste. They also last longer – over 20 years compared to the 10–15 years typical of storage heaters [11]. For households using up to 41 gallons of hot water daily, tankless heaters are 24% to 34% more energy-efficient. Even homes with higher usage (around 86 gallons per day) can see an 8% to 14% improvement in efficiency [11].
To protect appliances from scale buildup, consider installing salt-free water softeners. Just a quarter-inch of scale can lower heating efficiency by up to 40% [12]. When purchasing new appliances, always look for the ENERGY STAR label [10][11]. If your refrigerator was made before 2001, replacing it can deliver immediate savings [13]. Utilities often provide rebates, such as $100 to $285 for ENERGY STAR clothes washers and $36 to $50 for dishwashers [9].
Outdoor Water Efficiency Upgrades
Taking water-saving efforts outdoors can make a big impact on reducing overall water usage. Outdoor water consumption often represents 30% to 70% of a facility’s total water use [18]. For households, this number can climb to 50%, primarily due to landscaping needs [17]. By upgrading irrigation systems and rethinking landscape design, seasonal outdoor water use can drop by as much as 75% [20].
Improving Irrigation Systems
Traditional irrigation systems often waste water through overspray, evaporation, and poorly timed watering cycles. Smart irrigation controllers, which adjust schedules based on weather data like temperature, solar radiation, and soil moisture, can save nearly 7,600 gallons of water annually [14].
Drip irrigation is another game-changer. By delivering water directly to plant roots, it achieves up to 90% efficiency and uses 20% to 50% less water than standard sprinklers. For a single property, this can mean savings of up to 30,000 gallons per year [15]. Drip systems are especially effective for trees, shrubs, and flower beds, eliminating the waste caused by spray heads. The Texas Commission on Environmental Quality advises:
"Irrigation systems shall not spray water on or over any surfaces made of impervious material including but not limited to concrete, asphalt, brick, wood, stones set with mortar, walls, fences, sidewalks, and streets" [14].
High water pressure is another culprit, causing up to 25% water loss by atomizing water into mist [14]. Simple solutions like inline pressure reducers (priced between $10 and $40) [16] or pressure-compensating spray heads ensure water is delivered effectively. Switching from traditional pop-up spray heads to rotor-style sprinklers can further cut water flow by 40% to 50% [16].
Additional upgrades like rain and freeze sensors can prevent irrigation during unsuitable weather, often paying for themselves within just three months during wet seasons [14]. For larger facilities, flow sensors can detect broken pipes or malfunctioning nozzles, shutting off affected zones automatically. Timing also matters – watering early in the morning (before 10 AM) reduces evaporation, while the cycle-and-soak method prevents runoff on steep slopes by breaking up watering into shorter intervals.
But irrigation is only part of the equation. Pairing these upgrades with smart landscape design takes water conservation even further.
Designing Water-Efficient Landscapes
Even the most advanced irrigation system can’t make up for inefficient landscape design. Grouping plants with similar water needs, a practice called hydrozoning, helps avoid overwatering low-water species. Studies show that many homeowners apply twice as much water as their landscapes actually require [16].
Replacing nonfunctional turf areas – like narrow strips under 8 feet wide, steep slopes, or irregular corners – with native plants can dramatically reduce water use. Native perennials, for example, have a 92% survival rate without supplemental irrigation by their third year, compared to just 45% for traditional ornamental plants [20].
Adding 3 to 4 inches of mulch around plants has multiple benefits: it reduces soil evaporation by 40% to 60%, keeps soil cooler by 10°F to 15°F during summer, and helps retain moisture [20]. Amending soil to improve its ability to hold water and conducting percolation tests before planting can further optimize water use. For drought-tolerant landscaping, aim for soil that drains within 2 to 4 hours when tested.
Here’s a look at some water-saving plant swaps:
| High-Water Plant | Drought-Tolerant Alternative | Benefit |
|---|---|---|
| Kentucky Bluegrass | Buffalograss or Blue Grama | Requires less water; thrives in hot conditions |
| Garden Chrysanthemum | Aromatic Aster | Tougher, with added seasonal color |
| Karl Foerster Grass | Little Bluestem | Native, with winter interest |
| Garden Phlox | Jerusalem Sage | Lower irrigation needs; adds unique textures |
By adopting water-wise landscaping, a typical 1,200-square-foot garden can save around 2,400 gallons of water annually [20]. That translates to savings of $185 to $340 on water bills each year [20]. Many local water agencies also offer turf replacement rebates, often ranging from $2 to $4 per square foot [19]. Keep in mind, though, that even drought-tolerant plants need consistent watering during their first 1 to 2 years to establish strong roots.
When combined with efficient irrigation, these design strategies create a comprehensive approach to outdoor water conservation, ensuring long-term savings and sustainability.
Planning and Budgeting for Retrofit Projects
Water efficiency retrofits require thoughtful financial planning to ensure measurable results. Accurate cost estimates and clearly defined objectives are key to making retrofitting projects financially viable. Building on the initial assessment, precise planning lays the groundwork for success.
Defining Project Objectives
Start by setting measurable goals using water data from utility bills and submeters. Rachel Sowards, Practice Area Manager at Paladino and Company, highlights the value of submeters:
"Water submeters can help break out your usage in more detail than your utility bill alone" [4].
This detailed breakdown can pinpoint whether irrigation, HVAC cooling towers, or plumbing fixtures are driving water costs. With this insight, you can focus on areas with the highest potential impact.
Financial targets are crucial. Many simple fixture upgrades pay for themselves in less than a year [4], making payback periods an essential metric. For larger facilities, consider additional goals like improving resilience to water scarcity or achieving LEED certification [21]. The type of building also influences returns – hotels and dormitories often benefit quickly from showerhead retrofits, while large commercial buildings see the most savings with cooling tower or irrigation upgrades [4][21].
Make sure your objectives comply with local plumbing codes (ASSE, IAPMO, IPC, AWWA) and any regional rules regarding stormwater or greywater use [4]. With utility rates rising, setting ambitious but achievable reduction goals can also help shield against future cost increases.
Once your goals are defined, the next step is to calculate project costs and potential savings.
Calculating Costs and Savings
Organize your budget into key categories. Labor typically accounts for 18% to 35% of total costs, materials make up 17.5% to 25%, and major plumbing systems contribute about 12.5% [5]. Commercial retrofits usually range from $30 to over $300 per square foot, depending on the complexity of the project [5].
Don’t overlook sewer charges in your ROI calculations. These costs often match or even exceed water consumption charges, potentially doubling your utility bill [23]. Additionally, hot water savings impact energy costs, as Sowards explains:
"Because hot water takes energy to produce, there’s a direct correlation between your water and energy bills" [4].
Water purification processes require between 0.25 and 3 kWh per 1,000 gallons, so reducing water use directly lowers energy consumption [4].
Examples from real projects illustrate the potential savings. A 700,000-sq-ft high-rise in San Francisco saved about $160,000 annually with a blackwater reuse system. In San Diego, a 500-unit residential high-rise achieved $200,000 in yearly savings by recycling water for laundry and toilet flushing [21]. Similarly, a 400-unit mixed-use high-rise in Austin, Texas, saved between $150,000 and $200,000 annually by recycling water for cooling towers, laundry, and toilet flushing [21].
Look into utility rebate programs and federal tax incentives like Section 179D, which offers up to $5+ per square foot for energy-efficient commercial building upgrades [5]. For instance, a hospital expansion in Texas secured $82,643 in incentives through Entergy Texas, resulting in estimated annual savings of over 2.4 million kWh [5]. Including these incentives in your planning phase can significantly reduce payback periods and improve a project’s financial outlook.
In Texas, working with experienced design-build contractors such as E3 Design-Build Contractor can help ensure compliance with local codes and maximize available incentives as part of a comprehensive retrofit plan.
Implementing Water Efficiency Retrofits
Once your assessments and budgets are in place, it’s time to move on to the actual implementation. This phase hinges on selecting the right products and ensuring a smooth installation process that minimizes disruptions and delivers quality results.
Selecting Retrofit Products
Start by prioritizing WaterSense-labeled fixtures. These fixtures are at least 20% more efficient than standard models and undergo third-party testing to guarantee performance [4]. They’re a reliable choice for balancing efficiency with functionality.
Before making any purchases, double-check that your chosen products are compatible with your existing systems. Pay special attention to water pressure (20–80 PSI) and fixture placement to avoid installation headaches [3]. As Jeffrey Kling, Mechanical Engineer at Gibbens Drake Scott, notes:
"To improve delivery time, you may need to make piping modifications in non-accessible locations" [4].
When upgrading lavatories or showers, don’t overlook the mixing valves. These need to meet the minimum flow rate requirements for low-flow fixtures [4]. Also, think about how the products align with your facility’s usage patterns. For instance, flush valve and pressure-assisted toilets often perform better than gravity-fed models because they use system pressure to enhance flushing [3]. On the other hand, waterless urinals, while simpler in design, require regular trap liquid replacement to function properly [3].
Keep in mind that federal standards mandate commercial toilets manufactured after January 1, 1997, use no more than 1.6 gallons per flush, and urinals must not exceed 1.0 gallon per flush [3]. Always ensure that your selections comply with these standards and local plumbing codes [4].
Once you’ve chosen the right products, the next step is planning an installation process that maintains the integrity of your systems.
Managing the Installation Process
Before any work begins, coordinate with utility providers. Many utility programs offer rebates and incentives, but these often require pre-inspections to confirm eligibility [5]. Following the proper enrollment and verification steps can lead to substantial savings [5].
Plan the installation in phases to minimize disruptions to occupants and avoid unnecessary relocation costs [22]. While many water efficiency retrofits are straightforward one-to-one replacements [4], be prepared for potential modifications to waste piping, especially when installing low-flow fixtures [4].
Take advantage of the retrofit process to install smart meters and leak detectors. These tools provide real-time monitoring and can help catch issues early on [2]. Additionally, train your maintenance team on any new technologies, such as sensor-activated faucets or waterless urinals, to ensure long-term performance [3].
Working with experienced design-build contractors can make the process much smoother. These professionals are often well-versed in local codes and utility programs. For example, contractors like E3 Design-Build Contractor in Texas specialize in helping public facilities meet compliance requirements while maximizing incentives.
Once the installations are complete, ongoing monitoring and maintenance will be key to sustaining water efficiency over time.
Monitoring and Maintaining Water Systems
Once retrofits are installed, the job isn’t over. To keep those systems running efficiently and delivering savings, ongoing monitoring and maintenance are crucial.
Measuring Water Savings
To verify water savings accurately, you’ll need to choose the right Measurement and Verification (M&V) method. Facility managers typically use one of these four approaches:
- Option A (Retrofit Isolation): Focuses on specific systems using engineering analysis and limited data collection.
- Option B (System-Level Approach): Measures performance at the component level for more precise results.
- Option C (Whole-Building Verification): Tracks total facility water use with utility meters and regression modeling, comparing usage to a baseline. This method works best when savings exceed 10% to 15% of the total metered consumption [24].
- Option D (Calibrated Simulation): Uses computer models to evaluate complex, multi-system retrofits.
For detailed tracking, consider installing submeters on high-use systems like irrigation, cooling towers, or commercial kitchens. Submeters allow for leak detection and detailed system analysis. Statistical adjustments for factors like weather, occupancy, and operational changes can also help maintain an accurate baseline.
Once you’ve quantified the savings, the next priority is keeping the systems in top shape through consistent maintenance.
Creating Maintenance Schedules
A well-thought-out maintenance schedule combines regular inspections with quick fixes when needed. Here are some key practices:
- Tank Toilets: Add food coloring to the tank annually to check for leaks. If the color appears in the bowl within 10 minutes, the flapper valve likely needs replacing.
- Flush and Faucet Sensors: Calibrate automatic sensors every 6 to 12 months to avoid issues like phantom flushing.
- Irrigation Systems: Inspect monthly during the active season for standing water, broken sprinkler heads, or misaligned nozzles.
Annual pressure testing is also critical. If system pressure exceeds 60 psi, install a pressure-reducing valve at the main meter to protect fixtures and maintain proper flow [25]. Every three years, hire a certified auditor to conduct a full irrigation audit, aiming for at least 65% distribution uniformity [25].
Posting clear signs in restrooms and kitchens with instructions for reporting leaks or faulty equipment can also make a big difference. Engaging occupants and staff helps catch small issues before they turn into major problems.
| System/Equipment | Maintenance Task | Recommended Frequency |
|---|---|---|
| Flushometer Valves | Check for long flush cycles (>6 seconds) and inspect gaskets | Annually |
| Tank Toilets | Test for flapper leaks and check overflow tube levels | Annually |
| Faucets & Showers | Inspect for leaks and damaged aerators/flow restrictors | Every 6 months |
| Irrigation Systems | Look for standing water and inspect sprinkler heads | Monthly (during season) |
| Commercial Kitchens | Check ice machines, steam cookers, and dishwashers for leaks | Every 6 months |
| Pressure Washers | Inspect sprayers, hoses, and shutoff valves for leaks | Every 6 months |
Conclusion
Water efficiency retrofits bring a host of measurable advantages. For instance, financial savings can be immense – federal agencies alone could save up to $240 million annually with moderate improvements in water efficiency. Since its inception in 2006, WaterSense has demonstrated the power of strategic water management, saving 487 billion gallons of water and over $8.9 billion in associated costs [3][4].
The connection between water and energy use is undeniable. Treating and purifying water to potable standards consumes between 0.25 and 3 kWh of electricity per 1,000 gallons [4]. Meanwhile, in federal facilities, about 98% of water-related energy usage goes toward heating [3]. By reducing water consumption, facilities can lower energy demand, cut greenhouse gas emissions, and alleviate pressure on aging infrastructure. These combined benefits make water efficiency a critical step toward sustainability.
Achieving long-term water efficiency requires dedication. Regular monitoring, proactive maintenance, and staff training ensure systems operate at their best. Submeters play a key role in pinpointing waste that standard utility bills might overlook, and leak detection systems can prevent expensive damages before they escalate. As highlighted in this guide, every phase – from initial assessment to ongoing maintenance – contributes to creating a resilient and efficient water system.
The benefits are clear, and the savings are real. Public facilities looking for expert guidance can turn to E3 Design-Build Contractor (https://e3es.com). With extensive experience working with school districts, healthcare systems, and municipalities across Texas, they specialize in integrating water efficiency measures into larger energy management projects, maximizing both environmental benefits and financial returns.
FAQs
Which retrofits pay back the fastest?
Low-flow fixtures, such as urinals, toilets, and showerheads, are known for their quick return on investment. These upgrades often pay for themselves in as little as a few months to a couple of years, making them an economical way to boost water efficiency.
Do I need submeters before upgrading fixtures?
Installing submeters before upgrading fixtures is a smart move for keeping tabs on water usage. Submeters give you detailed data about where and how much water is being used, making it easier to spot areas with high consumption or waste. Plus, they allow you to measure the actual savings after installing upgrades like low-flow toilets or aerators. This ensures that your investments in water-efficient fixtures deliver the reductions you’re aiming for. Submeters are a key tool for making water efficiency retrofits more effective.
How do I maintain savings after a retrofit?
To keep savings intact after a water efficiency retrofit, it’s essential to focus on consistent monitoring and upkeep. Use submeters to track water usage, which can help you spot leaks or inefficiencies quickly. Regularly inspect plumbing fixtures, valves, and pipes to catch any issues before they lead to waste. Set up a preventive maintenance schedule for your water systems, and make sure your team is trained in water management practices. These steps can help ensure your efficiency efforts stay effective over time.
