Upgrading Electrical Systems in Healthcare Facilities

test :

When hospitals rely on outdated electrical systems, patient safety is at risk. Modernizing these systems is critical to ensure uninterrupted power for life-saving equipment like ventilators and surgical tools. Hospitals consume 68% of all U.S. healthcare electricity, and upgrades can improve safety, reduce downtime, and support advanced medical technologies. Here’s what you need to know:

Why Upgrade? Aging systems increase the risk of power failures, fires, and inefficiency. Modern systems reduce maintenance needs and support new tech.
Key Components: Hospitals use specialized power setups like Essential Electrical Systems (EES) with life safety, critical, and equipment branches to ensure reliable power distribution.
Emergency Power: Backup systems, including generators, automatic transfer switches (ATS), and uninterruptible power supplies (UPS), are vital for continuous operation.
Regulations: Compliance with NEC Article 517, NFPA 99, and NFPA 110 ensures safety and reliability in patient care areas.
Energy Efficiency: Upgrades like LED lighting and building automation cut energy use and operational costs while improving functionality.
Implementation: Phased upgrades minimize disruptions, using detailed planning and temporary power solutions to keep hospitals operational.

Proper planning, compliance, and phased execution are essential for safe and efficient upgrades that meet modern healthcare demands.

Electrical contractor series working in healthcare facilities: Understanding the electrical system

Main Components of Healthcare Electrical Systems

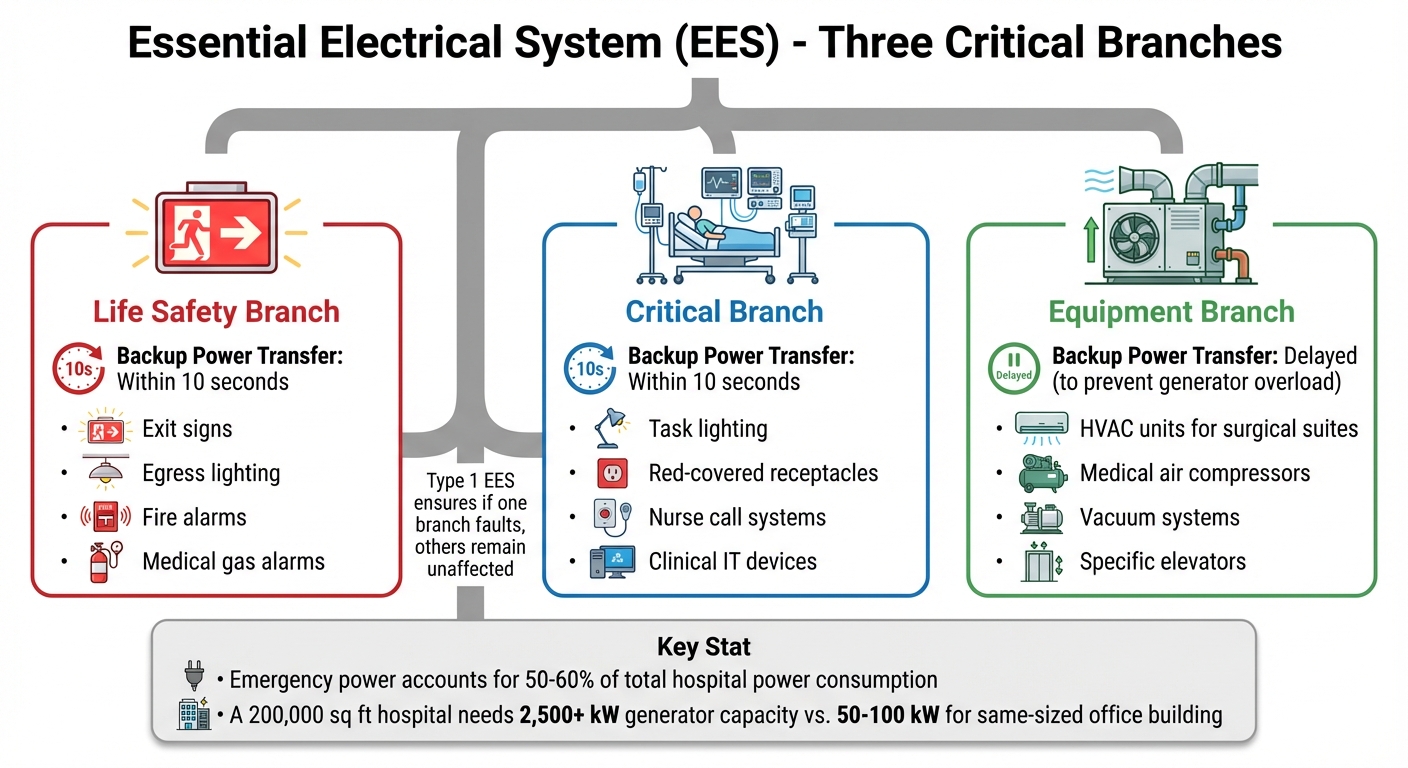

Essential Electrical System (EES) Branches in Healthcare Facilities

Understanding the main components of hospital electrical systems is key to planning effective upgrades. Unlike standard commercial buildings, healthcare facilities rely on a specialized infrastructure called the Essential Electrical System (EES). This network of alternate power sources and distribution systems ensures uninterrupted power, even during outages, which is critical for keeping life-support equipment running ^[6].

For example, a 200,000-square-foot hospital might need generator capacity of 2,500 kW or more, compared to just 50–100 kW for an office building of the same size. In many hospitals, emergency power accounts for 50–60% of the facility’s total power consumption ^[7].

Life Safety, Critical, and Equipment Branches

In facilities with critical care areas, a Type 1 EES divides power distribution into three separate branches. This design ensures that if one branch experiences a fault, the others remain unaffected.

Life Safety Branch: This branch powers systems essential for evacuation and safety, such as exit signs, egress lighting, fire alarms, and medical gas alarms. These systems must activate within 10 seconds of a power failure ^[4]^[7].
Critical Branch: This branch supports patient care areas by powering equipment like task lighting, red-covered receptacles, nurse call systems, and clinical IT devices. Like the Life Safety Branch, it also transfers to backup power within 10 seconds ^[4]^[7].
Equipment Branch: This branch handles the facility’s mechanical systems, including HVAC units for surgical suites, medical air compressors, vacuum systems, and specific elevators. Its backup power transfer is intentionally delayed to avoid overloading the generators during startup ^[4]^[7].

"Mechanical and electrical systems act as vital organs to a hospital, providing power, water, fresh air and other important elements that keep the hospital running efficiently and safely."
– Ed Sartell, President, Sartell Electrical Services ^[7]

These branches form the backbone of a hospital’s resilience, ensuring the facility can handle emergencies without compromising critical operations.

Emergency Power Systems

Hospitals depend on robust emergency power systems to maintain continuous operations during outages. On-site generators, typically diesel-powered, are the most common backup power source. However, modern facilities are increasingly adopting fuel cells and battery energy storage systems ^[1]. These generators must comply with a Class 96 rating, which means they must have enough fuel stored for 96 hours or a verified delivery plan for that duration ^[8].

Automatic Transfer Switches (ATS) are integral to emergency power systems. They monitor power quality and seamlessly switch from utility to backup power during an outage. Many newer ATS models include bypass isolation, allowing maintenance and testing without interrupting critical power ^[8]. Regular load testing ensures these systems can restore power within the required 10-second window.

To further ensure uninterrupted power, Uninterruptible Power Supplies (UPS) are used. These systems provide immediate backup power, bridging the gap between a utility failure and generator startup. This ensures that sensitive medical equipment remains operational without even a momentary disruption.

In wet procedure areas, where liquids are present or patients are intentionally wetted, Isolated Power Systems (IPS) are installed. These prevent circuit breakers from tripping during a ground fault, which is a risk in these environments. Standard GFCIs are avoided to eliminate the chance of nuisance tripping.

Healthcare facilities also prioritize redundant grounding for added safety. This involves using both a dedicated insulated grounding conductor and a metallic raceway to protect patients from microshock hazards. Additionally, all receptacles in patient care areas are hospital-grade, identified by a green dot, to ensure superior durability and reliable grounding ^[4].

Regulatory Compliance and Standards

Upgrading electrical systems in healthcare facilities comes with a unique set of challenges due to stringent codes and standards. Key among these are NEC Article 517, NFPA 99, and NFPA 110. Understanding how these codes interact is crucial for any successful modernization effort.

National Electrical Code (NEC) Article 517

NEC Article 517 outlines the installation standards for electrical systems in healthcare settings. As Mike Holt, a recognized NEC expert, puts it: "Article 517 provides the requirements for health care facility areas where patients are examined and treated." ^[9]

One of the core requirements of Article 517 is redundant grounding in patient care areas to reduce electrical hazards. This grounding, along with specific receptacle requirements, forms the backbone of a hospital’s electrical safety and reliability.

Receptacle requirements vary by patient care category:

General care areas (Category 2): At least 8 receptacles per bed location
Critical care areas (Category 1): A minimum of 14 receptacles per bed location
Operating rooms: A whopping 36 receptacles are required ^[10]

In older facilities, meeting these requirements often means installing additional circuits and distribution panels.

Another critical aspect of Article 517 is its ground-fault protection selectivity rules (Section 517.17). These ensure that a fault in one part of the system doesn’t cause a complete shutdown. For instance, a fault at the feeder level should only trip the feeder breaker, leaving the main service protector intact ^[11].

While NEC Article 517 focuses on installation details, NFPA 99 and NFPA 110 address performance expectations and emergency power systems.

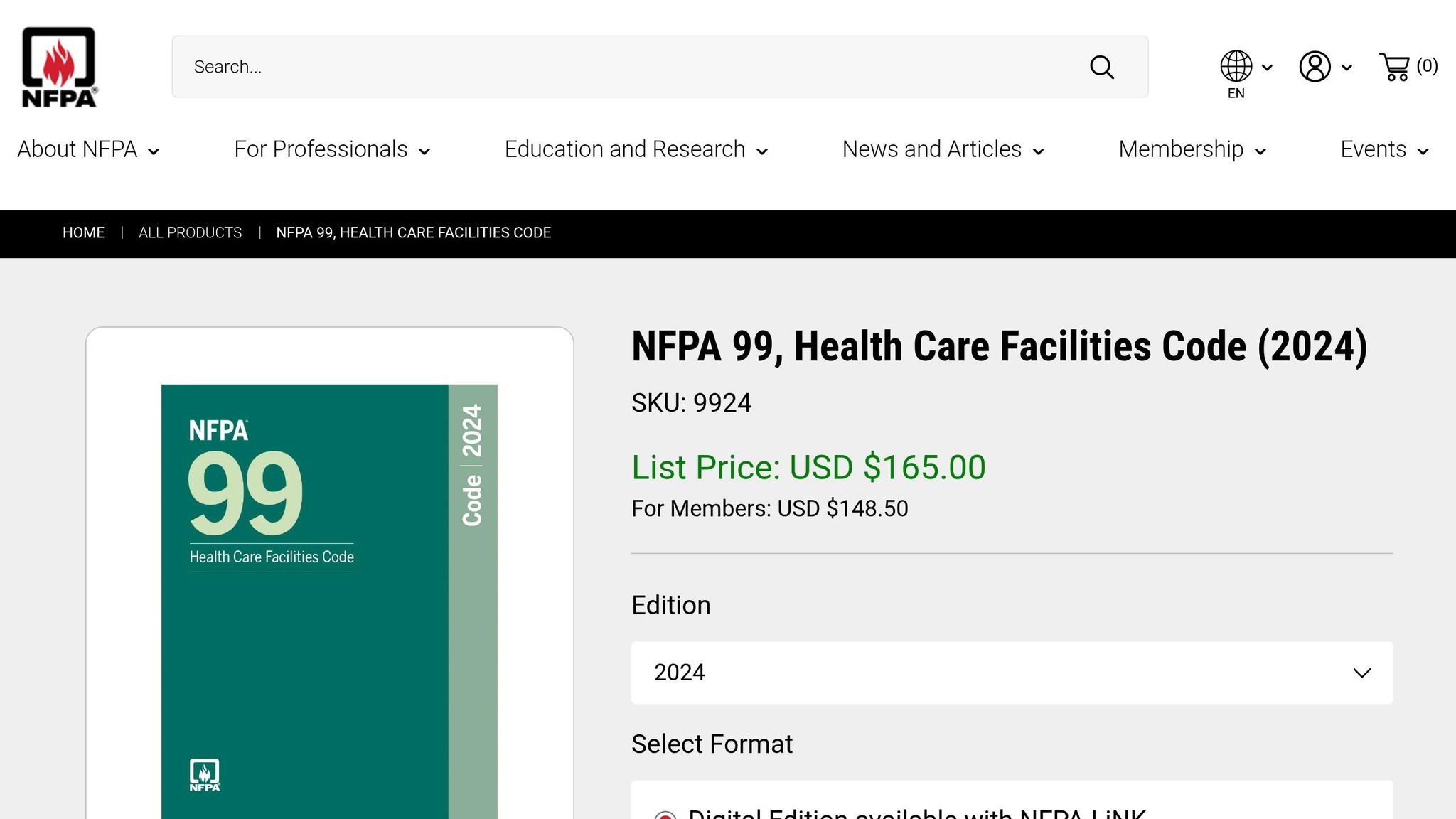

NFPA 99 and NFPA 110

NFPA 99, also known as the Health Care Facilities Code, establishes performance standards for electrical systems in healthcare environments. It uses a risk-based approach to categorize spaces:

Category 1: Critical care areas where failure could result in death
Category 4: Support areas with no direct patient impact ^[13]

These categories determine the type of Essential Electrical System (EES) required and the speed at which backup power must activate.

NFPA 110, on the other hand, governs emergency power systems like generators, fuel storage, and transfer switches. Connor Frazier, PE, an electrical engineering lead at HGA, explains:

"NFPA 99 is the parent code and is intended to address the design of electrical systems in health care facilities, while NFPA 110 governs the installation, design and maintenance of emergency and standby power systems." ^[14]

NFPA 110 mandates:

Monthly generator testing at a minimum of 30% capacity
Comprehensive 4-hour load testing every three years ^[11] ^[12]
Backup systems that restore Life Safety and Critical branches within 10 seconds (the "10-second rule") and Equipment branches within 60 seconds ^[10] ^[11] ^[12]

These systems must be supported by automatic transfer switches and sufficient fuel storage (72–96 hours of diesel fuel) to ensure uninterrupted operation during emergencies ^[12].

Together, these codes ensure healthcare facilities operate safely and reliably, even under the most challenging conditions.

Modernization Strategies and Energy Efficiency

Upgrading electrical systems in healthcare facilities isn’t just about meeting codes – it’s a chance to cut energy use and operational costs while adhering to strict healthcare standards. Hospitals, in particular, are energy-intensive, with inpatient facilities accounting for nearly 68% of all healthcare electricity use in the U.S. ^[5]. This makes modernization a smart move for both financial and environmental reasons.

The trend toward all-electric infrastructure is reshaping how upgrades are approached. Take Kaiser Permanente’s Railyards Medical Center, set to open in 2029. This 662,000-square-foot hospital aims for an energy use intensity (EUI) of 125, the lowest in the organization’s portfolio. By using air-source heat recovery chillers, thermal energy storage, and electric steam generators, the hospital is expected to cut emissions by 25% and save about 8 million gallons of water annually ^[15].

One key insight: actual facility loads often fall below 50% of current code estimates ^[5]. This opens the door to designing systems based on real, metered data instead of theoretical maximums. Thanks to machine learning, engineers can now predict hospital power system loads with error rates under 10% ^[5]. This means more efficient designs and less waste from oversized equipment. Beyond energy efficiency, modernizing central energy plants and service infrastructures is critical for long-term success.

Central Energy Plant Expansion and Service Upgrades

Expanding central utility plants starts with a detailed analysis of the existing setup – long before ordering new equipment. Engineers rely on 12-month and 30-day demand load data (multiplied by 125% per NEC 220.87) rather than outdated ‘as-built’ documents.

The Cleveland Clinic’s H Building modernization is a great example of this careful planning. Between March 2018 and April 2022, the $29.6 million project replaced six single-ended substations with two double-ended ones and upgraded three 600-kW generators to two 2,000-kW units with N+1 redundancy. Using 3D scanning and Revit modeling, the team prefabricated conduits, resulting in just one conduit relocation across the 500,000-square-foot facility. Impressively, the project came in $1.9 million under budget – a 7.5% savings – while the hospital stayed fully operational through 100 cutovers and 48 shutdowns ^[16].

"The electrical system’s design and construction were strategically phased, spanning across 10 phases. This well-organized approach allowed the project to progress smoothly and efficiently, enabling the successful integration of the new electrical systems into the existing infrastructure." – Robert Wiemels, Electrical Shop Manager, Cleveland Clinic ^[16]

Switching to all-electric systems means preparing for much higher electrical loads. Kaiser Permanente tackled this by reducing peak demand with thermal energy storage, heat recovery systems, and targeted electric steam generators, avoiding the costlier centralized steam approach ^[15].

However, current market conditions add challenges. Lead times for critical equipment like switchgear and transformers can exceed a year ^[3]. Early procurement and contingency planning are essential. Installing bypass-isolation automatic transfer switches ensures maintenance can happen without shutting down entire emergency branches – critical when dealing with long delivery windows. Beyond power systems, upgrading lighting can further boost energy efficiency.

LED Lighting and Building Automation Integration

Switching to LED lighting is one of the fastest ways to reduce energy use, cutting lighting energy consumption by 50-70% right away ^[18]. Add smart controls like occupancy sensors and daylight harvesting, and you can achieve another 20-30% in savings ^[18].

The benefits go beyond energy. LEDs generate 60% less heat than traditional lighting ^[18], which lowers cooling demands – an important factor since HVAC systems account for 40-60% of a hospital’s total energy costs ^[19]. Plus, LEDs last between 50,000 and 100,000 hours, compared to just 20,000 hours for fluorescent bulbs ^[18]. This means fewer interruptions for maintenance in critical areas.

High CRI (90+) LEDs also improve clinical outcomes by helping staff detect symptoms like jaundice or cyanosis more accurately ^[18]. Many modern LED fixtures for healthcare are designed with antimicrobial coatings and sealed housings to withstand rigorous cleaning protocols ^[18].

Building automation systems (BAS) take these upgrades further by enabling centralized monitoring and predictive maintenance. Features like automated load shedding reduce peak demand charges and prevent equipment failures. Tunable white technology (ranging from 2700K to 6500K) mimics natural daylight, which studies show can improve sleep quality and reduce delirium in ICU patients ^[18]^[3].

LED and control upgrades typically pay for themselves in 2-4 years ^[18]. Facilities can also take advantage of EPAct Section 179D deductions (up to $1.80 per square foot) and utility rebates covering 20-50% of costs ^[18].

A smart approach is to start LED retrofits in non-critical areas like administrative offices and storage spaces. This allows teams to refine their processes before moving on to high-stakes environments like surgical suites. Focus initial efforts on 24-hour nursing stations and emergency departments, where the impact of energy savings and improved lighting quality is the greatest ^[18].

Phased Implementation to Minimize Disruption

Upgrading the electrical system in an active hospital requires meticulous planning to ensure patient safety and avoid costly downtime. For context, a single operating room can generate six figures in revenue daily ^[17]. To manage this process effectively, the work must be divided into well-coordinated phases, with constant communication between project teams and clinical staff.

A key step is developing detailed one-line diagrams for every Automatic Transfer Switch (ATS) and panel. These diagrams help identify the specific load impacts on clinical, imaging, and IT systems. By focusing on individual pieces of equipment, teams can design tailored mitigation strategies instead of relying on generic fixes. This level of detail streamlines scheduling work around patient care needs.

At AdventHealth Zephyrhills in June 2024, Project Manager Jason Sneed and his team demonstrated how critical communication is to this process. They held daily meetings with medical staff and surgeons to align power transition schedules with surgical plans. To minimize disruption, two operating rooms were kept fully operational at all times for emergencies, and most work occurred between 5:00 PM and midnight ^[20].

"Temporarily shutting off power to any part of an operational hospital can have dire consequences if the work hasn’t been intricately planned out and precisely managed" – Jason Sneed ^[20]

This example highlights how technical planning and clinical scheduling must work hand-in-hand to ensure success.

Temporary power solutions also play a crucial role in reducing the impact of outages. During the Cleveland Clinic H Building upgrade (March 2018–April 2022), the project team conducted 100 cutovers and 48 shutdowns without major disruptions. By providing temporary alternate power to critical areas, outages were limited to under 30 minutes ^[16]. Most of the work was scheduled during weekend off-hours – Saturday 6:00 PM to Sunday 4:00 AM – when hospital activity was at its lowest. Advanced prefabrication methods further reduced on-site interruptions.

Tools like 3D scanning and Revit modeling allow for off-site prefabrication, which significantly minimizes disruption in the hospital environment. Danette Hauck, Senior Director of Facilities Operations and Maintenance at Cleveland Clinic, summed up the importance of this approach:

"Work together as a team; plan, plan, plan and check your plan again; and communicate, then over-communicate" – Danette Hauck ^[16]

Partnering with E3 Design-Build Contractor for Electrical System Upgrades

E3’s Expertise in Healthcare Electrical Upgrades

Since 2003, E3 has been focused on addressing the specific electrical needs of Texas healthcare facilities ^[22]. Their work is tailored to tackle regional challenges, like the 2021 Texas freeze that disrupted critical HVAC systems, by creating durable solutions that can handle local environmental stresses ^[21]. Their design-build method ensures that multiple systems work together seamlessly, enhancing reliability.

One standout project was a $3,443,809 upgrade at Goodall-Witcher Healthcare in Clifton, TX. E3 retrofitted over 1,900 LED fixtures, replaced 14 fan coil units, restored water systems, and installed a new BAS with DDC. This system integration brought greater clinical reliability and helped lower energy costs over time ^[21].

"At E3 Electric, we aim to be an extension of your team, whether you operate a hospital, imaging center, surgical center, dental office or some other medical facility." – E3 Electric ^[22]

E3 also provides round-the-clock emergency support with mobile units for Houston-area medical facilities, ensuring uninterrupted operation of life-critical equipment ^[22]. Their expertise spans medical power systems, emergency generators, telecommunications, and fire alarm systems – key elements of healthcare infrastructure.

Benefits of the Design-Build Approach

The design-build model simplifies electrical upgrades by combining design and construction into a single contract, helping healthcare facilities save time and manage costs more effectively.

E3’s integrated approach ensures that upgrades in LED lighting, HVAC, and BAS work together seamlessly. For instance, at Goodall-Witcher Healthcare, managing both design and execution allowed E3 to optimize the new DDC system, which monitors space temperatures and verifies flow across all units, including critical areas like operating and delivery rooms. This avoided the delays often seen with multiple contractors ^[21].

From a financial perspective, this approach eliminates the added costs of subcontracted work. E3 also provides up to 10 years of warranty coverage on key lighting components, offering long-term savings on maintenance ^[21]. For Texas healthcare facilities dealing with deferred maintenance, E3’s coordinated upgrades address electrical, lighting, and HVAC needs in one streamlined effort. This ensures safe, reliable operations for medical environments.

Conclusion: Ensuring Safe, Efficient, and Compliant Healthcare Electrical Systems

Upgrading electrical infrastructure in healthcare facilities isn’t just about keeping the lights on – it’s about ensuring patient safety and seamless operations. While the U.S. power grid boasts over 99% reliability^[1], hospitals demand nothing less than perfection. Essential Electrical Systems are built to recover quickly in critical areas like operating rooms and ICUs, where even a brief power loss can have serious consequences.

Investments in modern electrical systems pay off over time. For example, energy-efficient upgrades can cut electricity use in hospitals by up to 20%, and advanced medium voltage switchgear can extend maintenance intervals from 1–3 years to as much as 10 years^[2]^[7]. Considering inpatient hospitals consume nearly 68% of the electricity used by the U.S. healthcare sector^[5], these improvements aren’t just operationally smart – they’re financially impactful.

Compliance is a constant priority. Facilities are required to conduct monthly generator load tests, regularly inspect Automatic Transfer Switches, and maintain precise records for audits^[4]. Following standards like NEC Article 517 and NFPA 99 ensures patient care areas are equipped with the right safety measures, including redundancy and grounding systems tailored to risk levels.

Planning for the future is equally important. Systems designed with scalability and modularity in mind allow for renovations without major disruptions^[3]. This is especially crucial since lead times for essential equipment like transformers and switchgear can stretch beyond a year^[3]. Proactively modernizing systems helps avoid costly downtime caused by emergency replacements.

The design-build approach simplifies these complex projects by integrating electrical, lighting, HVAC, and automation systems under one contract. E3 Design-Build Contractor’s model illustrates how this streamlined method ensures all components work together seamlessly, keeping hospital operations uninterrupted and efficient.

FAQs

How do I know if our hospital’s electrical system is outdated?

When evaluating your hospital’s electrical system, start by looking at the age of the infrastructure. Older systems can pose risks to safety and reliability, making them a potential liability. Next, review the maintenance history – frequent breakdowns or repairs might be red flags indicating deeper issues that need attention.

Another crucial aspect is compliance with standards like NFPA (National Fire Protection Association). Ensuring your system meets these guidelines is essential for both safety and legal adherence.

Finally, consider whether your system includes modern features like remote monitoring and automation. These advancements not only improve operational efficiency but also enhance safety, particularly in critical areas such as operating rooms. An outdated system doesn’t just hinder performance – it could jeopardize patient care and regulatory compliance.

What’s the difference between EES life safety, critical, and equipment branches?

The Essential Electrical System (EES) in healthcare facilities is divided into three branches: life safety, critical, and equipment. Each branch plays a specific role in maintaining safety and operational reliability.

Life safety: This branch powers systems crucial for evacuation and emergency response, such as egress lighting, exit signs, and fire alarms. These ensure safe movement during emergencies.
Critical: Dedicated to patient care, this branch supports vital equipment and lighting in treatment areas, ensuring that medical procedures can continue without interruption.
Equipment: This branch handles systems necessary for hospital operations that don’t directly involve life safety. Examples include auxiliary equipment that keeps the facility running smoothly.

Each branch is essential to the overall functionality and safety of healthcare environments, ensuring they operate effectively even during power disruptions.

How can we upgrade electrical systems without disrupting patient care?

Upgrading electrical systems in healthcare facilities demands meticulous planning to ensure patient care remains uninterrupted. Here are some essential steps to consider:

Install redundant power systems: Emergency generators and uninterruptible power supplies (UPS) are crucial for keeping life-saving equipment running during upgrades.
Time upgrades carefully: Schedule work during low-occupancy periods or designated maintenance windows to minimize disruption.
Adhere to safety standards: Follow guidelines outlined in NFPA 99 and NFPA 110 to maintain compliance and ensure safety throughout the process.
Collaborate with hospital staff: Work closely with healthcare teams to create detailed plans that include temporary power solutions and clear safety protocols.

These measures help maintain a safe and functional environment while upgrading essential systems.
